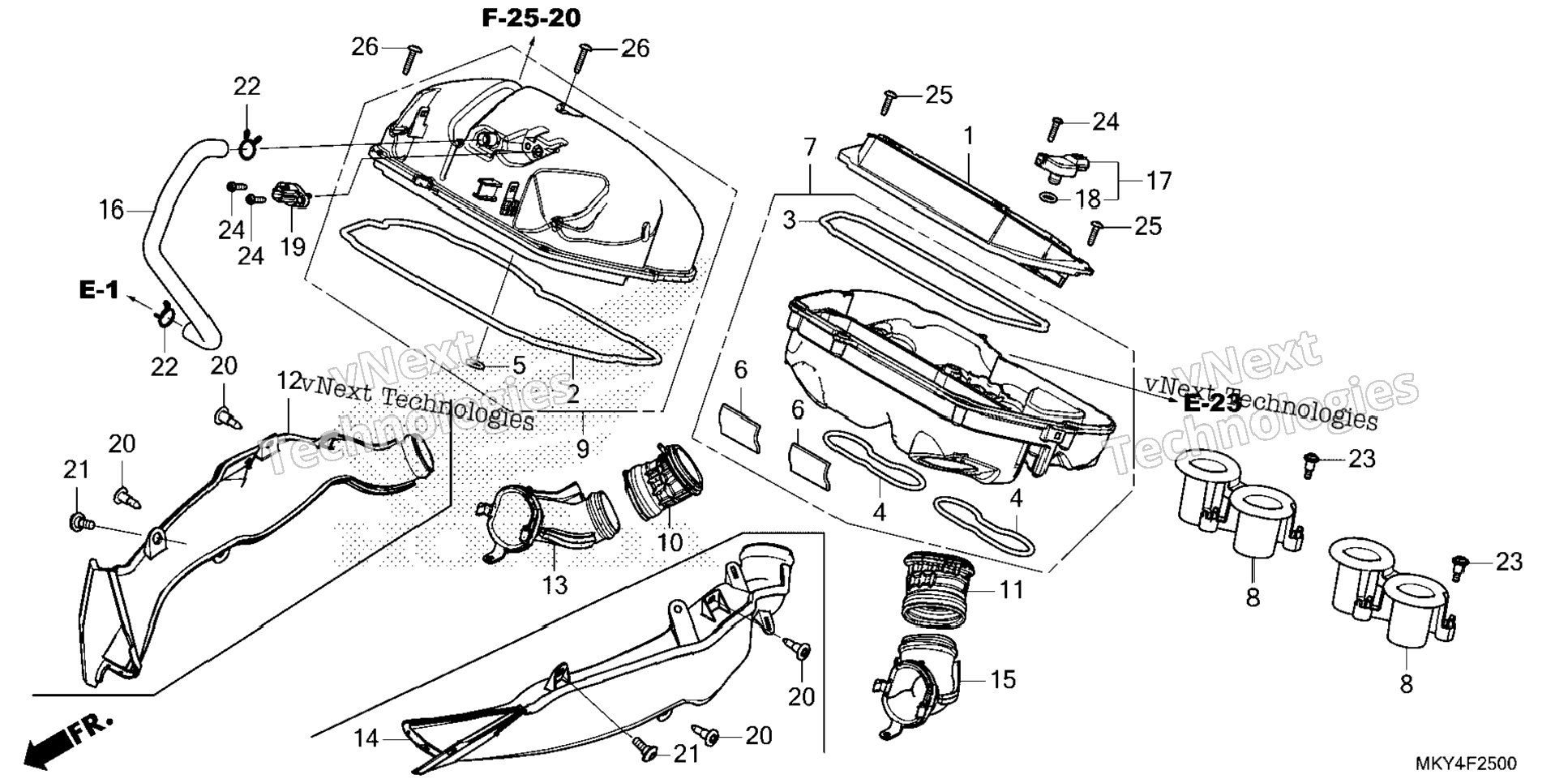

| 1 | 17210-MKN-D50 | ELEMENT, AIR CLEANER | 1 шт. | — | |
|
| 2 | 17213-MKN-D50 | SEAL, AIR CLEANER | 1 шт. | — | |
|
| 3 | 17214-MKN-D50 | SEAL, AIR CLEANER ELEMENT | 1 шт. | — | |
|
| 4 | 17215-MJE-D00 | SEAL, THROTTLE BODY | 2 шт. | — | |
|
| 5 | 17216-MJE-D00 | SEAL, CENTER BOSS | 1 шт. | — | |
|
| 6 | 17217-MJE-D00 | RUBBER, CUSHION | 2 шт. | — | |
|
| 7 | 17224-MKN-D51 | CASE SUB-ASSY., AIR CLEANER | 1 шт. | — | |
|
| 8 | 17225-MJE-DB0 | FUNNEL, AIR | 2 шт. | — | |
|
| 9 | 17235-MKN-D50 | COVER SUB-ASSY., AIR CLEANER | 1 шт. | — | |
|
| 10 | 17241-MKN-D50 | JOINT, R. AIR CLEANER DUCT | 1 шт. | — | |
|
| 11 | 17242-MKN-D50 | JOINT, L. AIR CLEANER DUCT | 1 шт. | — | |
|
| 12 | 17243-MKN-D10 | DUCT, R. AIR CLEANER | 1 шт. | — | |
|
| 13 | 17244-MKN-D10 | DUCT, L. AIR CLEANER | 1 шт. | — | |
|
| 14 | 17265-MKN-D52 | TUBE, BREATHER | 1 шт. | — | |
|
| 15 | 37830-RGA-006 | SENSOR ASSY., MAP | 1 шт. | — | |
|
| 16 | 37875-RGA-006 | O-RING (Honda Code 8954919) | 1 шт. | — | |
|
| 17 | 37880-KWW-C01 | SENSOR ASSY., AIR TEMPERATURE | 1 шт. | — | |
|
| 18 | 90116-SP0-003 | CLIP, BUMPER SEAL | 4 шт. | — | |
|
| 19 | 90134-KPP-T00 | SCREW, PAN (5X14) | 2 шт. | — | |
|
| 20 | 90646-657-000 | CLIP, AIR HOSE (16MM) | 2 шт. | — | |
|
| 21 | 91508-MM5-000 | SCREW, PAN (5MM) | 6 шт. | — | |
|
| 22 | 93901-25420 | SCREW, TAPPING (5X20) | 3 шт. | — | |
|
| 23 | 93903-25480 | SCREW, TAPPING (5X20) | 2 шт. | — | |
|
| 24 | 93903-25510 | SCREW, TAPPING (5X25) | 9 шт. | — | |
|
