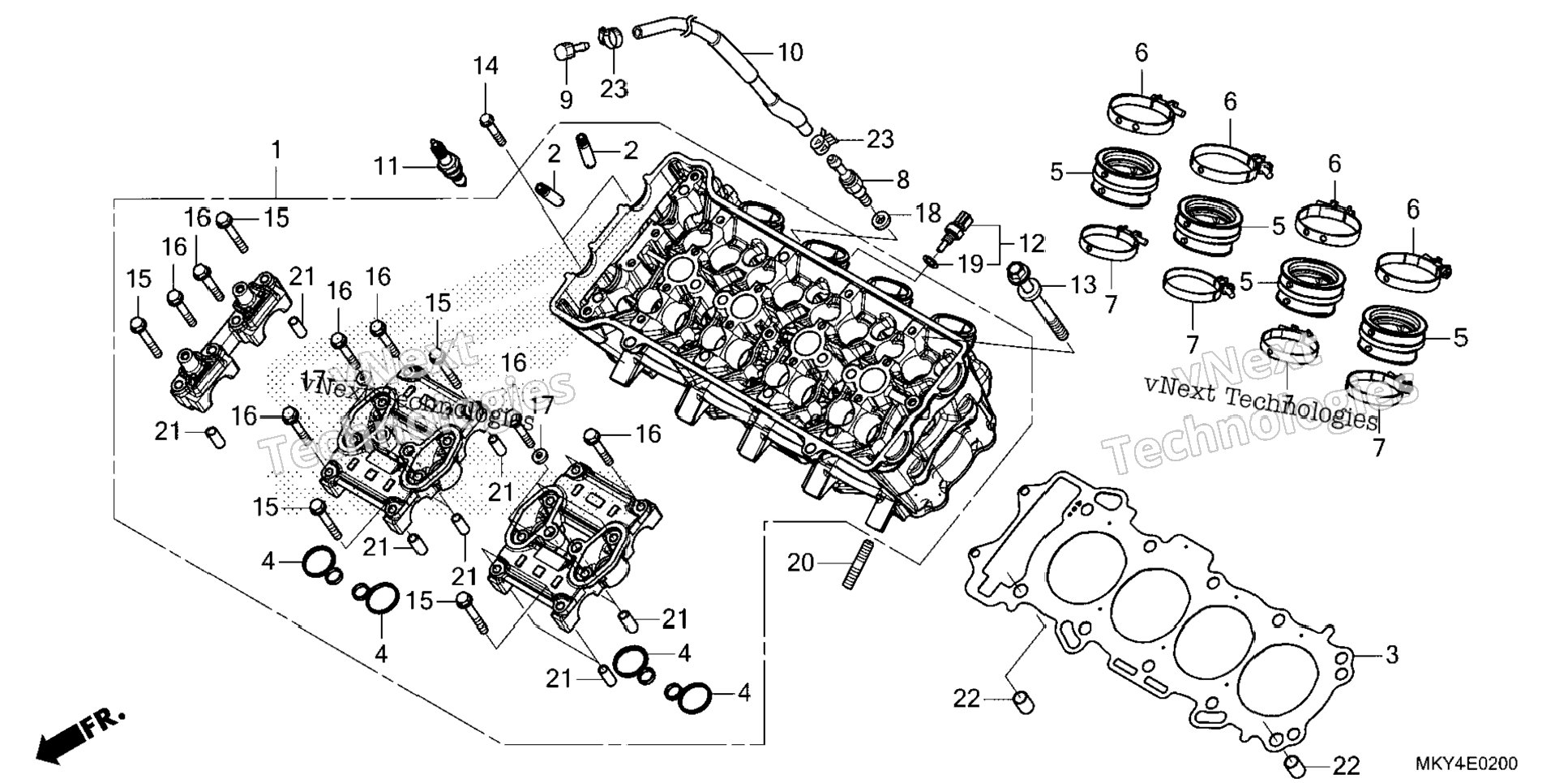

| 1 | 12010-MKY-D10 | CYLINDER HEAD ASSY. | 1 шт. | — | |
|
| 2 | 12205-KYJ-305 | GUIDE, EX. VALVE (OVER SIZE) (INLET SIDE) | 16 шт. | — | |
|
| 3 | 12251-MJE-D01 | GASKET, CYLINDER HEAD | 1 шт. | — | |
|
| 4 | 12395-MBW-003 | GASKET, PLUG HOLE | 4 шт. | — | |
|
| 5 | 16211-MKN-D10 | INSULATOR, THROTTLE BODY | 4 шт. | — | |
|
| 6 | 16217-MJE-D00 | BAND A, INSULATOR | 4 шт. | — | |
|
| 7 | 16218-MJE-D00 | BAND B, INSULATOR | 4 шт. | — | |
|
| 8 | 19410-MJE-D00 | JOINT, BLEEDING | 1 шт. | — | |
|
| 9 | 19509-MKN-D10 | PLUG, RADIATOR DRAIN | 1 шт. | — | |
|
| 10 | 19510-MKN-D10 | HOSE, WATER BREATHER | 1 шт. | — | |
|
| 11 | 31912-MFL-003 | SPARK PLUG (IMR9E-9HES) (NGK) | 4 шт. | — | |
|
| 12 | 37870-KZR-601 | SENSOR ASSY., WATER TEMPERATURE | 1 шт. | — | |
|
| 13 | 90007-MGZ-J00 | BOLT-WASHER (9X100) | 10 шт. | — | |
|
| 14 | 90011-MGZ-J00 | BOLT, FLANGE (6X35) | 2 шт. | — | |
|
| 15 | 90017-MA6-000 | BOLT, FLANGE (6X45.5) | 6 шт. | — | |
|
| 16 | 90019-KYJ-900 | BOLT, FLANGE (6X39.5) | 14 шт. | — | |
|
| 17 | 90463-ML7-000 | WASHER, SEALING (6.5MM) | 8 шт. | — | |
|
| 18 | 90544-439-930 | GASKET (SHOWA) | 1 шт. | — | |
|
| 19 | 91307-PLC-004 | O-RING (9.5X1.9) (PANASONIC) | 1 шт. | — | |
|
| 20 | 92900-08022-3E | BOLT, STUD (8X22) | 8 шт. | — | |
|
| 21 | 94301-08200 | PIN, DOWEL (8X20) (Honda Code 1417369) | 10 шт. | — | |
|
| 22 | 94301-12160 | PIN A, DOWEL (12X16) | 2 шт. | — | |
|
| 23 | 95002-41050-08 | CLAMP, TUBE (D10.5) | 2 шт. | — | |
|
