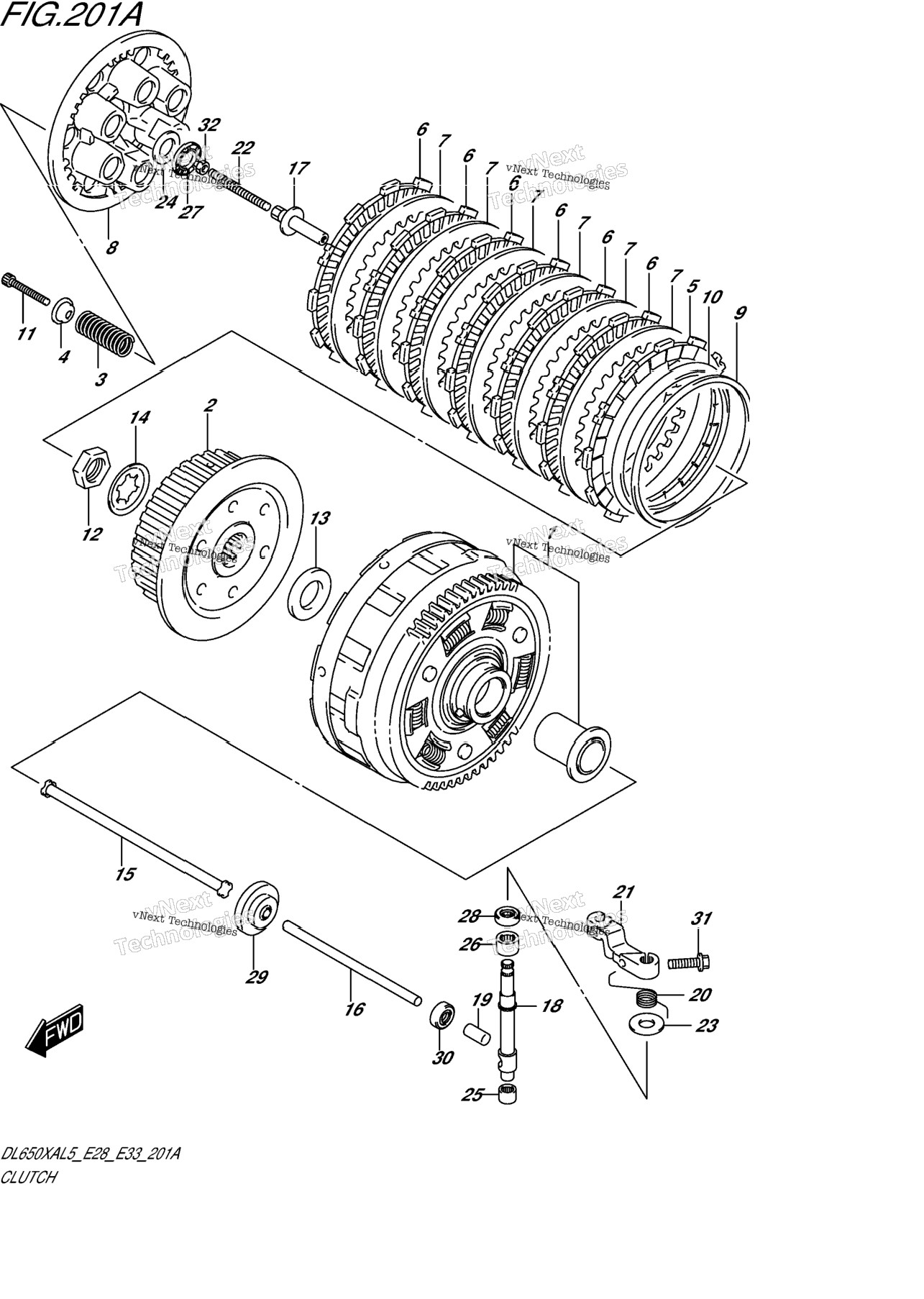

| 1 | 21200-44860 | GEAR ASSY, PRI DRIVEN (NT:71) | 1 шт. | — | |
|
| 2 | 21411-44101 | HUB, CLUTCH SLEEVE | 1 шт. | — | |
|
| 3 | 21413-17G10 | SPRING, CLUTCH | 6 шт. | — | |
|
| 4 | 21414-29F00 | WASHER, CLUTCH SPRING | 6 шт. | — | |
|
| 5 | 21442-29F10 | PLATE, CLUTCH DRIVE NO.2 (T:3.0) | 1 шт. | — | |
|
| 6 | 21441-29F30 | PLATE, CLUTCH DRIVE (T:3.0) | 6 шт. | — | |
|
| 7 | 21451-28C31 | PLATE, CLUTCH DRIVEN (T:1.6) | 6 шт. | — | |
|
| 8 | 21462-14301 | DISC, CLUTCH PRESSURE | 1 шт. | — | |
|
| 9 | 21471-17G00 | SEAT, WAVE WASHER | 1 шт. | — | |
|
| 10 | 21472-17G00 | WASHER, CLUTCH PLATE WAVE | 1 шт. | — | |
|
| 11 | 21482-41G10 | BOLT, CLUTCH SPRING | 6 шт. | — | |
|
| 12 | 09140-20001 | NUT | 1 шт. | — | |
|
| 13 | 09160-20067 | WASHER (20X36X3) | 1 шт. | — | |
|
| 14 | 09167-20006 | LOCK WASHER | 1 шт. | — | |
|
| 15 | 23110-44111 | ROD, PUSH RH | 1 шт. | — | |
|
| 16 | 23111-15501 | ROD, CLUTCH PUSH LH | 1 шт. | — | |
|
| 17 | 23121-44H00 | PIECE, CLUTCH PUSH | 1 шт. | — | |
|
| 18 | 23122-44H00 | CAMSHAFT, CLUTCH RELEASE | 1 шт. | — | |
|
| 19 | 23123-41G00 | CAP, CLUTCH PUSH ROD | 1 шт. | — | |
|
| 20 | 23125-11J00 | SPRING, CLUTCH RELEASE RETURN | 1 шт. | — | |
|
| 21 | 23271-44H10 | ARM, CLUTCH RELEASE | 0 шт. | — | |
|
| 22 | 09134-06015 | SCREW (6X73) | 1 шт. | — | |
|
| 23 | 09160-10020 | WASHER (10.5X24X1) | 1 шт. | — | |
|
| 24 | 09160-15045 | WASHER (15.5X28X1) | 1 шт. | — | |
|
| 25 | 09263-10014 | BEARING (10X14X10) | 1 шт. | — | |
|
| 26 | 09263-12027 | BEARING (12X18X12) | 1 шт. | — | |
|
| 27 | 09263-15003 | BEARING (15X28X2) | 1 шт. | — | |
|
| 28 | 09282-10012 | OIL SEAL (10X20X6) | 1 шт. | — | |
|
| 29 | 09283-06008 | OIL SEAL (6X34X10.5) | 1 шт. | — | |
|
| 30 | 09285-10004 | OIL SEAL (10X17X5) | 1 шт. | — | |
|
| 31 | 01547-0620A | BOLT | 1 шт. | — | |
|
| 32 | 08310-0006A | NUT | 1 шт. | — | |
|
