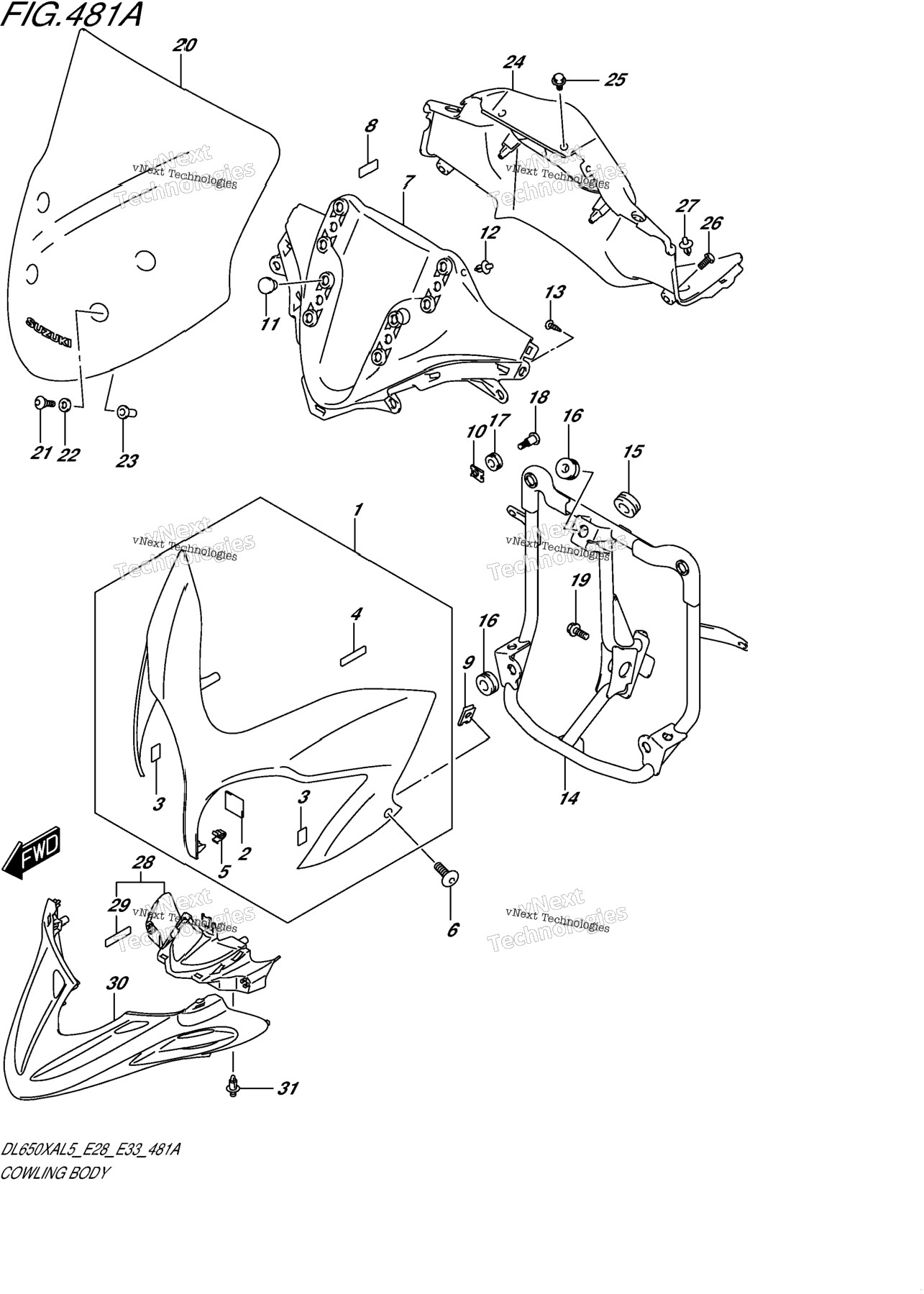

| 1 | 94410-11J00-YSF | BODY, COWLING (BLUE) | 1 шт. | — | |
|
| 1 | 94410-11J00-PGZ | BODY, COWLING (GRAY) | 1 шт. | — | |
|
| 1 | 94410-11J00-YYG | BODY, COWLING (RED) | 1 шт. | — | |
|
| 1 | 94410-11J00-RB5 | BODY, COWLING (WHITE) | 1 шт. | — | |
|
| 2 | 44572-02F01 | FASTENER | 1 шт. | — | |
|
| 3 | 44572-37H00 | FASTENER, COWLING | 2 шт. | — | |
|
| 5 | 09409-08326 | CLIP (10.5X14.3) | 1 шт. | — | |
|
| 6 | 09139-05064 | SCREW (5X13) | 2 шт. | — | |
|
| 7 | 94414-11J00 | PANEL, FRONT | 1 шт. | — | |
|
| 8 | 94612-31F00 | CUSHION, FRONT PANEL | 2 шт. | — | |
|
| 9 | 09148-05052 | NUT (M5) | 2 шт. | — | |
|
| 10 | 09148-06020 | NUT | 2 шт. | — | |
|
| 11 | 09250-10010 | CAP (OD:15) | 8 шт. | — | |
|
| 13 | 03241-0512B | SCREW | 2 шт. | — | |
|
| 14 | 94510-11J01 | BRACE, COWLING | 1 шт. | — | |
|
| 15 | 34955-13E00 | CUSHION, BRACE COWLING | 1 шт. | — | |
|
| 16 | 09320-08028 | CUSHION (8X26X7) | 3 шт. | — | |
|
| 17 | 09320-09016 | CUSHION (9X18X9.5) | 2 шт. | — | |
|
| 18 | 09139-06126 | SCREW (6X20) | 2 шт. | — | |
|
| 19 | 01550-0820A | BOLT | 2 шт. | — | |
|
| 20 | 94611-11J00 | WINDSCREEN | 1 шт. | — | |
|
| 21 | 09139-05032 | SCREW | 4 шт. | — | |
|
| 22 | 09160-05048 | WASHER | 4 шт. | — | |
|
| 23 | 09159-05019 | NUT | 4 шт. | — | |
|
| 24 | 94631-11J00 | PANEL, METER | 1 шт. | — | |
|
| 25 | 09139-05074 | BOLT (5X13) | 4 шт. | — | |
|
| 26 | 09139-06120 | SCREW (6X16) | 2 шт. | — | |
|
| 28 | 94460-11J00-YUS | COVER, COWLING UPPER (SILVER) | 1 шт. | — | |
|
| 29 | 94443-06G00 | TAPE, FRONT PANEL | 4 шт. | — | |
|
| 29 | 94443-06G00 | TAPE, UPPER COWLING | 1 шт. | — | |
|
| 30 | 94465-11J00 | COVER, COWLING LOWER | 1 шт. | — | |
|
| 31 | 09409-06329 | CLIP | 2 шт. | — | |
|
| 31 | 09409-06329 | CLIP | 2 шт. | — | |
|
| 31 | 09409-06329 | CLIP | 2 шт. | — | |
|
