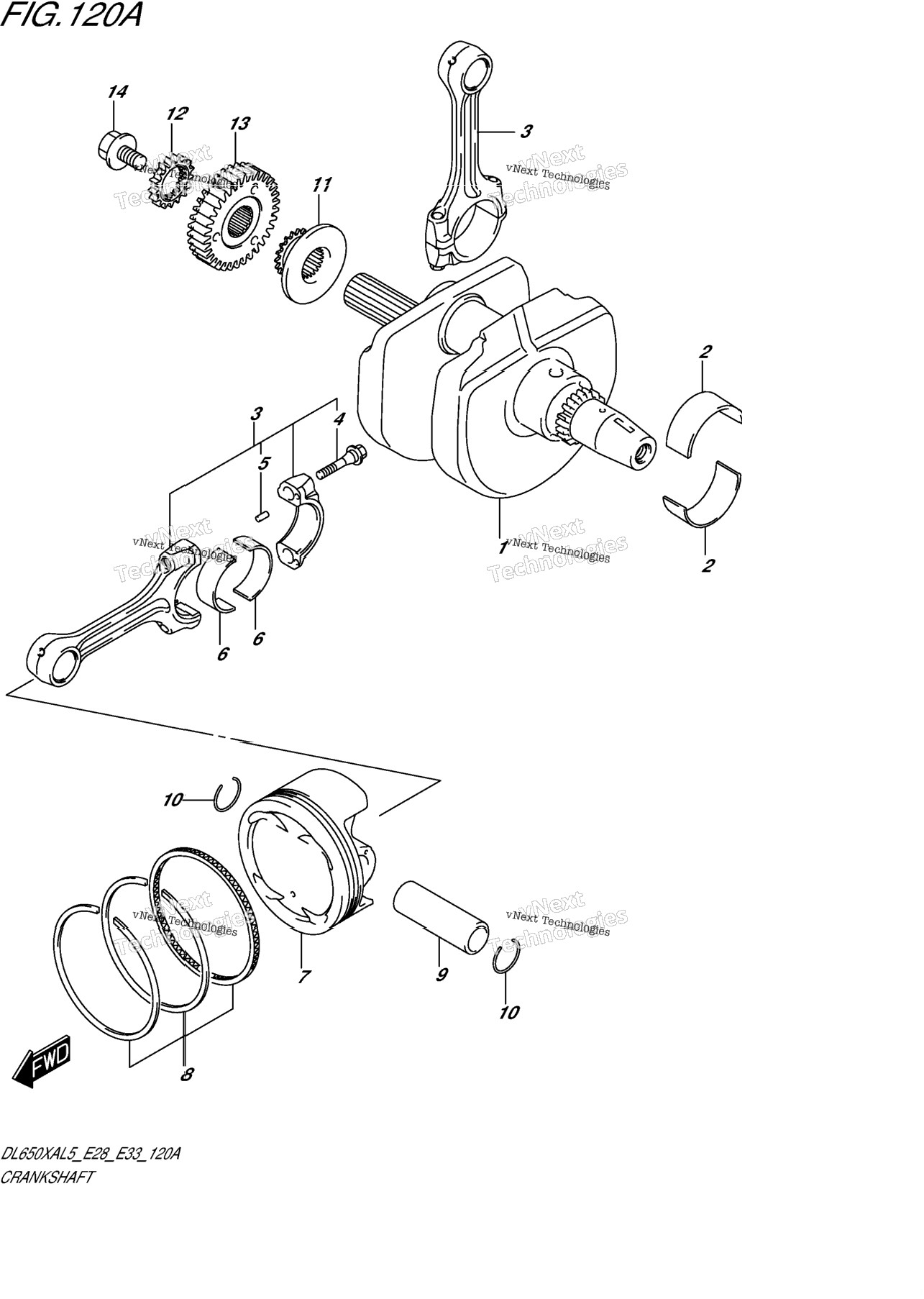

| 1 | 12220-44H10 | CRANKSHAFT | 0 шт. | — | |
|
| 2 | 12229-44H00-0B0 | BEARING, CRANKSHAFT (BLACK) | 4 шт. | — | |
|
| 2 | 12229-44H00-0C0 | BEARING, CRANKSHAFT (BROWN) | 0 шт. | — | |
|
| 2 | 12229-44H00-0A0 | BEARING, CRANKSHAFT (GREEN) | 4 шт. | — | |
|
| 3 | 12160-17G10 | CONNECTING ROD ASSY | 2 шт. | — | |
|
| 4 | 12163-24F10 | BOLT, CONNECTING ROD | 4 шт. | — | |
|
| 5 | 04221-04089 | .PIN | 4 шт. | — | |
|
| 6 | 12164-46E01-0B0 | BEARING, CRANK PIN (BLACK) | 4 шт. | — | |
|
| 6 | 12164-46E01-0C0 | BEARING, CRANK PIN (BROWN) | 4 шт. | — | |
|
| 6 | 12164-46E01-0A0 | BEARING, CRANK PIN (GREEN) | 4 шт. | — | |
|
| 6 | 12164-46E01-0D0 | BEARING, CRANK PIN (YELLOW) | 4 шт. | — | |
|
| 7 | 12111-44H20-0F0 | PISTON (YELLOW) | 2 шт. | — | |
|
| 8 | 12140-15H10 | RING SET, PISTON | 2 шт. | — | |
|
| 9 | 12151-05A00 | PIN,PISTON | 2 шт. | — | |
|
| 10 | 09381-20004 | SNAP RING | 4 шт. | — | |
|
| 11 | 12731-19F00 | SPROCKET, CAM CHAIN DRIVE (NT:18) | 0 шт. | — | |
|
| 12 | 17451-17G00 | GEAR, WATER PUMP DRIVE (NT:17) | 1 шт. | — | |
|
| 13 | 21100-44H00 | GEAR ASSY, PRIMARY DRIVE | 0 шт. | — | |
|
| 14 | 09103-10338 | BOLT (10X19) | 1 шт. | — | |
|
