Frame Cover

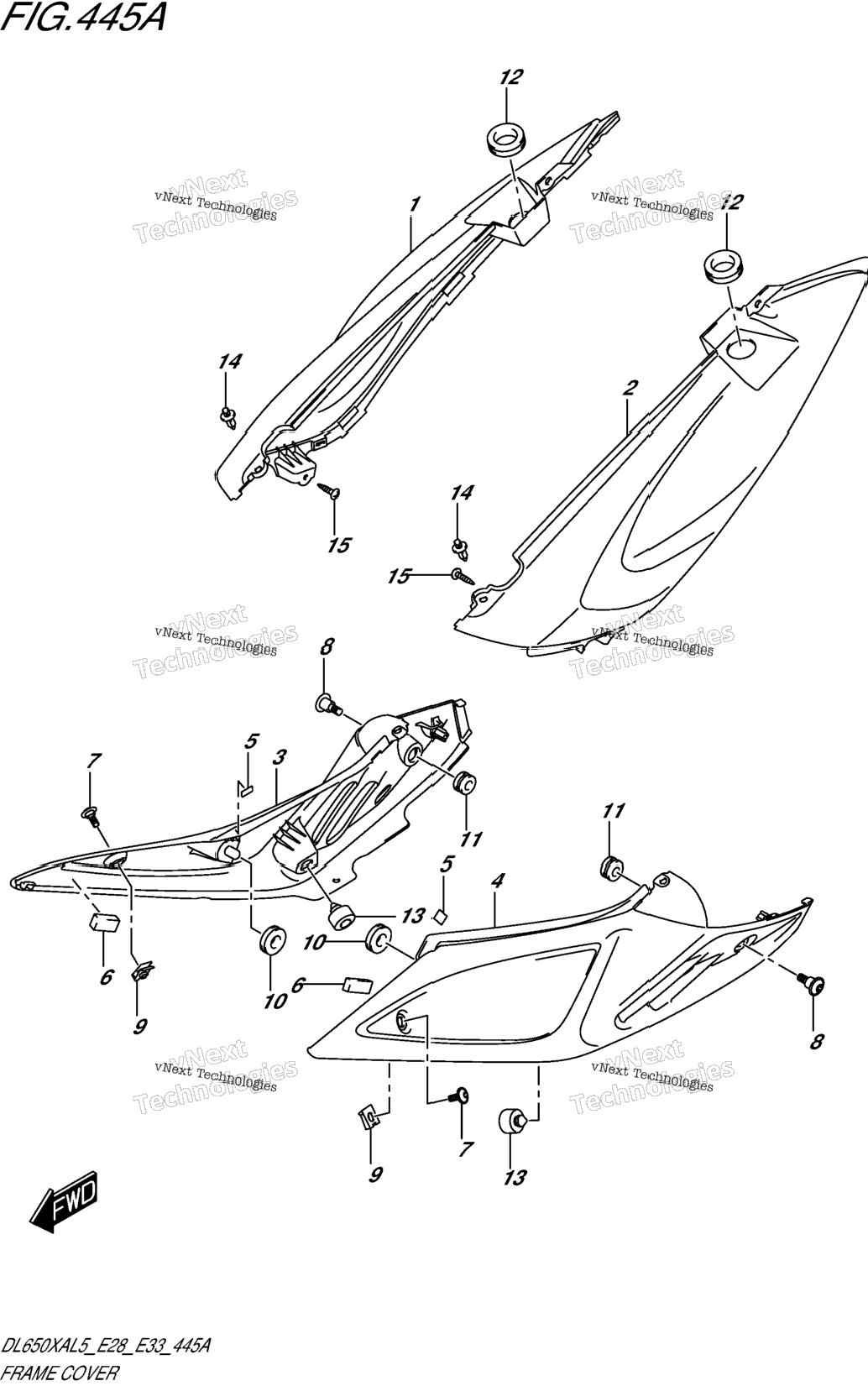

Схема Frame Cover
| № | Артикул | Название | Кол-во | Наличие и цены | Действия |
|---|
| 1 | 47111-11J01-YSF | COVER, FRAME RH (BLUE) | 1 шт. | — | |
|
| 1 | 47111-11J01-PGZ | COVER, FRAME RH (GRAY) | 1 шт. | — | |
|
| 1 | 47111-11J01-YYG | COVER, FRAME RH (RED) | 1 шт. | — | |
|
| 1 | 47111-11J01-RB5 | COVER, FRAME RH (WHITE) | 1 шт. | — | |
|
| 2 | 47211-11J01-YSF | COVER, FRAME LH (BLUE) | 1 шт. | — | |
|
| 2 | 47211-11J01-PGZ | COVER, FRAME LH (GRAY) | 1 шт. | — | |
|
| 2 | 47211-11J01-YYG | COVER, FRAME LH (RED) | 1 шт. | — | |
|
| 2 | 47211-11J01-RB5 | COVER, FRAME LH (WHITE) | 1 шт. | — | |
|
| 3 | 47411-11J00 | COVER, FRAME SIDE RH | 1 шт. | — | |
|
| 4 | 47511-11J00 | COVER, FRAME SIDE LH | 1 шт. | — | |
|
| 5 | 63115-37H00 | CUSHION, FRAME COVER | 2 шт. | — | |
|
| 6 | 94423-10G00 | CUSHION, FRAME COVER | 2 шт. | — | |
|
| 7 | 09139-05074 | BOLT (5X13) | 2 шт. | — | |
|
| 8 | 09139-06179 | BOLT (6X20) | 2 шт. | — | |
|
| 9 | 09148-05052 | NUT (M5) | 2 шт. | — | |
|
| 10 | 09320-08028 | CUSHION (8X26X7) | 2 шт. | — | |
|
| 11 | 09320-09016 | CUSHION (9X18X9.5) | 2 шт. | — | |
|
| 12 | 09320-20010 | CUSHION | 2 шт. | — | |
|
| 13 | 09321-10001 | CUSHION | 2 шт. | — | |
|
| 14 | 09409-06314-5PK | CLIP (BLACK) | 4 шт. | — | |
|
| 15 | 03541-0416A | SCREW | 2 шт. | — | |
|
