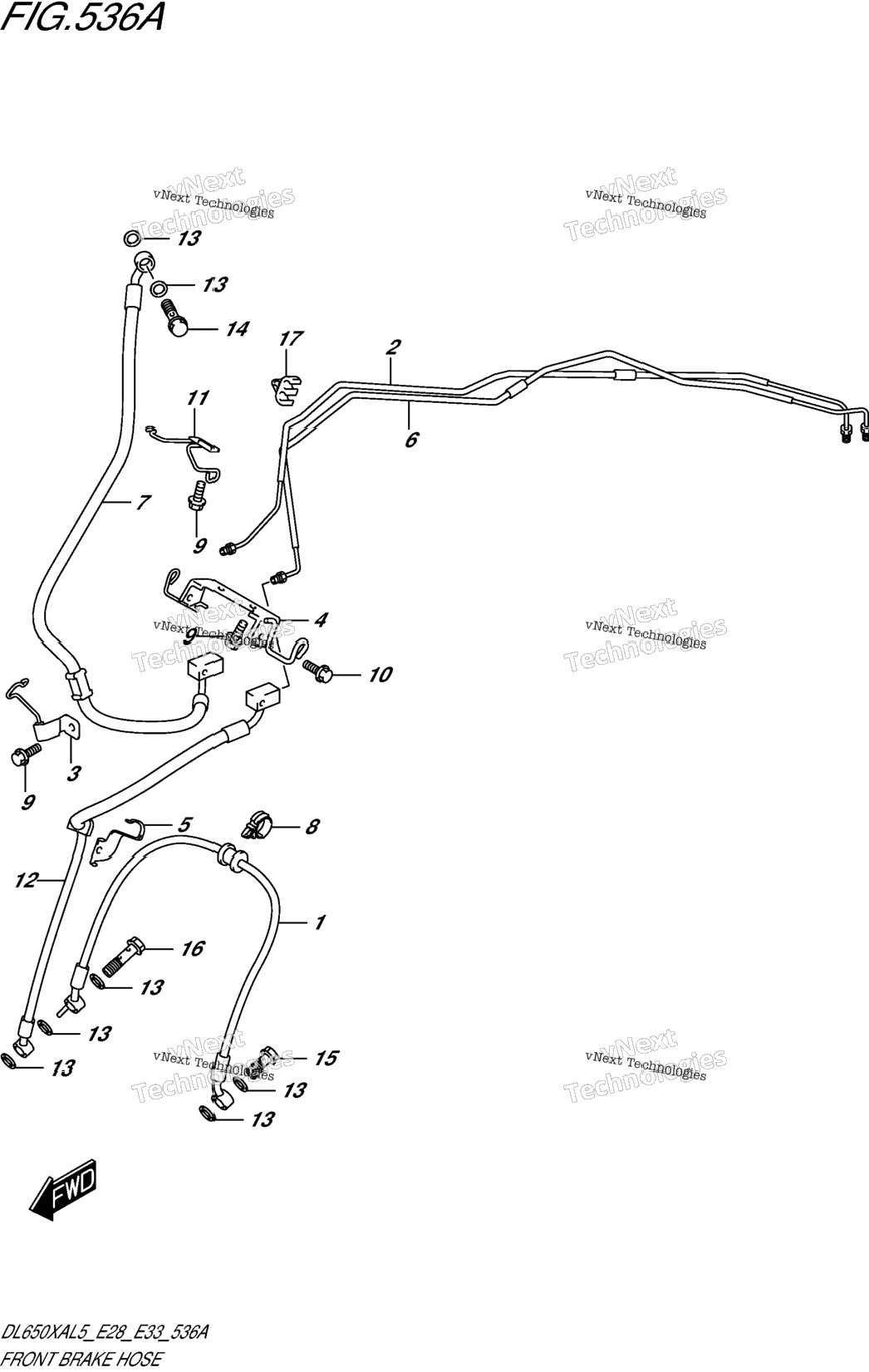

| 1 | 59240-11J00 | HOSE, FR BRAKE NO.2 | 1 шт. | — | |
|
| 2 | 59250-11J00 | PIPE, FRONT BRAKE NO.1 | 1 шт. | — | |
|
| 3 | 59260-06G10 | CLAMP, FRONT BRAKE HOSE NO.1 | 1 шт. | — | |
|
| 4 | 59260-11J00 | CLAMP, FR BRAKE HOSE NO.2 | 0 шт. | — | |
|
| 5 | 59268-11J00 | CLAMP, FR BRAKE HOSE RH | 0 шт. | — | |
|
| 6 | 59450-11J00 | PIPE, FRONT BRAKE NO.2 | 1 шт. | — | |
|
| 7 | 59480-11J00 | HOSE, FRONT BRAKE NO.1 | 1 шт. | — | |
|
| 8 | 09403-16412 | CLAMP | 1 шт. | — | |
|
| 9 | 01547-0612A | BOLT | 4 шт. | — | |
|
| 10 | 01547-0616A | BOLT | 2 шт. | — | |
|
| 11 | 59540-11J00 | GUIDE, FR BRAKE HOSE | 1 шт. | — | |
|
| 12 | 59560-11J00 | HOSE, FRONT BRAKE NO.3 | 1 шт. | — | |
|
| 13 | 09161-10009 | WASHER (10X15X1.5) | 7 шт. | — | |
|
| 15 | 09360-10062 | UNION | 1 шт. | — | |
|
| 15 | 09360-10062 | UNION | 1 шт. | — | |
|
| 16 | 09360-10064 | UNION (10X1.25X36) | 1 шт. | — | |
|
| 17 | 09403-07334 | CLAMP | 0 шт. | — | |
|
