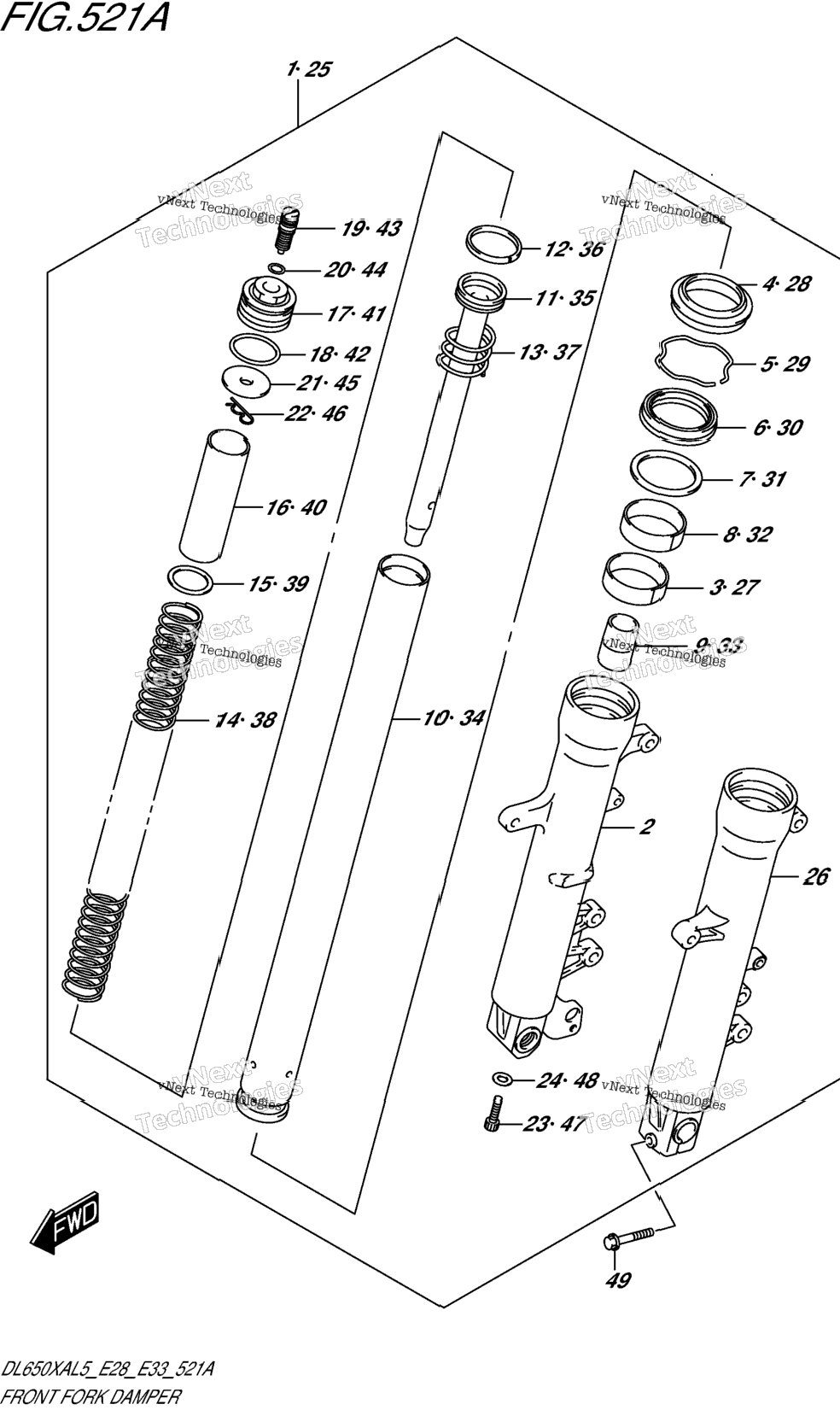

| 1 | 51103-11J00 | DAMPER ASSY, FRONT FORK RH | 1 шт. | — | |
|
| 2 | 51131-11J00 | TUBE, OUTER RH | 1 шт. | — | |
|
| 25 | 51104-11J00 | DAMPER ASSY, FRONT FORK LH | 1 шт. | — | |
|
| 26 | 51141-11J00 | TUBE, OUTER LH | 1 шт. | — | |
|
| 27 | 51121-11J00 | .BUSH, SLIDE | 1 шт. | — | |
|
| 27 | 51121-11J00 | .BUSH, SLIDE | 1 шт. | — | |
|
| 28 | 51173-27G00 | SEAL, DUST | 1 шт. | — | |
|
| 28 | 51173-27G00 | SEAL, DUST | 1 шт. | — | |
|
| 29 | 51556-38B00 | RING, STOPPER | 1 шт. | — | |
|
| 29 | 51556-38B00 | RING, STOPPER | 1 шт. | — | |
|
| 30 | 51553-47H00 | OIL SEAL | 1 шт. | — | |
|
| 30 | 51553-47H00 | OIL SEAL | 1 шт. | — | |
|
| 31 | 51168-17C00 | SPACER, SEAL | 1 шт. | — | |
|
| 31 | 51168-17C00 | SPACER, SEAL | 1 шт. | — | |
|
| 32 | 51152-47H00 | BUSH, GUIDE | 1 шт. | — | |
|
| 32 | 51152-47H00 | BUSH, GUIDE | 1 шт. | — | |
|
| 33 | 51195-27G00 | PIECE, OIL LOCK | 1 шт. | — | |
|
| 33 | 51195-27G00 | PIECE, OIL LOCK | 1 шт. | — | |
|
| 34 | 51110-11J00 | PIPE, FORK | 1 шт. | — | |
|
| 34 | 51110-11J00 | PIPE, FORK | 1 шт. | — | |
|
| 35 | 51146-11J00 | .PIPE, SEAT | 1 шт. | — | |
|
| 35 | 51146-11J00 | .PIPE, SEAT | 1 шт. | — | |
|
| 36 | 51196-27G00 | RING, PISTON | 1 шт. | — | |
|
| 36 | 51196-27G00 | RING, PISTON | 1 шт. | — | |
|
| 37 | 51177-14D00 | SPRING, REBOUND | 1 шт. | — | |
|
| 37 | 51177-14D00 | SPRING, REBOUND | 1 шт. | — | |
|
| 38 | 51171-11J00 | SPRING, FRONT | 1 шт. | — | |
|
| 38 | 51171-11J00 | SPRING, FRONT | 1 шт. | — | |
|
| 39 | 51186-17C00 | .SEAT, SPRING LWR | 1 шт. | — | |
|
| 39 | 51186-17C00 | .SEAT, SPRING LWR | 1 шт. | — | |
|
| 40 | 51176-19C00 | COLLAR, SPRING | 1 шт. | — | |
|
| 40 | 51176-19C00 | COLLAR, SPRING | 1 шт. | — | |
|
| 41 | 51189-27G00 | BOLT, FORK | 0 шт. | — | |
|
| 41 | 51189-27G00 | BOLT, FORK | 0 шт. | — | |
|
| 42 | 51117-17C00 | O RING | 1 шт. | — | |
|
| 42 | 51117-17C00 | O RING | 1 шт. | — | |
|
| 43 | 51185-27G00 | ADJUSTER BOLT, SPRING | 1 шт. | — | |
|
| 43 | 51185-27G00 | ADJUSTER BOLT, SPRING | 1 шт. | — | |
|
| 44 | 51187-14D00 | O RING | 1 шт. | — | |
|
| 44 | 51187-14D00 | O RING | 1 шт. | — | |
|
| 45 | 51186-12C00 | SEAT, SPRING | 1 шт. | — | |
|
| 45 | 51186-12C00 | SEAT, SPRING | 1 шт. | — | |
|
| 46 | 51188-32B00 | PIN, SEAT SPRING | 0 шт. | — | |
|
| 46 | 51188-32B00 | PIN, SEAT SPRING | 0 шт. | — | |
|
| 47 | 51147-48130 | BOLT | 1 шт. | — | |
|
| 47 | 51147-48130 | BOLT | 1 шт. | — | |
|
| 48 | 51148-31030 | GASKET | 1 шт. | — | |
|
| 48 | 51148-31030 | GASKET | 1 шт. | — | |
|
| 49 | 51328-27E30 | BOLT, HOLDER AXLE LH (8X40) LH | 1 шт. | — | |
|
