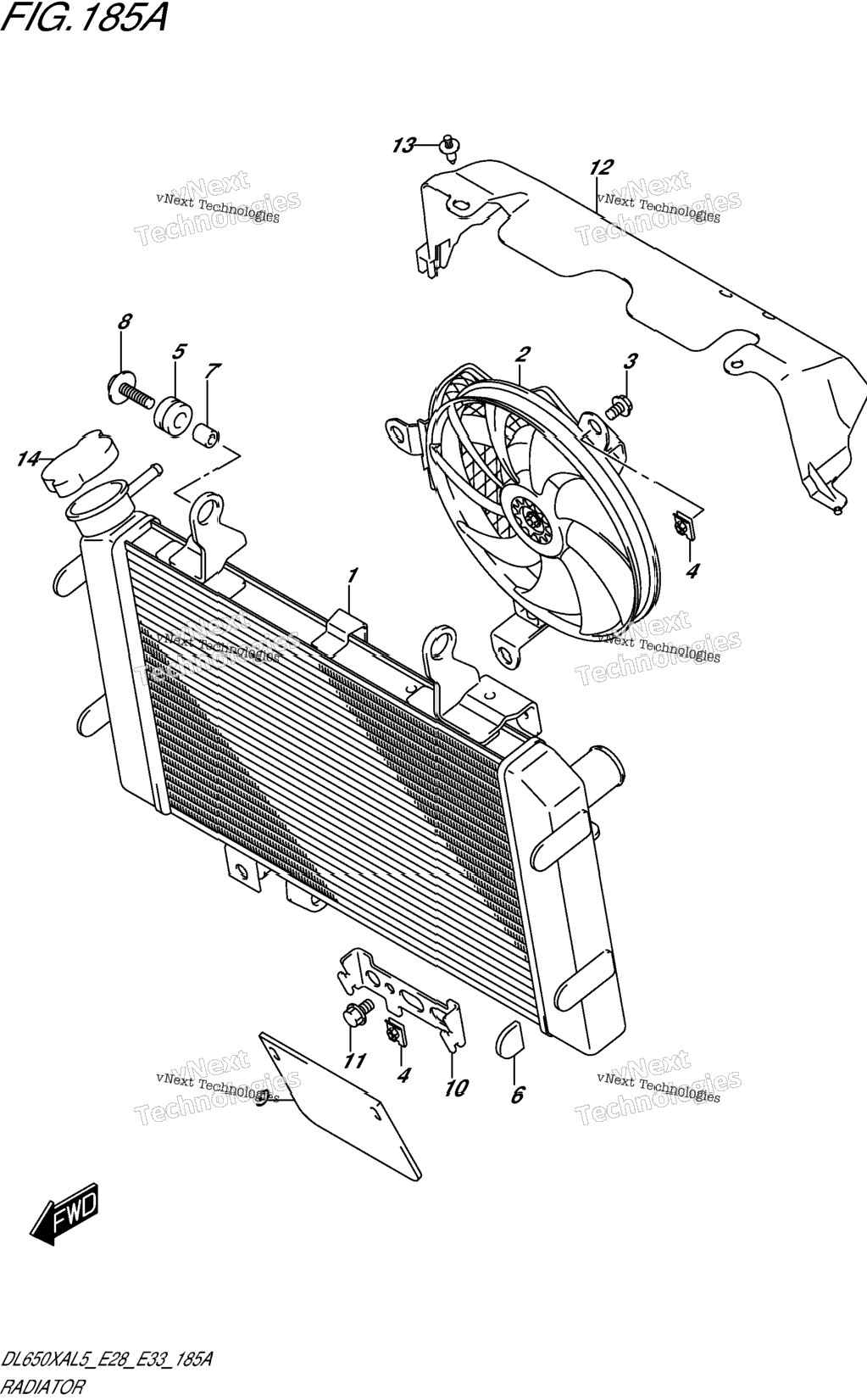

| 1 | 17710-11J00 | RADIATOR ASSY, WATER | 1 шт. | — | |
|
| 2 | 17800-11J00 | FAN ASSY, RADIATOR | 1 шт. | — | |
|
| 3 | 17711-08J00 | BOLT, FAN ASSY | 3 шт. | — | |
|
| 4 | 17712-40F00 | NUT, FAN ASSY | 3 шт. | — | |
|
| 5 | 09320-10501 | CUSHION | 3 шт. | — | |
|
| 6 | 09329-18001 | CUSHION | 4 шт. | — | |
|
| 7 | 09180-06310 | SPACER (6.5X10X10) | 2 шт. | — | |
|
| 8 | 09118-06097 | BOLT (6X25) | 2 шт. | — | |
|
| 9 | 17781-17G00 | RUBBER, RADIATOR UNDER | 1 шт. | — | |
|
| 10 | 17741-17G00 | BRACKET, RADIATOR UNDER RUBBER | 1 шт. | — | |
|
| 11 | 01550-0612A | BOLT | 1 шт. | — | |
|
| 12 | 17771-11J00 | SHIELD, RADIATOR HEAT | 1 шт. | — | |
|
| 13 | 09409-06314-5PK | CLIP (BLACK) | 2 шт. | — | |
|
| 14 | 17730-08J00 | CAP, RADIATOR 1.1 | 1 шт. | — | |
|
