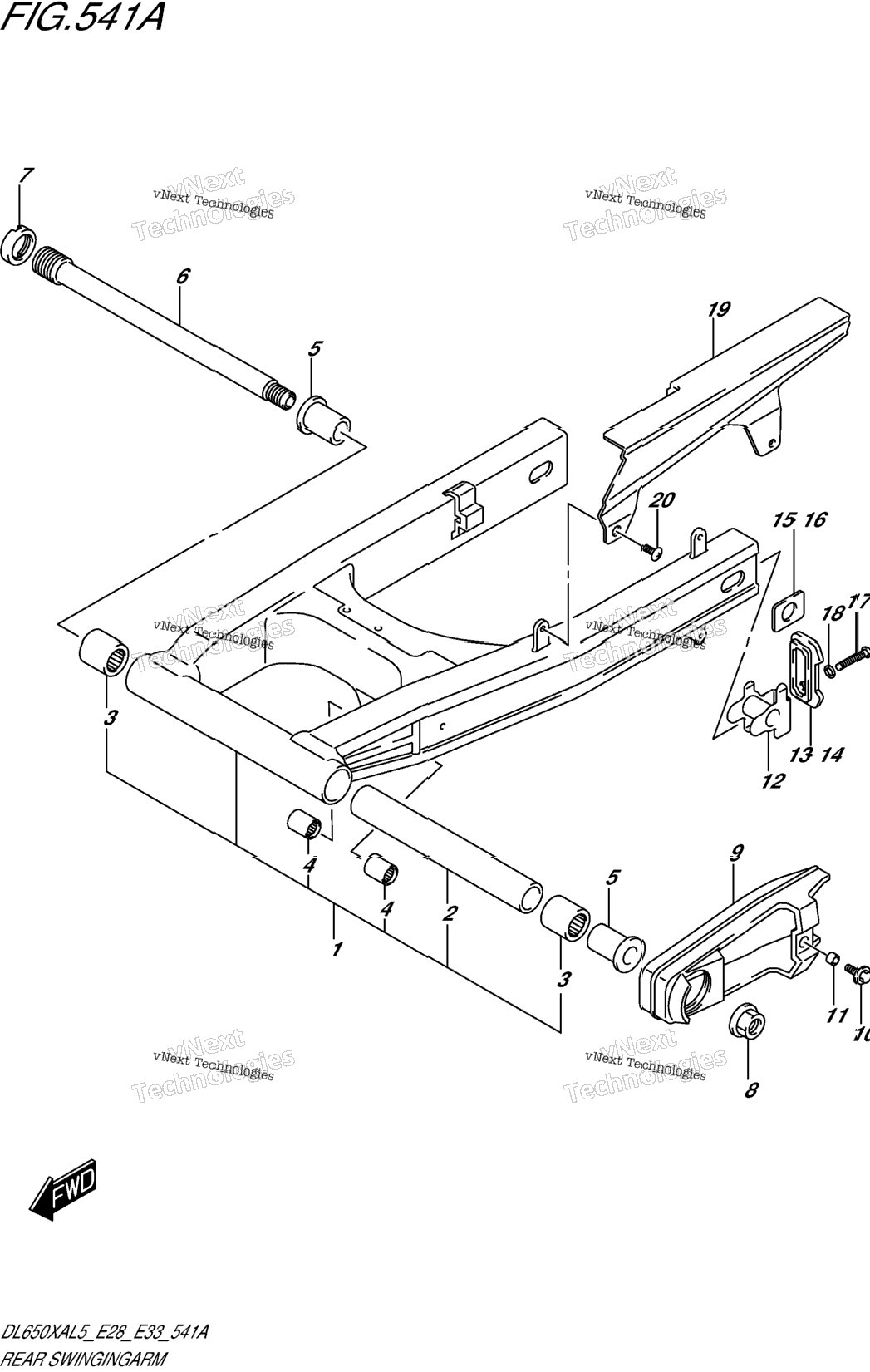

| 1 | 61000-27G30-YAP | SWINGINGARM ASSY, REAR (BLACK) | 1 шт. | — | |
|
| 2 | 09180-20118 | SPACER (20.8X27.2X196.7) | 1 шт. | — | |
|
| 3 | 09263-25059 | BEARING (25X33X35) | 2 шт. | — | |
|
| 4 | 09263-17037 | BEARING (17X24X25) | 2 шт. | — | |
|
| 5 | 61251-31E00 | SPACER, PIVOT BEARING | 2 шт. | — | |
|
| 6 | 61211-06G00 | SHAFT, RR SWINGINGARM PIVOT | 1 шт. | — | |
|
| 7 | 61214-19F10 | NUT, RR SWGARM PIVOT BOLT | 1 шт. | — | |
|
| 8 | 08319-3118A | NUT | 1 шт. | — | |
|
| 9 | 61273-27G00 | BUFFER, CHAIN TOUCH DEFENSE | 1 шт. | — | |
|
| 10 | 09116-06152 | BOLT (6X20) | 1 шт. | — | |
|
| 11 | 09180-06283 | SPACER (6.5X10X7) | 1 шт. | — | |
|
| 12 | 61410-03F00 | ADJUSTER, CHAIN | 2 шт. | — | |
|
| 13 | 61421-33D01 | PLATE, CHAIN ADJUSTER GUIDE RH | 1 шт. | — | |
|
| 14 | 61422-33D01 | PLATE, CHAIN ADJUSTER GUIDE LH | 1 шт. | — | |
|
| 15 | 64712-03F00 | WASHER, CHAIN ADJUSTER RH | 1 шт. | — | |
|
| 16 | 64713-03F00 | WASHER, CHAIN ADJUSTER LH | 1 шт. | — | |
|
| 17 | 09106-08119 | BOLT (8X50) | 2 шт. | — | |
|
| 18 | 09164-08015 | WASHER | 2 шт. | — | |
|
| 19 | 61310-16G00 | CASE,CHAIN | 1 шт. | — | |
|
| 20 | 09139-06083 | SCREW (6X16) | 2 шт. | — | |
|
