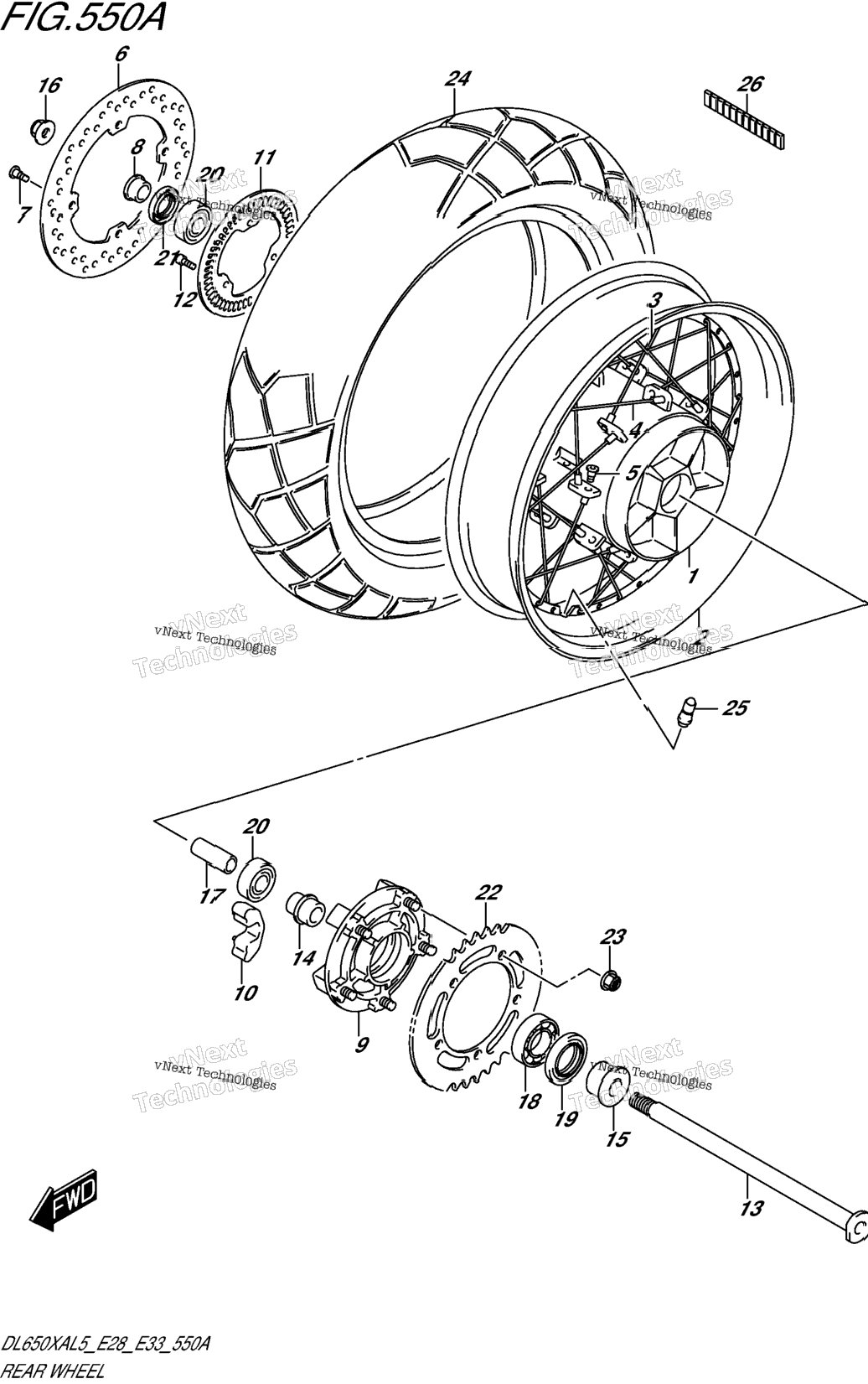

| 1 | 64111-11J00 | HUB, RR | 1 шт. | — | |
|
| 2 | 65311-11J00 | RIM, REAR WHEEL (17M/CXMT4.00) | 0 шт. | — | |
|
| 3 | 65321-11J00 | SPOKE, REAR WHEEL INNER | 16 шт. | — | |
|
| 4 | 65322-11J00 | SPOKE, REAR WHEEL OUTER | 16 шт. | — | |
|
| 5 | 55326-11J00 | NIPPLE, WHEEL | 32 шт. | — | |
|
| 6 | 69211-06G10 | DISC, RR BRAKE | 1 шт. | — | |
|
| 7 | 09106-08160 | BOLT (8X21) | 4 шт. | — | |
|
| 8 | 64741-10F00 | SPACER, RR AXLE RH | 1 шт. | — | |
|
| 9 | 64610-35F40 | DRUM, RR SPROCKET | 1 шт. | — | |
|
| 10 | 64651-35F10 | ABSORBER, RR HUB SHOCK | 5 шт. | — | |
|
| 11 | 54162-27G00 | RING, SPEED SENSOR FR (50T) | 1 шт. | — | |
|
| 12 | 07130-0512A | BOLT | 3 шт. | — | |
|
| 13 | 64711-03F00 | AXLE, RR | 1 шт. | — | |
|
| 14 | 64733-06G00 | RETAINER, RR SPROCKET DRUM | 1 шт. | — | |
|
| 15 | 64751-27G00 | SPACER, RR AXLE LH | 1 шт. | — | |
|
| 16 | 08319-3118A | NUT | 1 шт. | — | |
|
| 17 | 09180-20112 | SPACER (20.8X27.2X124) | 1 шт. | — | |
|
| 18 | 09262-32022 | BEARING (32X65X17) | 1 шт. | — | |
|
| 19 | 09285-39001 | OIL SEAL (39X65X7) | 1 шт. | — | |
|
| 20 | 08123-62047 | BEARING | 2 шт. | — | |
|
| 21 | 09285-28001 | OIL SEAL (28X47X7) | 1 шт. | — | |
|
| 22 | 64511-27G00 | SPROCKET, RR (47T-525) | 1 шт. | — | |
|
| 23 | 08319-3110A | NUT | 5 шт. | — | |
|
| 24 | 65110-06G11 | TIRE, REAR (150/70R17M/C 69H) | 1 шт. | — | |
|
| 25 | 43130-24A00 | VALVE ASSY,WHEEL RIM (TR412) | 1 шт. | — | |
|
| 26 | 55411-11J00 | WEIGHT,WHEEL BALANCE (5GRAM) | 1 шт. | — | |
|
