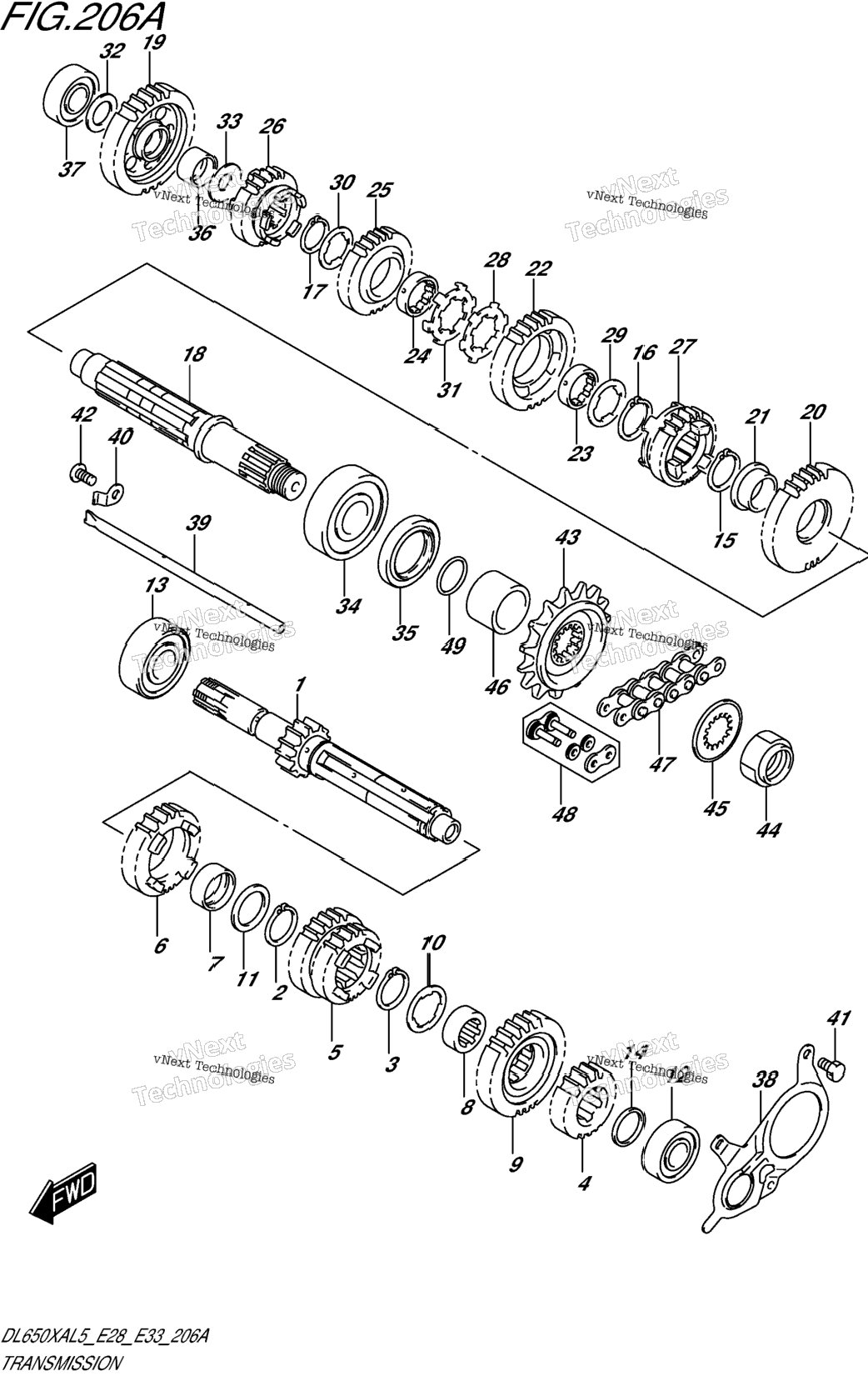

| 1 | 24120-27G00 | SHAFT, COUNTER (NT:13) | 1 шт. | — | |
|
| 2 | 24127-19F00 | CIRCLIP | 1 шт. | — | |
|
| 3 | 24127-19F00 | CIRCLIP | 1 шт. | — | |
|
| 4 | 24221-20F10 | GEAR, 2ND DRIVE (NT:18) | 0 шт. | — | |
|
| 5 | 24231-20F10 | GEAR, 3RD & 4TH DRIVE (NT:21/24) | 1 шт. | — | |
|
| 6 | 24251-20F02 | GEAR, 5TH DRIVE (NT:26) | 0 шт. | — | |
|
| 7 | 24252-19F00 | BUSH | 1 шт. | — | |
|
| 8 | 24252-38A10 | BUSH, 6TH DRIVE GEAR | 1 шт. | — | |
|
| 9 | 24261-20F00 | GEAR, 6TH DRIVE (NT:27) | 1 шт. | — | |
|
| 10 | 09167-25021 | LOCK WASHER (25.1X33X1.0) | 1 шт. | — | |
|
| 11 | 09181-25167 | SHIM (25X34X1) | 1 шт. | — | |
|
| 12 | 09262-17046 | BEARING (17X40X12) LH | 1 шт. | — | |
|
| 13 | 09262-20145 | BEARING (20X52X15) RH | 1 шт. | — | |
|
| 14 | 09380-25012 | CIRCLIP | 1 шт. | — | |
|
| 15 | 24127-19F00 | CIRCLIP | 1 шт. | — | |
|
| 16 | 24127-19F00 | CIRCLIP | 1 шт. | — | |
|
| 17 | 24127-19F00 | CIRCLIP | 1 шт. | — | |
|
| 18 | 24130-44H10 | SHAFT, DRIVE | 0 шт. | — | |
|
| 19 | 24311-44H00 | GEAR, 1ST DRIVEN (NT:32) | 1 шт. | — | |
|
| 20 | 24321-44H10 | GEAR, 2ND DRIVEN (NT:32) | 0 шт. | — | |
|
| 21 | 24322-19F10 | BUSH, 2ND DRIVEN GEAR | 0 шт. | — | |
|
| 22 | 24331-44H00 | GEAR, 3RD DRIVEN (NT:29) | 0 шт. | — | |
|
| 23 | 24332-24510 | BUSH, DRIVEN GEAR | 1 шт. | — | |
|
| 24 | 24332-24510 | BUSH, DRIVEN GEAR | 1 шт. | — | |
|
| 25 | 24341-44H00 | GEAR, 4TH DRIVEN (NT:27) | 1 шт. | — | |
|
| 26 | 24351-44H10 | GEAR, 5TH DRIVEN (NT:25) | 1 шт. | — | |
|
| 27 | 24361-44H00 | GEAR, 6TH DRIVEN (NT:23) | 0 шт. | — | |
|
| 28 | 09167-25013 | WASHER,LOCK (25.1X41X1.5) | 1 шт. | — | |
|
| 29 | 09167-25021 | LOCK WASHER (25.1X33X1.0) | 1 шт. | — | |
|
| 30 | 09167-25021 | LOCK WASHER (25.1X33X1.0) | 1 шт. | — | |
|
| 31 | 09169-25001 | WASHER (25.1X37X2.5) | 1 шт. | — | |
|
| 32 | 09181-17195 | SHIM (17X28X1) | 1 шт. | — | |
|
| 33 | 09181-20195 | SHIM (20X30X1) | 1 шт. | — | |
|
| 34 | 09262-25125 | BEARING (25X62X17) LH | 1 шт. | — | |
|
| 35 | 09283-36011 | OIL SEAL (36X50X6) | 1 шт. | — | |
|
| 36 | 09300-20032 | BUSH (20X24X13) | 1 шт. | — | |
|
| 37 | 09262-17023 | BEARING (17X40X12) RH | 1 шт. | — | |
|
| 38 | 24751-19F10 | RETAINER, DRIVE SHAFT OIL SEAL | 1 шт. | — | |
|
| 39 | 24881-12C30 | GUIDE, T/M OIL | 0 шт. | — | |
|
| 40 | 24885-12C10 | RETAINER, TRANSMISSION OIL | 1 шт. | — | |
|
| 41 | 01500-0612A | BOLT | 3 шт. | — | |
|
| 42 | 02112-0612A | SCREW | 1 шт. | — | |
|
| 43 | 27510-20F00 | SPROCKET, ENGINE (NT:15) | 1 шт. | — | |
|
| 44 | 09159-20004 | NUT | 1 шт. | — | |
|
| 45 | 09167-25028 | LOCK WASHER | 1 шт. | — | |
|
| 46 | 27531-19F10 | SPACER, ENGINE SPROCKET | 1 шт. | — | |
|
| 47 | 27600-06G40-120 | CHAIN ASSY,DRIVE (RK525SMOZ8) L:120->118 | 1 шт. | — | |
|
| 48 | 27620-06G40 | JOINT SET, DRIVE CHAIN OPT | 1 шт. | — | |
|
| 49 | 09280-24010 | O RING (D:2.4,ID:23.7) | 1 шт. | — | |
|
