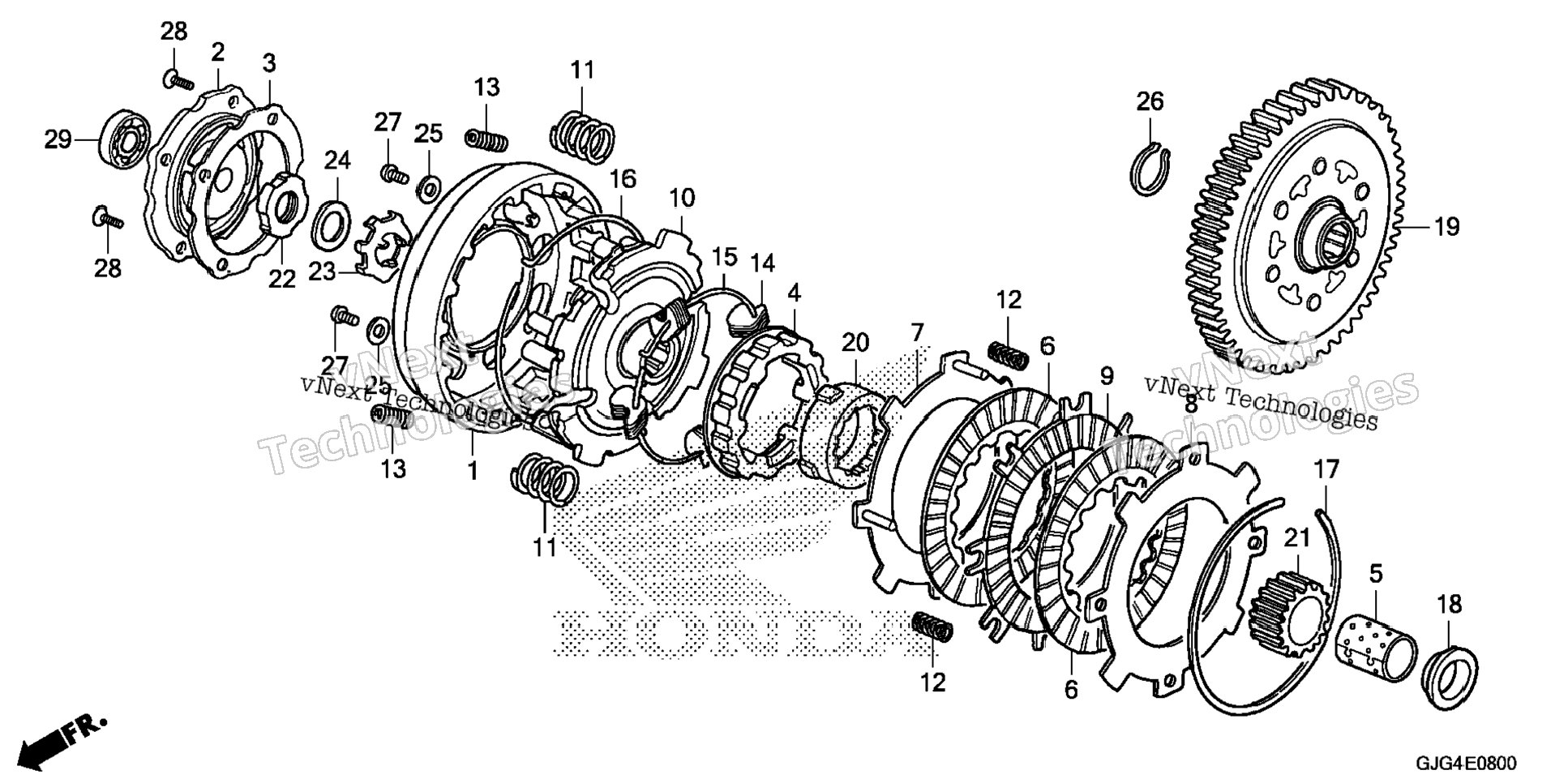

| 1 | 22101-178-000 | CLUTCH (OUTER) | 1 шт. | — | |
|
| 2 | 22111-178-010 | COVER, CLUTCH (OUTER) | 1 шт. | — | |
|
| 3 | 22119-GW8-682 | GASKET, CLUTCH COVER (OUTER) | 1 шт. | — | |
|
| 4 | 22120-GCF-670 | CENTER, CLUTCH | 1 шт. | — | |
|
| 5 | 22131-035-030 | GUIDE, CLUTCH CENTER | 1 шт. | — | |
|
| 6 | 22201-GW8-681 | DISK A, CLUTCH FRICTION | 2 шт. | — | |
|
| 7 | 22310-GB0-910 | PLATE A, CLUTCH | 1 шт. | — | |
|
| 8 | 22321-041-000 | PLATE B, CLUTCH | 1 шт. | — | |
|
| 8 | 22321-046-020 | PLATE B, CLUTCH | 1 шт. | — | |
|
| 9 | 22331-GW8-681 | DISK B, CLUTCH FRICTION | 1 шт. | — | |
|
| 10 | 22351-GB2-710 | PLATE, DRIVE | 1 шт. | — | |
|
| 11 | 22401-GW8-670 | SPRING, CLUTCH | 4 шт. | — | |
|
| 12 | 22411-092-010 | SPRING, CLUTCH FREE | 4 шт. | — | |
|
| 13 | 22421-040-000 | SPRING, CLUTCH DAMPER | 4 шт. | — | |
|
| 14 | 22531-178-000 | WEIGHT, CLUTCH | 16 шт. | — | |
|
| 15 | 22535-033-000 | RING, CLUTCH WEIGHT CENTER | 1 шт. | — | |
|
| 16 | 22536-033-000 | RING, CLUTCH WEIGHT STOPPER | 1 шт. | — | |
|
| 17 | 22901-001-000 | SET-RING (101.5MM) | 1 шт. | — | |
|
| 18 | 22911-GEL-A80 | COLLAR (17MM) | 1 шт. | — | |
|
| 19 | 23110-GEL-A80 | GEAR, PRIMARY DRIVEN (69T) | 1 шт. | — | |
|
| 20 | 23112-GB0-910 | OUTER, DRIVE GEAR | 1 шт. | — | |
|
| 21 | 23121-GEL-A80 | GEAR, PRIMARY DRIVE (17T) | 1 шт. | — | |
|
| 22 | 90231-KVR-C00 | NUT, LOCK (14MM) | 1 шт. | — | |
|
| 23 | 90431-GEL-A80 | WASHER, LOCK (14MM) | 1 шт. | — | |
|
| 24 | 90432-KVR-C00 | WASHER B, LOCK | 1 шт. | — | |
|
| 25 | 90483-041-000 | WASHER, STOPPER | 4 шт. | — | |
|
| 26 | 90601-KYY-900 | CIRCLIP (17MM) | 1 шт. | — | |
|
| 27 | 93500-05010-0A | SCREW, PAN (5X10) | 4 шт. | — | |
|
| 28 | 93600-05010-0A | SCREW, FLAT (5X10) | 4 шт. | — | |
|
| 29 | 91002-GEL-A81 | BEARING, RADIAL BALL (6000) | 1 шт. | — | |
|
