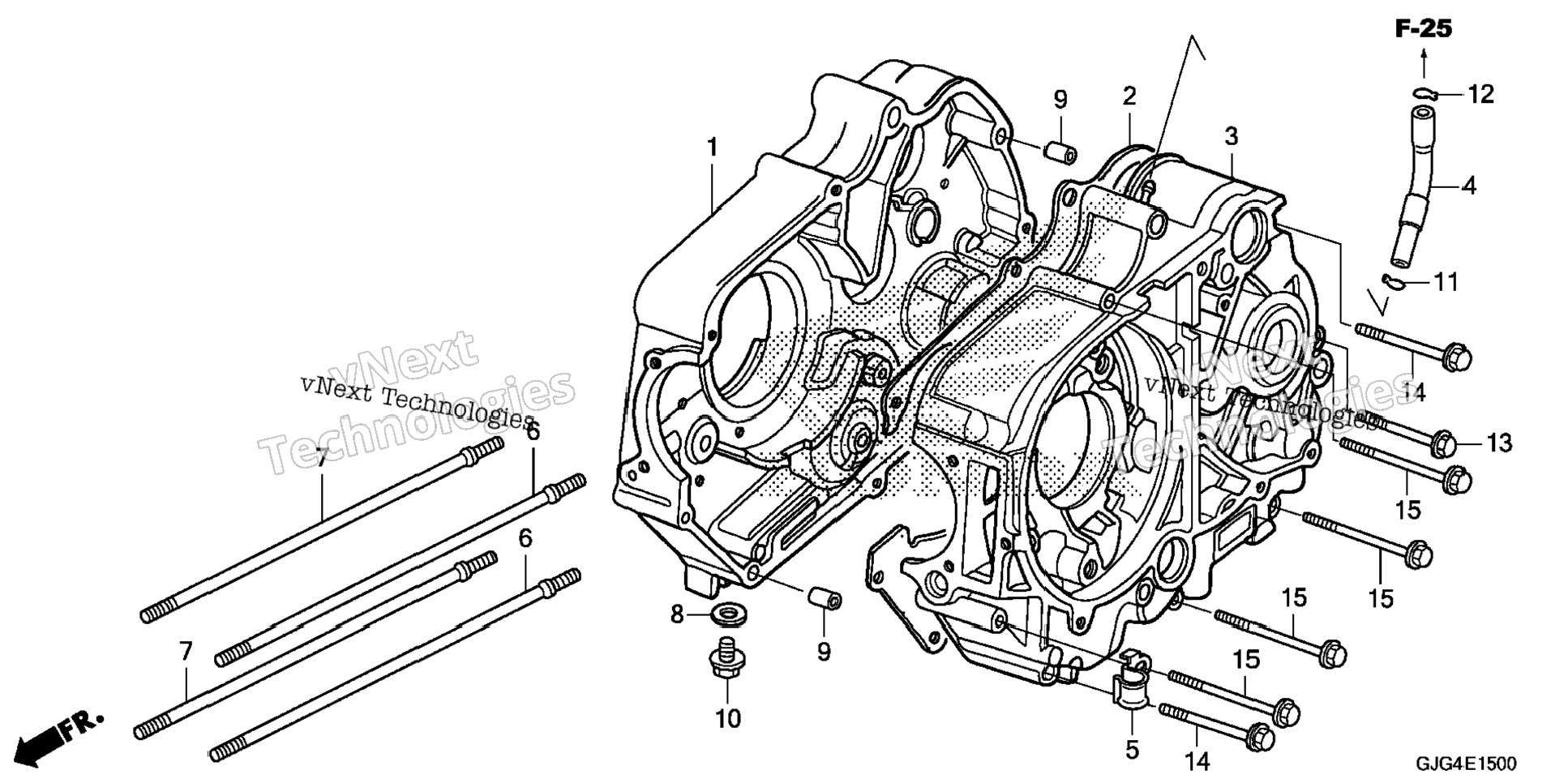

| 1 | 11100-GEL-A80 | CRANKCASE, R. | 1 шт. | — | |
|
| 2 | 11191-GW8-682 | GASKET, CRANKCASE | 1 шт. | — | |
|
| 3 | 11200-GEL-A80 | CRANKCASE, L. | 1 шт. | — | |
|
| 4 | 15761-GEL-A80 | TUBE A, BREATHER | 1 шт. | — | |
|
| 5 | 16106-KVR-C00 | CLIP, TUBE | 1 шт. | — | |
|
| 6 | 90031-GEL-A80 | BOLT A, CYLINDER STUD (6X196) | 2 шт. | — | |
|
| 7 | 90032-GEL-A80 | BOLT B, CYLINDER STUD (6X188) | 2 шт. | — | |
|
| 8 | 90407-259-000 | GASKET, DRAIN PETCOCK (12.5X20) | 1 шт. | — | |
|
| 9 | 90703-KVR-C00 | PIN, DOWEL SPECIAL (10X14) | 2 шт. | — | |
|
| 10 | 92800-12000 | BOLT, DRAIN PLUG (12MM) | 1 шт. | — | |
|
| 11 | 95002-50000 | CLIP, TUBE (C9) | 1 шт. | — | |
|
| 12 | 95002-70000 | CLIP, TUBE (C11) | 1 шт. | — | |
|
| 13 | 96001-06050-00 | BOLT, FLANGE (6X50) BOLT, FLANGE (6X55) | 1 шт. | — | |
|
| 14 | 96001-06060-00 | BOLT, FLANGE (6X60) | 2 шт. | — | |
|
| 15 | 96001-06065-00 | BOLT, FLANGE (6X65) | 4 шт. | — | |
|
