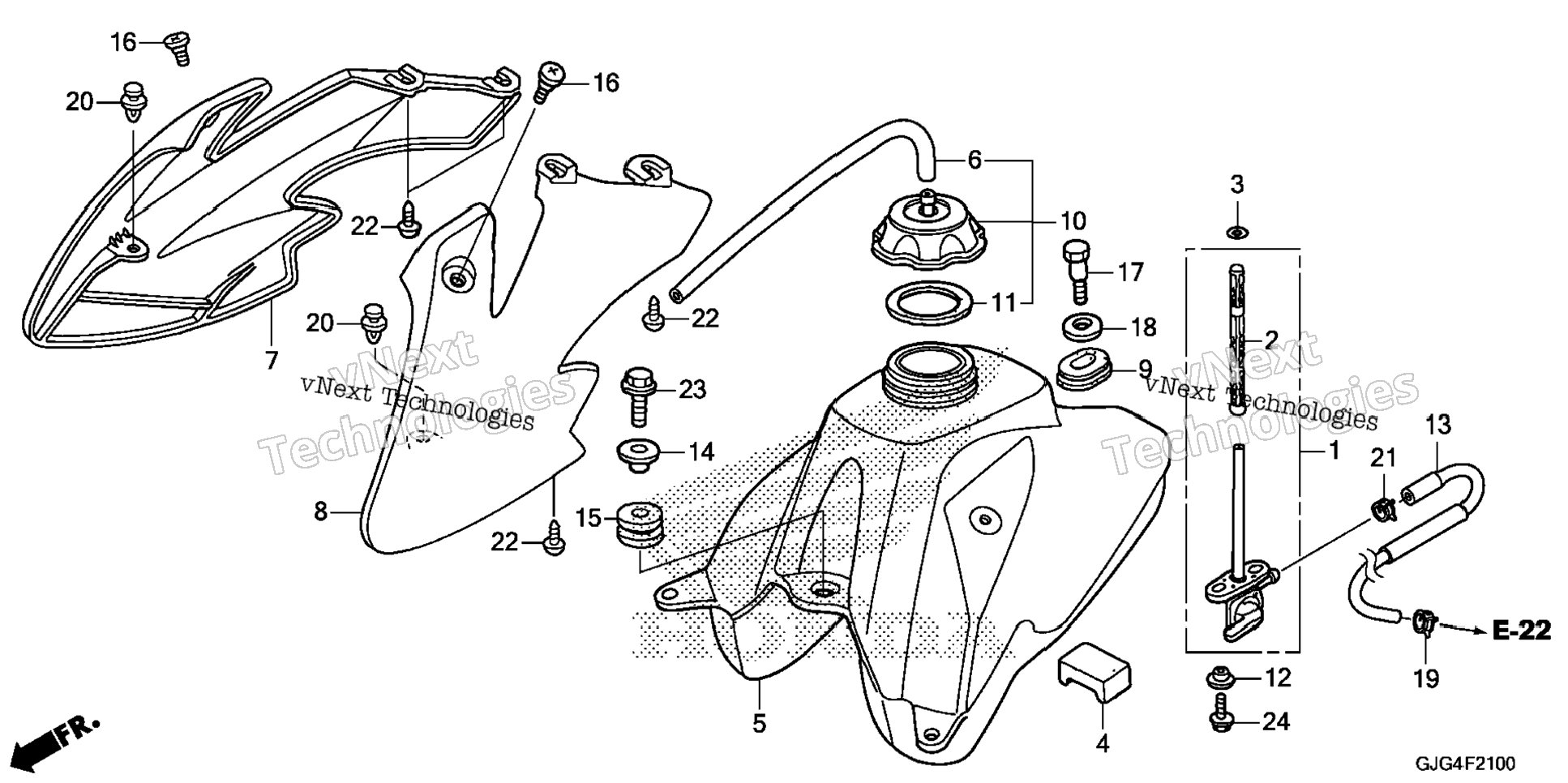

| 1 | 16950-GEL-701 | PETCOCK ASSY. | 1 шт. | — | |
|
| 2 | 16952-GEL-701 | SCREEN SET, FUEL STRAINER | 1 шт. | — | |
|
| 3 | 16997-467-000 | O-RING (11.8X3.55) | 1 шт. | — | |
|
| 4 | 17504-GEL-700 | RUBBER, TANK MOUNTING | 1 шт. | — | |
|
| 5 | 17510-GEL-A40 | TANK, FUEL | 1 шт. | — | |
|
| 6 | 17521-429-000 | TUBE, FUEL CAP BREATHER | 1 шт. | — | |
|
| 7 | 17545-GJG-C60ZA | SHROUD SET *NH196* | 1 шт. | — | |
|
| 8 | 17555-GJG-C60ZA | SHROUD SET *NH196* | 1 шт. | — | |
|
| 9 | 17613-GF8-000 | CUSHION, RR. FUEL TANK | 1 шт. | — | |
|
| 10 | 17620-GEL-770 | CAP ASSY., FUEL TANK | 1 шт. | — | |
|
| 11 | 17624-GEL-770 | GASKET, FUEL CAP | 1 шт. | — | |
|
| 12 | 17626-467-000 | COLLAR, FUEL TANK SETTING | 2 шт. | — | |
|
| 13 | 17681-GEL-A40 | TUBE, FUEL | 1 шт. | — | |
|
| 14 | 80101-KB7-600 | COLLAR (8X12) | 1 шт. | — | |
|
| 15 | 80103-MG2-000 | CUSHION, RR. FENDER | 1 шт. | — | |
|
| 16 | 90104-GEL-A80 | SCREW, SPECIAL (5MM) | 2 шт. | — | |
|
| 17 | 90138-GEL-A80 | BOLT (8X21) | 1 шт. | — | |
|
| 18 | 90501-GEL-A80 | WASHER (10MM) | 1 шт. | — | |
|
| 19 | 90652-KSJ-A21 | CLAMP, TUBE (8.0) | 1 шт. | — | |
|
| 20 | 90653-HC4-900 | CLIP, SPLASH GUARD (Honda Code 3795994) | 2 шт. | — | |
|
| 21 | 90653-KSJ-A20 | CLAMP, TUBE (8.5) | 1 шт. | — | |
|
| 22 | 93903-25320 | SCREW, TAPPING (5X16) | 4 шт. | — | |
|
| 23 | 95701-08025-00 | BOLT, FLANGE (8X25) | 1 шт. | — | |
|
| 24 | 96001-06014-00 | BOLT, FLANGE (6X14) | 2 шт. | — | |
|
