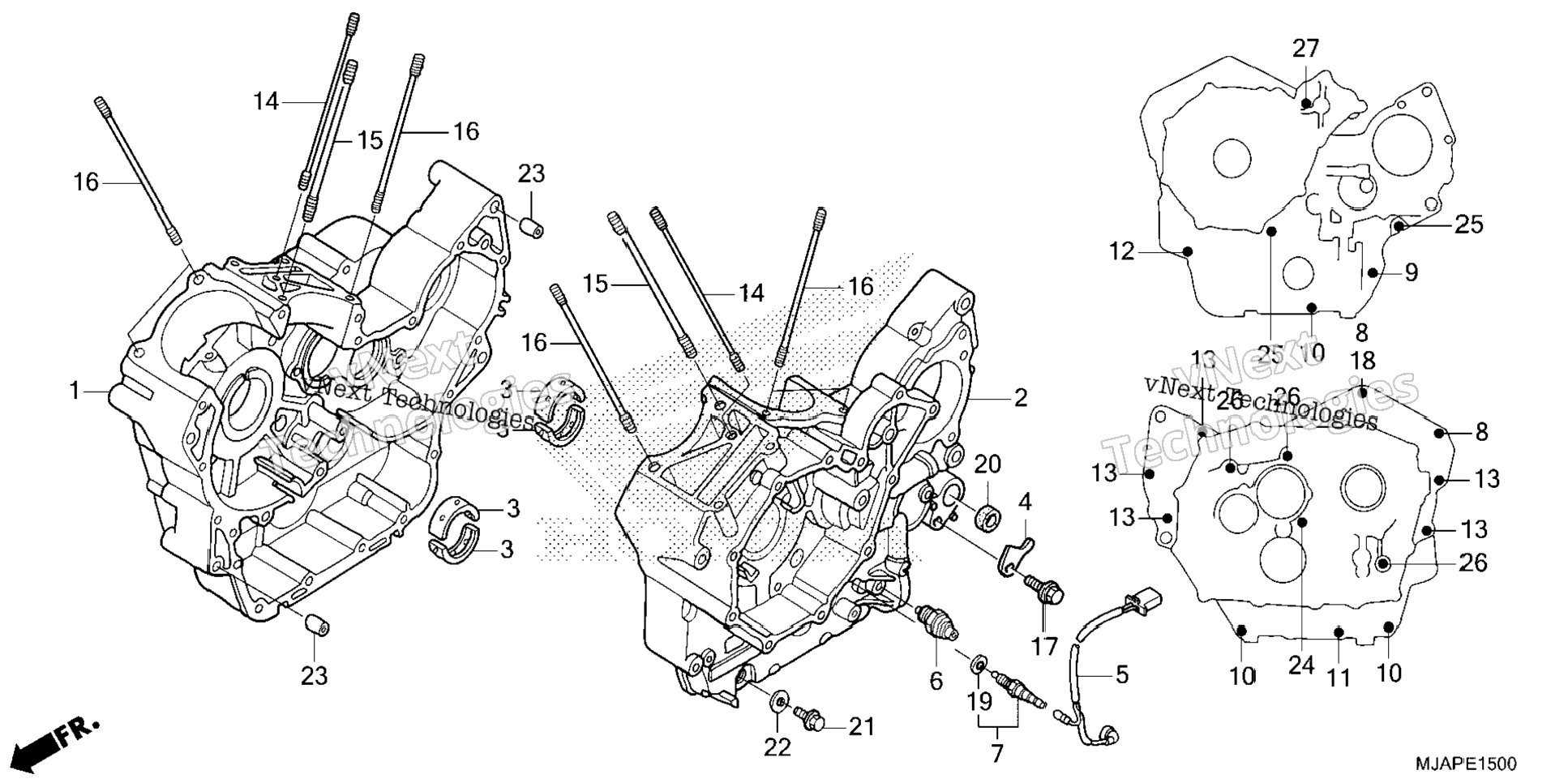

| 1 | 11100-MFE-A40 | CRANKCASE, R. | 1 шт. | — | |
|
| 2 | 11200-MFE-A40 | CRANKCASE, L. | 1 шт. | — | |
|
| 3 | 13321-MEG-003 | BEARING A, CRANKSHAFT (BLUE) | 4 шт. | — | |
|
| 3 | 13322-MEG-003 | BEARING B, CRANKSHAFT (BLACK) | 4 шт. | — | |
|
| 3 | 13323-MEG-003 | BEARING C, CRANKSHAFT (BROWN) | 4 шт. | — | |
|
| 3 | 13324-MEG-003 | BEARING D, CRANKSHAFT (GREEN) | 4 шт. | — | |
|
| 3 | 13325-MEG-305 | BEARING E, CRANKSHAFT (OVER SIZE) (YELLOW) (Optional). | 4 шт. | — | |
|
| 3 | 13326-MEG-305 | BEARING F, CRANKSHAFT (OVER SIZE) (PINK) (Optional). | 4 шт. | — | |
|
| 3 | 13327-MEG-305 | BEARING G, CRANKSHAFT (OVER SIZE) (RED) (Optional). | 4 шт. | — | |
|
| 4 | 24612-MAL-600 | PLATE, SPINDLE | 1 шт. | — | |
|
| 5 | 32101-MFE-640 | SUB-HARNESS A | 1 шт. | — | |
|
| 6 | 35500-MJ4-024 | SWITCH ASSY., OIL PRESSURE (DENSO) | 1 шт. | — | |
|
| 7 | 35600-MAW-601 | SWITCH ASSY., NEUTRAL (TEC) | 1 шт. | — | |
|
| 8 | 90002-MEG-000 | BOLT, FLANGE (8X140) | 2 шт. | — | |
|
| 9 | 90006-GHB-700 | BOLT, FLANGE (6X35) (NSHF) | 1 шт. | — | |
|
| 10 | 90006-GHB-730 | BOLT, FLANGE (6X50) (NSHF) (Honda Code 7498413) | 3 шт. | — | |
|
| 11 | 90006-GHB-790 | BOLT, FLANGE (6X80) (NSHF) | 1 шт. | — | |
|
| 12 | 90008-MEW-920 | BOLT, FLANGE (8X70) | 1 шт. | — | |
|
| 13 | 90010-MEG-000 | BOLT, FLANGE (8X80) | 5 шт. | — | |
|
| 14 | 90011-MZ8-B40 | BOLT, STUD (8X189) | 2 шт. | — | |
|
| 15 | 90012-MCB-610 | BOLT, STUD (12X177) | 2 шт. | — | |
|
| 16 | 90013-MZ8-B40 | BOLT, STUD (10X177) | 6 шт. | — | |
|
| 17 | 90014-952-000 | BOLT, FLANGE (6X14) (CT200) | 1 шт. | — | |
|
| 18 | 90442-MR1-770 | WASHER, SEALING (8MM) | 1 шт. | — | |
|
| 19 | 90443-KR0-000 | WASHER, NEUTRAL SWITCH | 1 шт. | — | |
|
| 20 | 91204-425-003 | OIL SEAL (12.5X25X8) (ARAI) | 1 шт. | — | |
|
| 21 | 92800-14000 | BOLT, DRAIN PLUG (14MM) | 1 шт. | — | |
|
| 22 | 94109-14000 | WASHER, DRAIN PLUG (14MM) | 1 шт. | — | |
|
| 23 | 94301-14200 | PIN A, DOWEL (14X20) | 2 шт. | — | |
|
| 24 | 95701-08065-00 | BOLT, FLANGE (8X65) | 1 шт. | — | |
|
| 25 | 95701-08080-00 | BOLT, FLANGE (8X80) | 2 шт. | — | |
|
| 26 | 95701-08080-09 | BOLT, FLANGE (8X80) | 3 шт. | — | |
|
| 27 | 95701-08125-07 | BOLT, FLANGE (8X125) | 1 шт. | — | |
|
| 27 | 95701-08125-00 | BOLT, FLANGE (8X125) | 1 шт. | — | |
|
