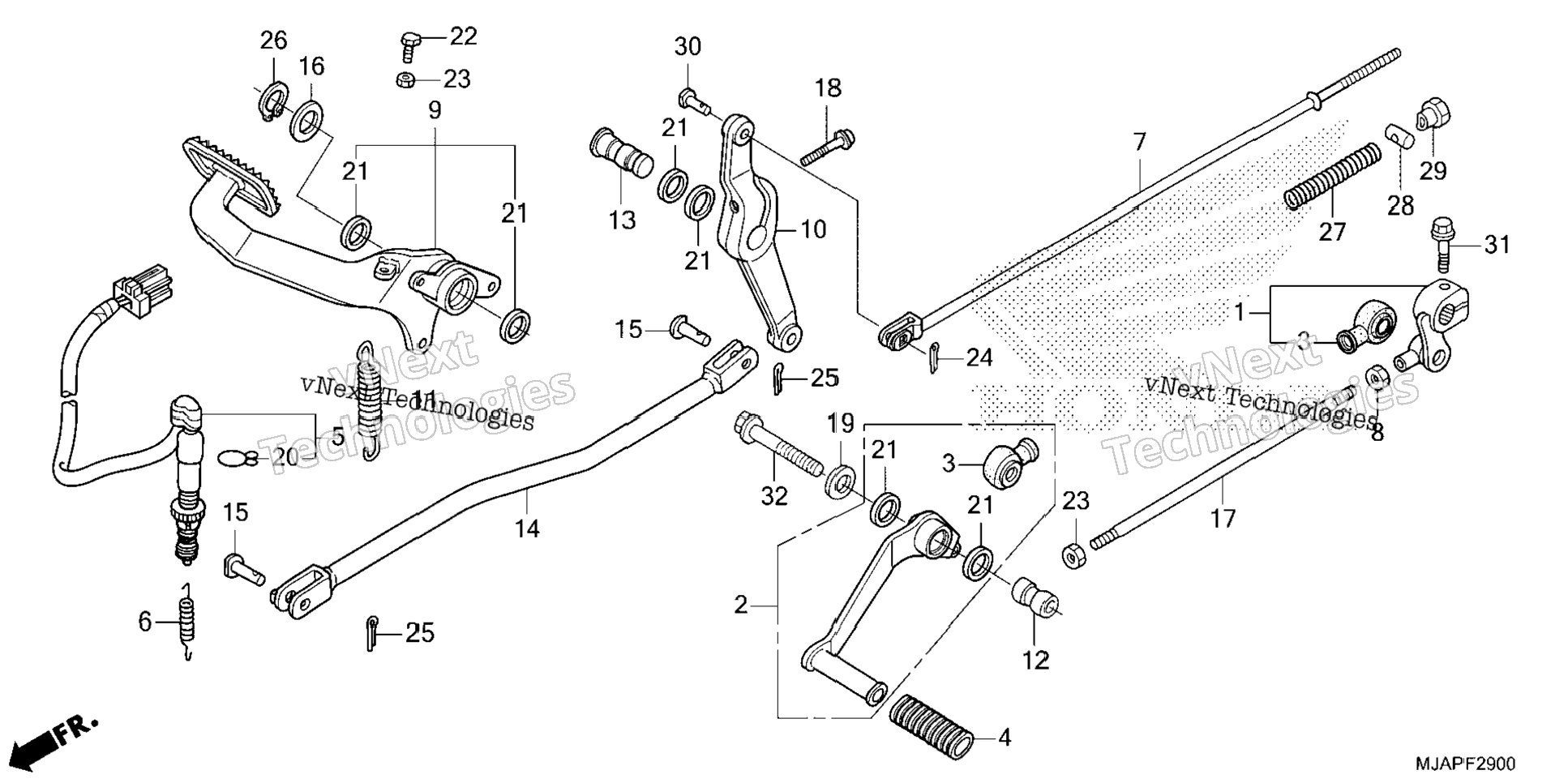

| 1 | 24702-MEG-000 | ARM, GEARSHIFT | 1 шт. | — | |
|
| 2 | 24724-MBW-D21 | COVER, DUST | 2 шт. | — | |
|
| 3 | 24781-371-000 | RUBBER, GEARSHIFT PEDAL | 1 шт. | — | |
|
| 4 | 35350-MEG-003 | SWITCH ASSY., RR. STOP | 1 шт. | — | |
|
| 5 | 35357-KR3-670 | SPRING, STOP SWITCH | 1 шт. | — | |
|
| 6 | 43451-MEG-000 | ROD, RR. BRAKE | 1 шт. | — | |
|
| 7 | 45423-KA4-700 | NUT, HEX. (6MM) (LEFT HAND THREAD) | 1 шт. | — | |
|
| 8 | 46500-MFE-A40 | PEDAL ASSY., RR. BRAKE | 1 шт. | — | |
|
| 9 | 46511-MEG-000 | ARM, RR. BRAKE MIDDLE | 1 шт. | — | |
|
| 10 | 46514-KZ9-000 | SPRING, BRAKE PEDAL | 1 шт. | — | |
|
| 11 | 46515-MM8-000 | COLLAR, RR. BRAKE PIVOT | 1 шт. | — | |
|
| 12 | 46517-MEG-000 | SHAFT, RR. BRAKE PIVOT | 1 шт. | — | |
|
| 13 | 46540-MEG-000 | ROD, RR. BRAKE MIDDLE | 1 шт. | — | |
|
| 14 | 46545-MBA-000 | PIN, MIDDLE ROD JOINT | 2 шт. | — | |
|
| 15 | 53312-657-000 | BUSH, WASHER | 1 шт. | — | |
|
| 16 | 90065-MEG-000 | BOLT, TIE ROD | 1 шт. | — | |
|
| 17 | 90133-MAT-000 | BOLT, FLANGE SOCKET (8X32) | 1 шт. | — | |
|
| 18 | 90601-KAF-003 | CLIP, SWITCH COVER | 1 шт. | — | |
|
| 19 | 91206-968-003 | DUST SEAL (17X23X3) (NOK) | 6 шт. | — | |
|
| 20 | 92101-06020-0A | BOLT, HEX. (6X20) BOLT, FLANGE (6X20) | 1 шт. | — | |
|
| 21 | 94002-06000-0S | NUT, HEX. (6MM) | 2 шт. | — | |
|
| 22 | 94201-20120 | PIN, COTTER (2.0X12) | 1 шт. | — | |
|
| 23 | 94201-20150 | PIN, COTTER (2.0X15) | 2 шт. | — | |
|
| 24 | 94511-15000 | CIRCLIP (OUTER) (15MM) | 1 шт. | — | |
|
| 25 | 95014-73100 | SPRING A, BRAKE ROD | 1 шт. | — | |
|
| 26 | 95015-32001 | JOINT B, BRAKE ARM | 1 шт. | — | |
|
| 27 | 95015-42000 | NUT B, BRAKE ROD ADJUSTING | 1 шт. | — | |
|
| 28 | 95015-53000 | PIN, JOINT (C) | 1 шт. | — | |
|
| 29 | 95701-06020-00 | BOLT, FLANGE (6X20) BOLT, SPECIAL FLANGE (6X22) | 1 шт. | — | |
|
