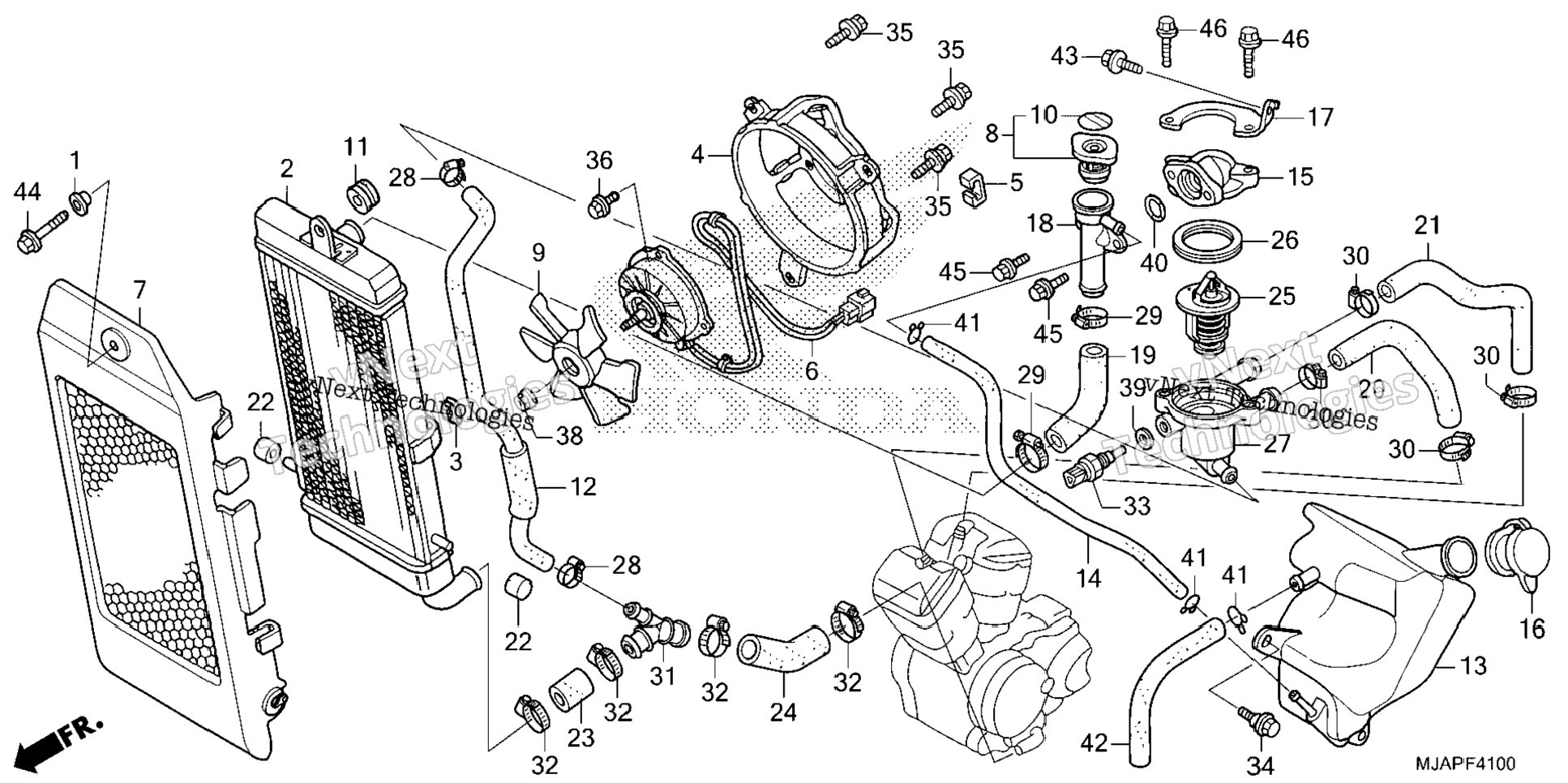

| 1 | 17216-HA7-670 | COLLAR, AIR CLEANER SETTING | 1 шт. | — | |
|
| 2 | 19010-MFE-305 | RADIATOR (COO) | 1 шт. | — | |
|
| 3 | 19010-MFE-641 | RADIATOR | 1 шт. | — | |
|
| 4 | 19014-KEA-003 | NUT, SETTING (6MM) | 2 шт. | — | |
|
| 5 | 19015-MBA-003 | SHROUD | 1 шт. | — | |
|
| 6 | 19017-PK1-004 | CLIP, HARNESS (T.RAD) | 1 шт. | — | |
|
| 7 | 19030-MFE-641 | MOTOR ASSY., FAN | 1 шт. | — | |
|
| 8 | 19032-MEG-000 | GRILLE, RADIATOR | 1 шт. | — | |
|
| 9 | 19037-GEE-710 | CAP, RADIATOR | 1 шт. | — | |
|
| 10 | 19040-MF5-751 | FAN, COOLING (TOYO) | 1 шт. | — | |
|
| 11 | 19046-PAA-A00 | LABEL, RADIATOR CAP | 1 шт. | — | |
|
| 12 | 19051-KA3-710 | RUBBER, RADIATOR MOUNTING | 1 шт. | — | |
|
| 13 | 19071-MFE-640 | HOSE, BYPASS | 1 шт. | — | |
|
| 14 | 19101-MEG-000 | TANK, RESERVE | 1 шт. | — | |
|
| 15 | 19102-MEG-000 | HOSE, RESERVE TANK | 1 шт. | — | |
|
| 16 | 19103-MBA-000 | CAP, THERMOSTAT | 1 шт. | — | |
|
| 17 | 19104-MB0-700 | CAP, RESERVE TANK | 1 шт. | — | |
|
| 18 | 19105-MFE-640 | STAY, THERMOSTAT CASE | 1 шт. | — | |
|
| 19 | 19106-MFE-641 | NECK, FILLER | 1 шт. | — | |
|
| 20 | 19107-MFE-640 | HOSE, RADIATOR (UPPER) | 1 шт. | — | |
|
| 21 | 19108-MFE-640 | HOSE, FR. OUTLET WATER | 1 шт. | — | |
|
| 22 | 19110-MFE-640 | HOSE, RR. OUTLET WATER | 1 шт. | — | |
|
| 23 | 19112-MF5-840 | MOUNT, RADIATOR (LOWER) | 2 шт. | — | |
|
| 24 | 19115-MEG-A60 | HOSE A, RADIATOR (LOWER) | 1 шт. | — | |
|
| 25 | 19116-MEG-A60 | HOSE B, RADIATOR (LOWER) | 1 шт. | — | |
|
| 26 | 19300-MCH-A00 | THERMOSTAT ASSY. | 1 шт. | — | |
|
| 27 | 19305-KV3-010 | RUBBER, THERMOSTAT | 1 шт. | — | |
|
| 28 | 19311-MFE-640 | CASE, THERMOSTAT | 1 шт. | — | |
|
| 29 | 19504-KY1-003 | CLAMP, WATER HOSE (25MM) | 2 шт. | — | |
|
| 30 | 19505-ML3-770 | CLAMP, WATER HOSE | 2 шт. | — | |
|
| 31 | 19506-KS6-700 | CLAMP B, WATER HOSE | 4 шт. | — | |
|
| 32 | 19507-MFE-640 | JOINT, THREE WAY HOSE | 1 шт. | — | |
|
| 33 | 19509-MM5-003 | CLAMP, R. RADIATOR HOSE | 4 шт. | — | |
|
| 34 | 37870-KRJ-901 | SENSOR ASSY., WATER TEMPERATURE | 1 шт. | — | |
|
| 35 | 90111-162-000 | BOLT, FLANGE (6MM) | 1 шт. | — | |
|
| 36 | 90120-KCR-003 | BOLT-WASHER (6X16) | 3 шт. | — | |
|
| 37 | 90196-MBB-003 | BOLT, FLANGE (5X10) | 3 шт. | — | |
|
| 38 | 90315-MK3-003 | NUT, SERRATE (5MM) | 1 шт. | — | |
|
| 39 | 90454-MC7-000 | WASHER, SPECIAL (12MM) | 1 шт. | — | |
|
| 40 | 94608-30000 | O-RING (23X2.4) | 1 шт. | — | |
|
| 41 | 95002-70000 | CLIP, TUBE (C11) | 3 шт. | — | |
|
| 42 | 95005-70003-30M | BULK HOSE, VACUUM (7X3000) (7X730) | 1 шт. | — | |
|
| 43 | 95701-06012-00 | BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12) | 1 шт. | — | |
|
| 44 | 95701-06028-07 | BOLT, FLANGE (6X28) | 1 шт. | — | |
|
| 45 | 96001-06012-00 | BOLT, FLANGE (6X12) | 2 шт. | — | |
|
| 46 | 96001-06020-00 | BOLT, FLANGE (6X20) | 2 шт. | — | |
|
