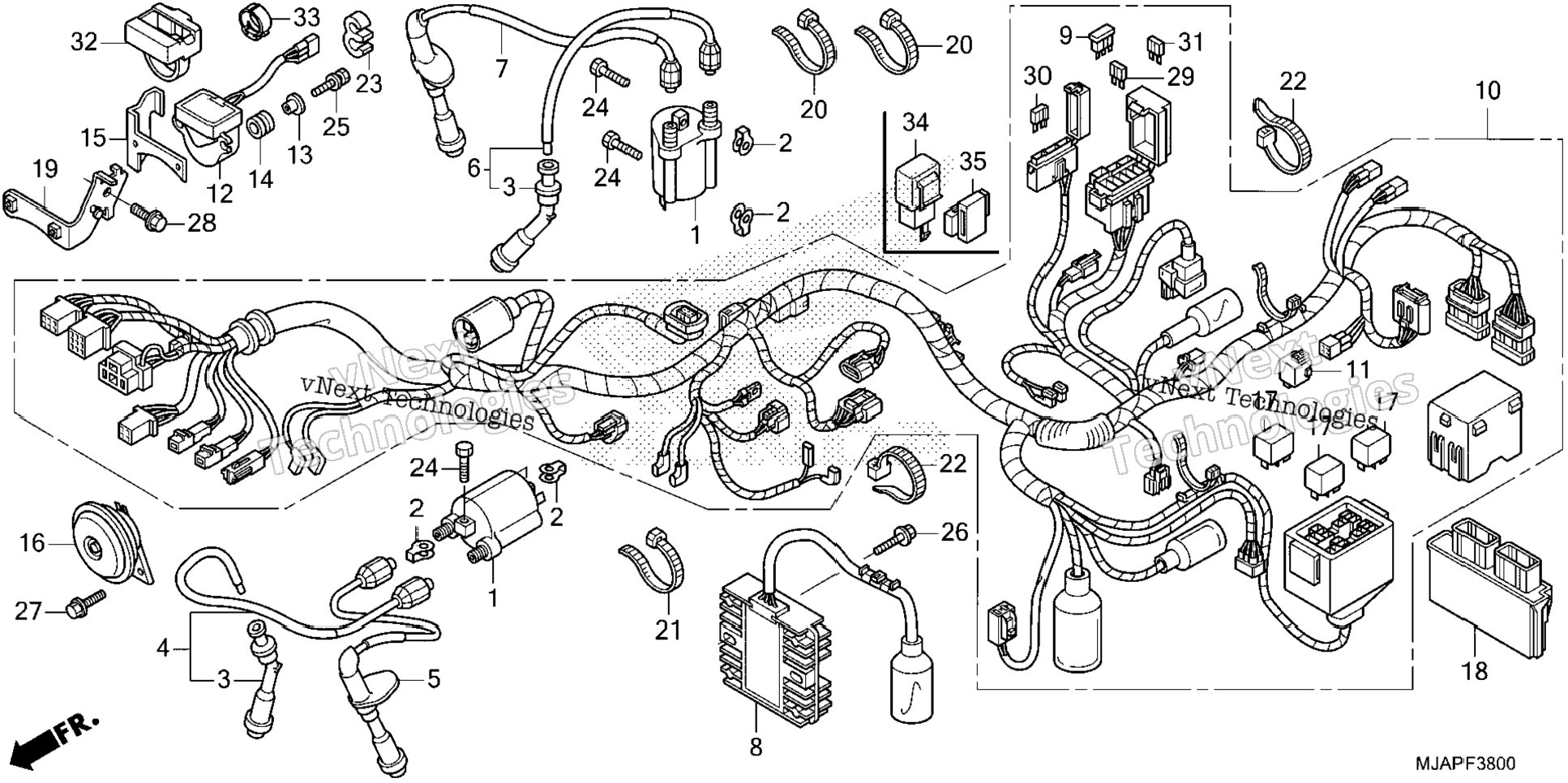

| 1 | 30510-MCC-003 | COIL, IGNITION | 2 шт. | — | |
|
| 2 | 30520-ML7-000 | SPACER, IGNITION COIL | 4 шт. | — | |
|
| 3 | 30700-KK6-153 | CAP ASSY., NOISE SUPPRESSOR | 2 шт. | — | |
|
| 4 | 30771-MEG-000 | WIRE ASSY., R. FR. IGNITION | 1 шт. | — | |
|
| 5 | 30772-MEG-000 | WIRE ASSY., L. FR. IGNITION | 1 шт. | — | |
|
| 6 | 30773-MFE-641 | WIRE ASSY., L. RR. IGNITION | 1 шт. | — | |
|
| 7 | 30774-MFE-641 | WIRE ASSY., R. RR. IGNITION | 1 шт. | — | |
|
| 8 | 31600-MFE-641 | RECTIFIER ASSY., REGULATE | 1 шт. | — | |
|
| 9 | 31730-MAS-601 | DIODE ASSY., THREE WAY (SUMITOMO) | 1 шт. | — | |
|
| 10 | 32100-MFE-A41 | WIRE HARNESS | 1 шт. | — | |
|
| 11 | 32606-GEV-761 | CAP, DUMMY (4P) (RED) (Honda Code 7679160) | 1 шт. | — | |
|
| 12 | 35161-MJA-A01 | SENSOR, BANK ANGLE | 1 шт. | — | |
|
| 13 | 35162-MN5-003 | COLLAR | 2 шт. | — | |
|
| 14 | 35163-MN5-003 | GROMMET | 2 шт. | — | |
|
| 15 | 35165-MEG-A60 | PLATE, BANK ANGLE SENSOR | 1 шт. | — | |
|
| 16 | 38110-KB1-921 | HORN (HIGH) | 1 шт. | — | |
|
| 17 | 38501-MKP-DN1 | RELAY (MICRO ISO 4P) | 3 шт. | — | |
|
| 18 | 38770-MJA-AQ2 | PGM-FI UNIT | 1 шт. | — | |
|
| 19 | 50128-MEG-A60 | BRACKET, BANK ANGLE SENSOR | 1 шт. | — | |
|
| 20 | 90620-SB2-003 | BAND, WIRE HARNESS | 2 шт. | — | |
|
| 21 | 90651-KV6-003 | BAND, WIRE (165MM) (BLACK) | 1 шт. | — | |
|
| 22 | 90652-KT1-771 | BAND, WIRE (BLACK) | 2 шт. | — | |
|
| 23 | 90658-ZA0-930 | CLIP, HIGH TENSION CORD (L. SIDE) | 1 шт. | — | |
|
| 24 | 92101-06020-4J | BOLT, HEX. (6X20) | 4 шт. | — | |
|
| 25 | 93401-04025-08 | BOLT-WASHER (4X25) | 2 шт. | — | |
|
| 26 | 95701-06020-00 | BOLT, FLANGE (6X20) BOLT, SPECIAL FLANGE (6X22) | 2 шт. | — | |
|
| 27 | 95701-08012-07 | BOLT, FLANGE (8X12) | 1 шт. | — | |
|
| 28 | 96001-06010-00 | BOLT, FLANGE (6X10) | 1 шт. | — | |
|
| 29 | 98200-41000 | FUSE, MINI (10A) | 6 шт. | — | |
|
| 30 | 98200-41500 | FUSE, MINI (15A) (Honda Code 4853438) | 2 шт. | — | |
|
| 31 | 98200-42000 | FUSE, MINI (20A) | 2 шт. | — | |
|
| 32 | 35165-MJA-A00 | CUSHION, BANK ANGLE | 1 шт. | — | |
|
| 33 | 90683-KJ2-003 | CLIP, WIRE HARNESS | 1 шт. | — | |
|
| 34 | 38301-MEG-000 | RELAY, TURN SIGNAL (MITSUBA) | 1 шт. | — | |
|
| 35 | 38306-GE7-000 | SUSPENSION, TURN SIGNAL RELAY | 1 шт. | — | |
|
