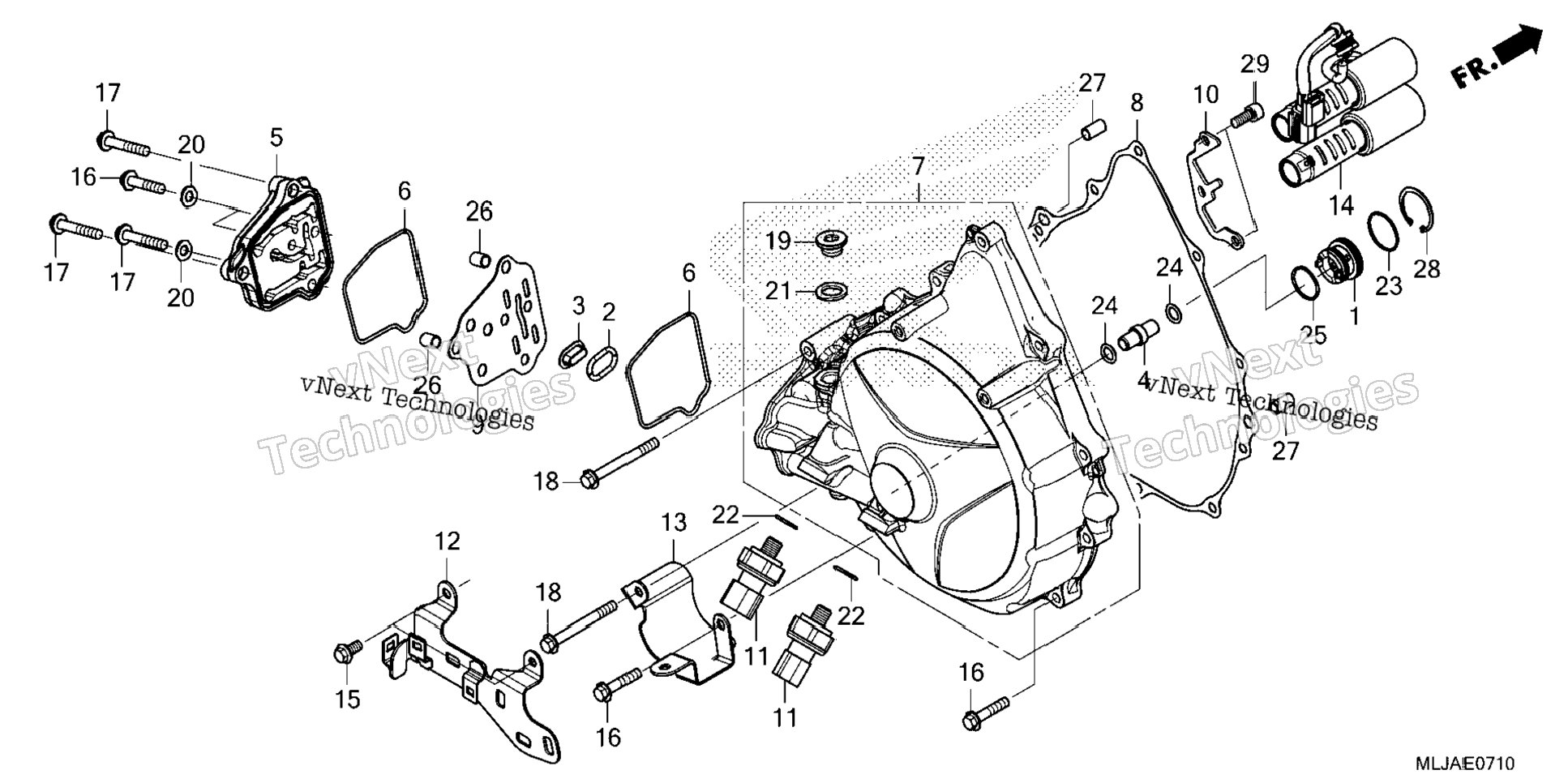

| 1 | 11332-MGS-D20 | COLLAR, OIL GUIDE | 1 шт. | — | |
|
| 2 | 11371-MGS-D20 | GASKET, BASE | 1 шт. | — | |
|
| 3 | 11372-MGS-D20 | FILTER, SPOOL VALVE | 1 шт. | — | |
|
| 4 | 15112-MKC-A00 | JOINT, LINE (DCT) | 1 шт. | — | |
|
| 5 | 27110-MKC-A00 | COVER, LINEAR SOLENOID | 1 шт. | — | |
|
| 6 | 27112-MKC-A00 | GASKET, LINEAR SOLENOID | 2 шт. | — | |
|
| 7 | 27310-MKC-A00 | COVER, CLUTCH | 1 шт. | — | |
|
| 8 | 27312-MKC-A01 | GASKET, CLUTCH COVER | 1 шт. | — | |
|
| 9 | 27315-MKC-A00 | PLATE, SEPARATOR | 1 шт. | — | |
|
| 10 | 27321-MKC-A00 | PLATE, SOLENOID STOPPER | 1 шт. | — | |
|
| 11 | 28660-RFH-013 | SENSOR ASSY., OIL PRESSURE | 2 шт. | — | |
|
| 12 | 32150-MKC-A00 | STAY, CONNECTOR A | 1 шт. | — | |
|
| 13 | 32159-MKC-A00 | STAY, SENSOR GUARD | 1 шт. | — | |
|
| 14 | 38610-MKC-A01 | SOLENOID ASSY., LINEAR | 1 шт. | — | |
|
| 15 | 90005-GHB-610 | BOLT, FLANGE (6X12) | 2 шт. | — | |
|
| 16 | 90017-GHB-680 | BOLT, FLANGE (6X28) (NSHF) | 12 шт. | — | |
|
| 17 | 90017-GHB-700 | BOLT, FLANGE (6X35) (NSHF) | 3 шт. | — | |
|
| 18 | 90017-GHB-740 | BOLT, FLANGE (6X55) (NSHF) | 2 шт. | — | |
|
| 19 | 90031-MJP-G80 | BOLT, SEALING (12X8) | 1 шт. | — | |
|
| 20 | 90488-425-000 | WASHER, SEALING (6MM) | 3 шт. | — | |
|
| 21 | 90545-KF0-000 | WASHER (12MM) | 1 шт. | — | |
|
| 22 | 91301-MEH-003 | O-RING (13X1.5) | 2 шт. | — | |
|
| 23 | 91302-MGS-D20 | O-RING (35X2.2) | 1 шт. | — | |
|
| 24 | 91311-PA9-004 | O-RING (7.7X1.9) (NOK) | 2 шт. | — | |
|
| 25 | 91344-PC9-004 | O-RING (29X2.4) (NOK) | 1 шт. | — | |
|
| 26 | 94301-08100 | PIN A, DOWEL (8X10) | 2 шт. | — | |
|
| 27 | 94301-08140 | PIN, DOWEL (8X14) (Honda Code 0069310) | 2 шт. | — | |
|
| 28 | 94520-40150 | CIRCLIP (INNER) (40) | 1 шт. | — | |
|
| 29 | 96600-06014-00 | BOLT, SOCKET (6X14) | 2 шт. | — | |
|
