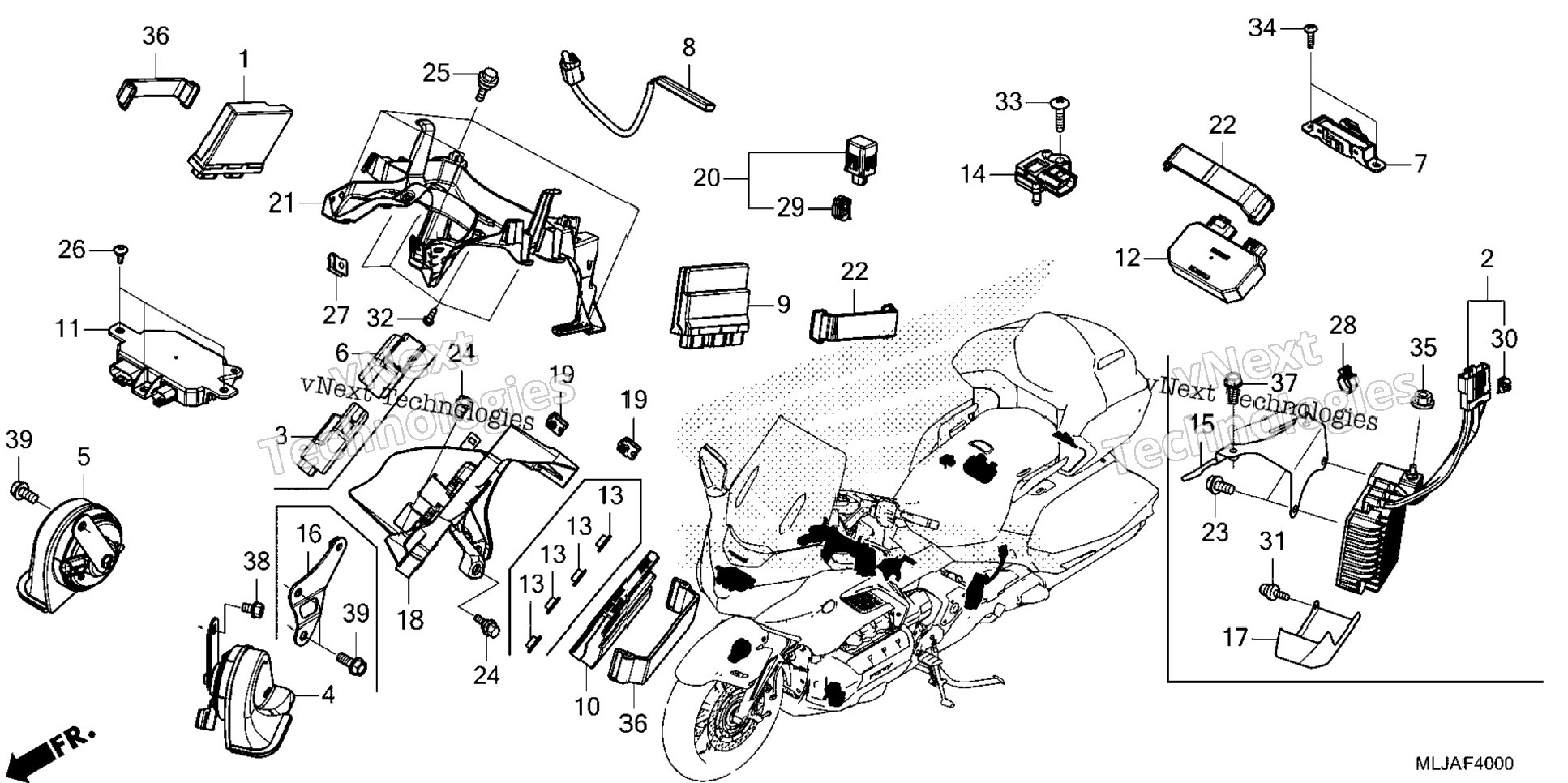

| 1 | 35500-MKC-A02 | SMART UNIT | 1 шт. | — | |
|
| 4 | 38110-MKC-A01 | HORN ASSY. (HIGH) | 1 шт. | — | |
|
| 5 | 38120-MKC-A01 | HORN ASSY. (LOW) | 1 шт. | — | |
|
| 7 | 38387-TY0-J01 | ANTENNA ASSY., LF (FR) (FOR RR.) | 1 шт. | — | |
|
| 8 | 38389-MKC-A01 | ANTENNA ASSY., LF (FR) | 1 шт. | — | |
|
| 9 | 38770-MKC-AE1 | PGM-FI UNIT (DCT) | 1 шт. | — | |
|
| 10 | 38780-MKC-AE1 | PGM-DCT UNIT | 1 шт. | — | |
|
| 11 | 38950-MKC-L01 | CONTROL UNIT, FR. | 1 шт. | — | |
|
| 12 | 38960-MKC-L01 | CONTROL UNIT, RR. | 1 шт. | — | |
|
| 14 | 46401-TM8-A01 | SENSOR A, MASTER POWER PRESSURE | 1 шт. | — | |
|
| 18 | 58150-MKC-A00 | STAY, ELECTRIC UNIT | 1 шт. | — | |
|
| 19 | 64521-MN5-000 | NUT, CLIP (4MM) | 2 шт. | — | |
|
| 20 | 74940-SZW-003 | BUZZER ASSY., SMART | 1 шт. | — | |
|
| 22 | 89105-MCA-000 | BAND, TOOL SETTING (183MM) | 2 шт. | — | |
|
| 24 | 90106-K29-900 | BOLT, FLANGE (6MM) | 2 шт. | — | |
|
| 26 | 90114-MKC-A00 | SCREW, SPECIAL (5X15) | 3 шт. | — | |
|
| 29 | 91534-SWA-003 | CLIP, CONNECTOR (DARK GRAY) | 1 шт. | — | |
|
| 33 | 93903-25480 | SCREW, TAPPING (5X20) | 1 шт. | — | |
|
| 34 | 93903-34480 | SCREW, TAPPING (4X16) | 2 шт. | — | |
|
| 36 | 95012-17001 | BAND F, BATTERY (155MM) | 2 шт. | — | |
|
| 38 | 95701-08012-08 | BOLT, FLANGE (8X12) | 1 шт. | — | |
|
| 39 | 95701-08020-08 | BOLT, FLANGE (8X20) | 1 шт. | — | |
|
