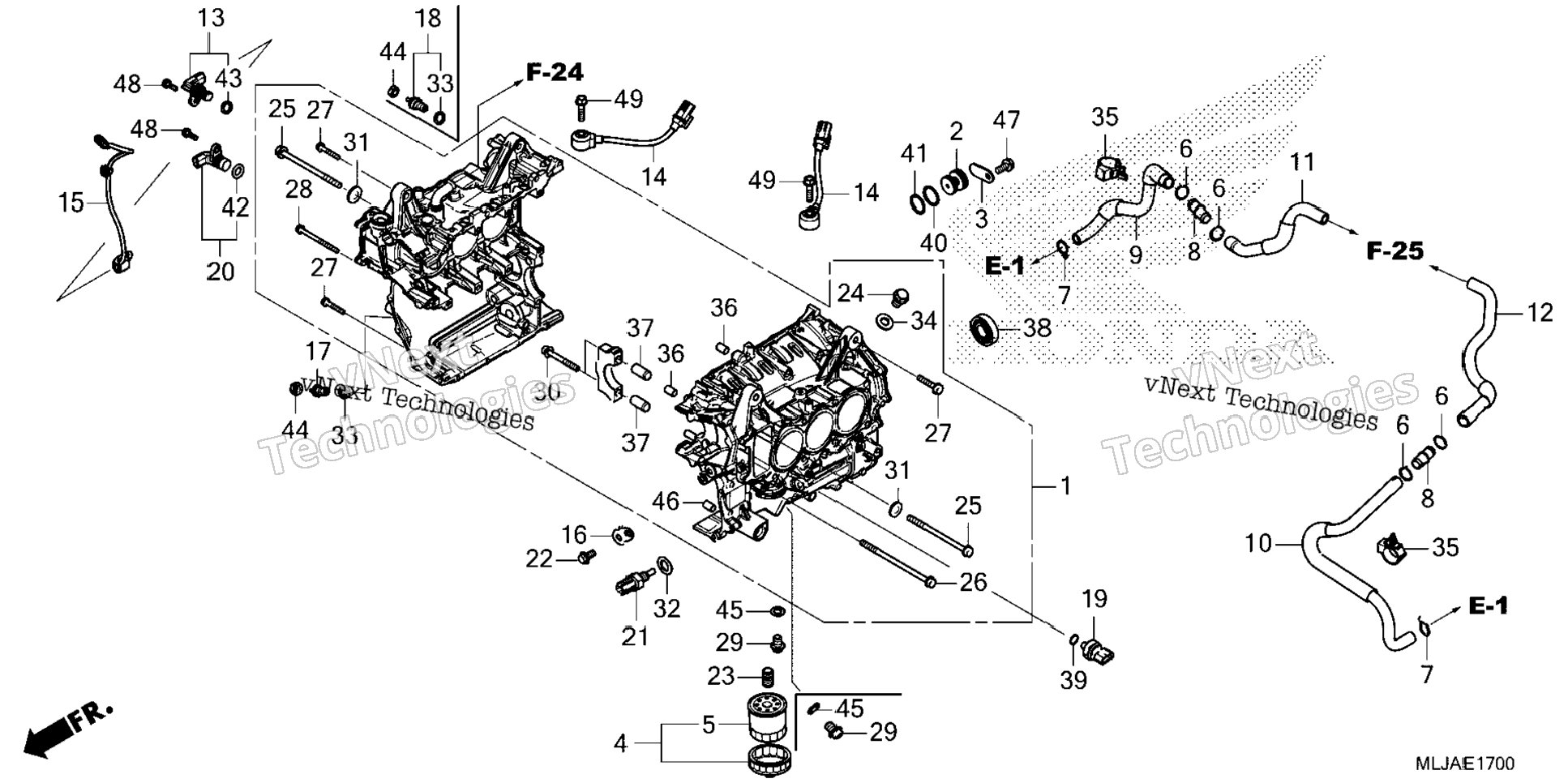

| 1 | 11000-MKC-A00 | BLOCK ASSY., CYLINDER | 1 шт. | — | |
|
| 2 | 11216-MKC-A00 | PLUG, SEALING | 1 шт. | — | |
|
| 3 | 11217-MKC-A00 | PLATE, MAIN GALLERY | 1 шт. | — | |
|
| 4 | 15010-MKR-305 | FILTER SET, OIL (Optional). | 1 шт. | — | |
|
| 5 | 15410-MFJ-D02 | FILTER, OIL (WAKO FILTER) | 1 шт. | — | |
|
| 6 | 17366-MJ0-000 | CLIP B, TUBE CLIP, SUB-TANK HOSE | 4 шт. | — | |
|
| 7 | 17724-102-700 | CLIP, SUB-TANK HOSE | 2 шт. | — | |
|
| 8 | 18651-MKC-A00 | JOINT (TWO-WAY) | 2 шт. | — | |
|
| 9 | 18652-MKC-A00 | TUBE, R. AIR INDUCTION A | 1 шт. | — | |
|
| 10 | 18653-MKC-A00 | TUBE, L. AIR INDUCTION A | 1 шт. | — | |
|
| 11 | 18662-MKC-A00 | TUBE, R. AIR INDUCTION B | 1 шт. | — | |
|
| 12 | 18663-MKC-A00 | TUBE, L. AIR INDUCTION B | 1 шт. | — | |
|
| 13 | 28810-R9L-003 | PICK-UP ASSY. | 1 шт. | — | |
|
| 14 | 30530-MKC-A01 | SENSOR, KNOCK | 2 шт. | — | |
|
| 15 | 32109-MKC-A00 | SUB-HARNESS, SPEED SENSOR | 1 шт. | — | |
|
| 16 | 32157-MJM-D00 | STAY, HARNESS CLIP | 1 шт. | — | |
|
| 17 | 35600-MKF-D41 | SWITCH ASSY., NEUTRAL | 1 шт. | — | |
|
| 19 | 37260-MGE-641 | SENSOR, OIL PRESSURE | 1 шт. | — | |
|
| 20 | 37700-K48-A01 | SENSOR ASSY., SPEED | 1 шт. | — | |
|
| 21 | 37750-KPH-701 | SENSOR ASSY., THERMOSTAT OIL (Honda Code 8192445) | 1 шт. | — | |
|
| 22 | 90005-GHB-610 | BOLT, FLANGE (6X12) | 1 шт. | — | |
|
| 23 | 90019-MB0-000 | BOSS, OIL FILTER (Honda Code 1243435) | 1 шт. | — | |
|
| 24 | 90019-MKC-A00 | BOLT, SEALING (8MM) | 1 шт. | — | |
|
| 25 | 90025-MKC-A00 | BOLT, FLANGE (8X120) | 5 шт. | — | |
|
| 26 | 90026-MKC-A00 | BOLT, FLANGE (8X140) | 4 шт. | — | |
|
| 27 | 90031-MKC-A00 | BOLT, FLANGE (6X35) | 9 шт. | — | |
|
| 28 | 90032-MKC-A00 | BOLT, FLANGE (6X75) | 1 шт. | — | |
|
| 29 | 90043-MKC-A00 | BOLT, DRAIN PLUG (12X15) | 2 шт. | — | |
|
| 30 | 90049-MKC-A00 | BOLT-WASHER (10X80) | 8 шт. | — | |
|
| 31 | 90441-ME9-000 | WASHER, SEALING (8MM) | 9 шт. | — | |
|
| 32 | 90443-MB0-000 | WASHER, SEALING (10.2MM) | 1 шт. | — | |
|
| 33 | 90443-MJ6-000 | WASHER, NEUTRAL | 1 шт. | — | |
|
| 34 | 90474-333-000 | WASHER, SEALING (8MM) | 1 шт. | — | |
|
| 35 | 90651-HL3-G01 | CLAMP, TUBE (D18) | 2 шт. | — | |
|
| 36 | 90701-MV9-670 | PIN, DOWEL (10X16) (Honda Code 3906971) | 2 шт. | — | |
|
| 37 | 90715-RZ0-G00 | PIN, DOWEL (12X37) | 8 шт. | — | |
|
| 38 | 91006-HN2-003 | BEARING, RADIAL BALL (6203U SPL.) | 1 шт. | — | |
|
| 39 | 91301-MEH-003 | O-RING (13X1.5) | 1 шт. | — | |
|
| 40 | 91301-P7X-003 | O-RING (19.20X1.90) (NOK) | 1 шт. | — | |
|
| 41 | 91301-PWR-003 | O-RING (16.7X1.9) (NOK) | 1 шт. | — | |
|
| 42 | 91303-MKH-D21 | O-RING B | 1 шт. | — | |
|
| 43 | 91304-RE5-003 | O-RING | 1 шт. | — | |
|
| 44 | 94001-04000-0S | NUT, HEX. (4MM) | 1 шт. | — | |
|
| 45 | 94109-12000 | WASHER, DRAIN PLUG (12MM) | 2 шт. | — | |
|
| 46 | 94303-08140 | PIN C, DOWEL (8X14) | 1 шт. | — | |
|
| 47 | 95701-06014-00 | BOLT, FLANGE (6X14) (Honda Code 2410884) | 1 шт. | — | |
|
| 48 | 95701-06018-00 | BOLT, FLANGE (6X18) BOLT, HEX. (6X18) | 2 шт. | — | |
|
| 49 | 95701-08030-00 | BOLT, FLANGE (8X30) | 2 шт. | — | |
|
