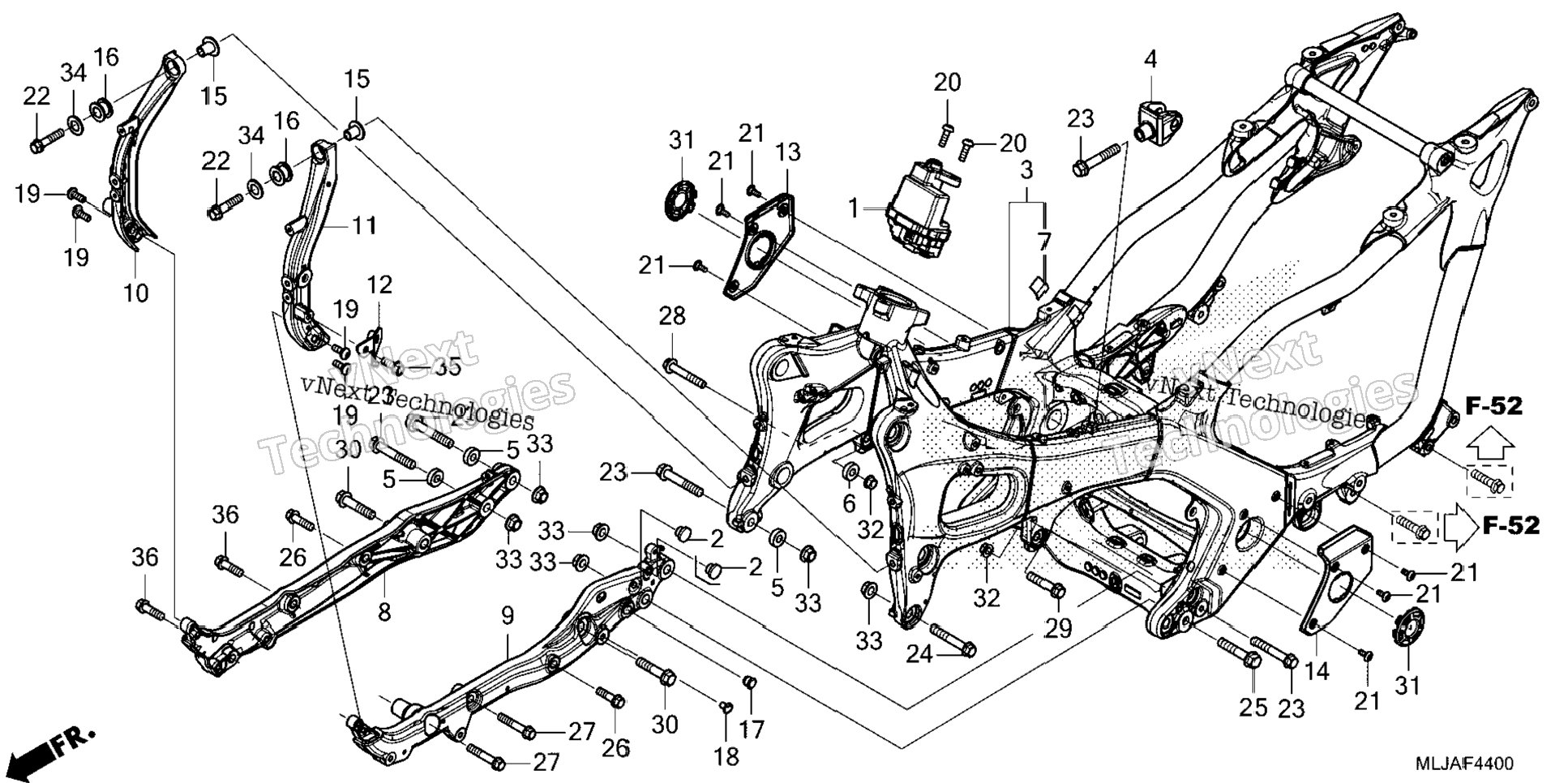

| 1 | 06351-MKC-A01 | LOCK ASSY., STEERING (ELECTRIC) | 1 шт. | — | |
|
| 2 | 42717-329-000 | CAP, RIM HOLE | 1 шт. | — | |
|
| 3 | 50010-MKC-A01ZC | FRAME SET *NHA86M* (MAT BALLISTIC BLACK) | 1 шт. | — | |
|
| 4 | 50121-MKC-A00 | BRACKET, RR. CUSHION | 1 шт. | — | |
|
| 5 | 50193-MKC-A00 | COLLAR A, ENGINE HANGER | 3 шт. | — | |
|
| 6 | 50194-MKC-A00 | COLLAR B, ENGINE HANGER | 1 шт. | — | |
|
| 7 | 50199-MKC-A00 | RUBBER, CUSHION | 1 шт. | — | |
|
| 8 | 50351-MKC-A00ZA | FRAME, R. (LOWER) *NHA86M* (MAT BALLISTIC BLACK) | 1 шт. | — | |
|
| 9 | 50352-MKC-A00ZA | FRAME, L. (LOWER) *NHA86M* (MAT BALLISTIC BLACK) | 1 шт. | — | |
|
| 10 | 50353-MKC-A00ZA | SUB-FRAME, R. (LOWER) *NHA86M* (MAT BALLISTIC BLACK) | 1 шт. | — | |
|
| 11 | 50354-MKC-A00ZA | SUB-FRAME, L. (LOWER) *NHA86M* (MAT BALLISTIC BLACK) | 1 шт. | — | |
|
| 12 | 50356-MKC-A00 | STAY, L. HORN | 1 шт. | — | |
|
| 13 | 50410-MKC-A00ZB | COVER, R. PIVOT PLATE *NH1* (BLACK) | 1 шт. | — | |
|
| 14 | 50415-MKC-A00ZB | COVER, L. PIVOT PLATE *NH1* (BLACK) | 1 шт. | — | |
|
| 15 | 62502-MKC-A00 | COLLAR, FRAME (LOWER) | 2 шт. | — | |
|
| 16 | 62503-MKC-A00 | RUBBER, FRAME (LOWER) | 2 шт. | — | |
|
| 17 | 81212-GF4-000 | CAP, RR. CARRIER | 1 шт. | — | |
|
| 18 | 83614-MKC-A01 | CLIP, BRUSH | 1 шт. | — | |
|
| 19 | 90100-GCT-J50 | BOLT, SOCKET (8X22) | 4 шт. | — | |
|
| 20 | 90107-MBG-000 | BOLT, ONE-WAY (8MM) | 2 шт. | — | |
|
| 21 | 90112-MBS-000 | SCREW, PAN (5X13) | 6 шт. | — | |
|
| 22 | 90162-MKC-A00 | BOLT, FLANGE (10X45) | 2 шт. | — | |
|
| 23 | 90163-MKC-A00 | BOLT, FLANGE (12X70) | 5 шт. | — | |
|
| 24 | 90164-MKC-A00 | BOLT, FLANGE (12X60) | 1 шт. | — | |
|
| 25 | 90165-MKC-A00 | BOLT, FLANGE (12X60) | 1 шт. | — | |
|
| 26 | 90166-GHB-700 | BOLT, FLANGE (10X35) | 2 шт. | — | |
|
| 27 | 90166-GHB-740 | BOLT, FLANGE (10X55) | 2 шт. | — | |
|
| 28 | 90166-MKC-A00 | BOLT, FLANGE (10X65) | 1 шт. | — | |
|
| 29 | 90167-MKC-A00 | BOLT, FLANGE (10X55) | 1 шт. | — | |
|
| 30 | 90168-MKC-A00 | BOLT, FLANGE (12X55) | 2 шт. | — | |
|
| 31 | 90312-MKC-A00ZB | CAP, PIVOT *NHB01* (GRAPHITE BLACK) | 2 шт. | — | |
|
| 32 | 94050-10000 | NUT, FLANGE (10MM) | 2 шт. | — | |
|
| 33 | 94050-12000 | NUT, FLANGE (12MM) | 6 шт. | — | |
|
| 34 | 94103-10400 | WASHER, PLAIN (10MM) | 2 шт. | — | |
|
| 35 | 95701-08020-08 | BOLT, FLANGE (8X20) | 1 шт. | — | |
|
| 36 | 96400-10035-00 | BOLT, FLANGE (10X35) | 2 шт. | — | |
|
