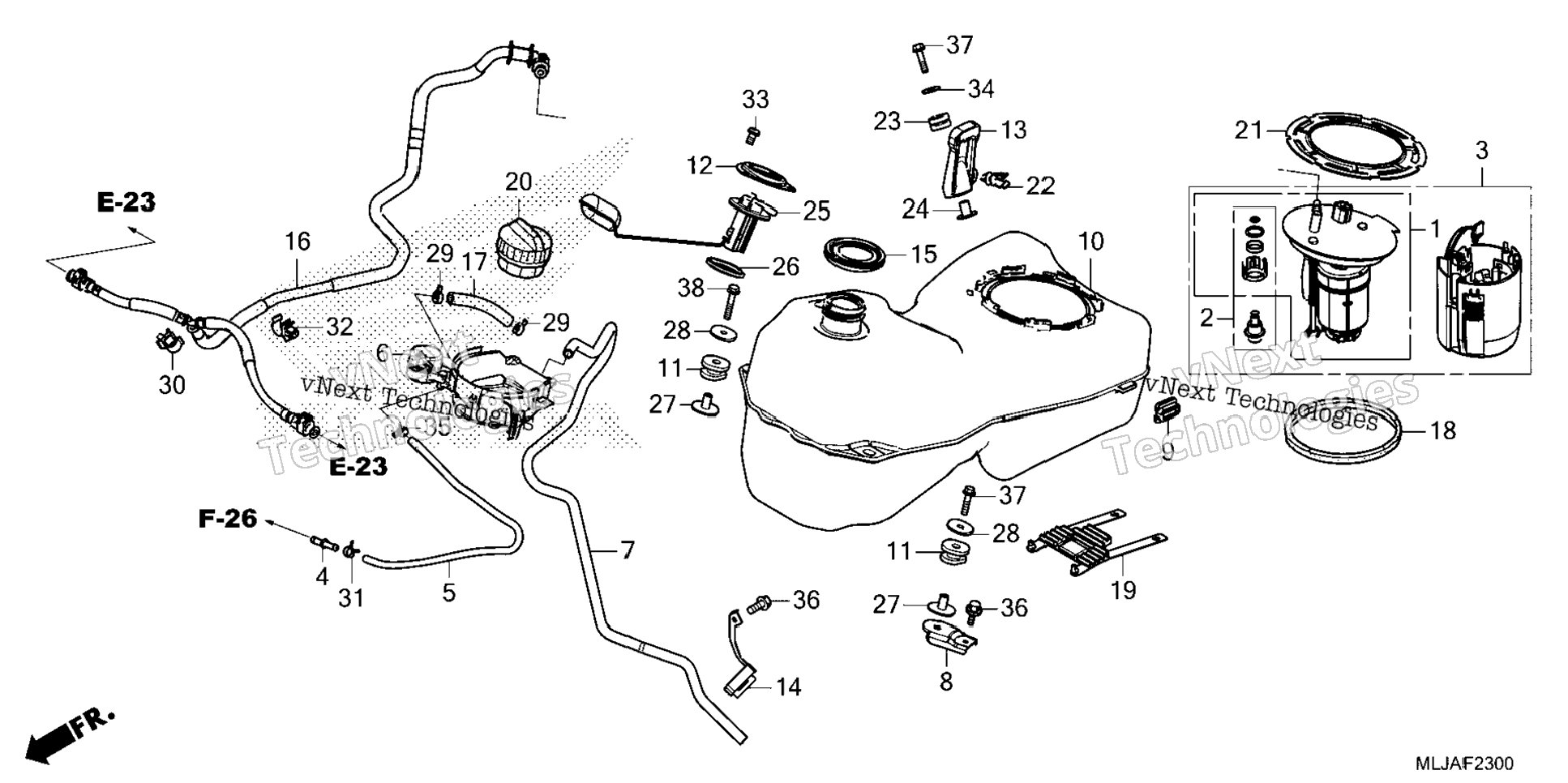

| 1 | 16010-MKC-A01 | FILTER SET, FUEL | 1 шт. | — | |
|
| 2 | 16015-MKC-A01 | REGULATOR ASSY. | 1 шт. | — | |
|
| 3 | 16700-MKC-A02 | PUMP ASSY., FUEL (MSDS) | 1 шт. | — | |
|
| 4 | 16958-GJ6-000 | JOINT, FUEL TUBE | 1 шт. | — | |
|
| 5 | 17411-MKC-A00 | TUBE (FKM)(TANK-JOINT) | 1 шт. | — | |
|
| 6 | 17505-MKC-A00 | TRAY ASSY., FUEL TANK | 1 шт. | — | |
|
| 7 | 17506-MKC-A00 | TUBE, DRAIN | 1 шт. | — | |
|
| 8 | 17507-MKC-A00 | STAY, FR. TANK | 1 шт. | — | |
|
| 9 | 17509-MKC-A00 | RUBBER, TANK STOPPER | 1 шт. | — | |
|
| 10 | 17510-MKC-A00 | TANK, FUEL | 1 шт. | — | |
|
| 11 | 17515-GBB-000 | RUBBER, FUEL TANK MOUNTING | 2 шт. | — | |
|
| 12 | 17515-GBL-760 | PLATE, UNIT SET | 1 шт. | — | |
|
| 13 | 17516-MKC-A00 | STAY, RR. TANK | 1 шт. | — | |
|
| 14 | 17517-MKC-A00 | CLAMP, TUBE | 1 шт. | — | |
|
| 15 | 17526-KRJ-900 | RUBBER, FUEL SEAL | 1 шт. | — | |
|
| 16 | 17526-MKC-A01 | HOSE, FUEL FEED | 1 шт. | — | |
|
| 17 | 17561-MKC-A00 | TUBE, SEPARATOR | 1 шт. | — | |
|
| 18 | 17574-HR3-A21 | GASKET, FUEL PUMP | 1 шт. | — | |
|
| 19 | 17574-MKC-A00 | GASKET, FUEL PUMP | 1 шт. | — | |
|
| 20 | 17614-MKC-A00 | CUSHION, FUEL TANK CENTER | 1 шт. | — | |
|
| 21 | 17620-MEH-003 | CAP ASSY., FUEL TANK | 1 шт. | — | |
|
| 22 | 17719-HR3-A21 | RING, FUEL PUMP LOCKING | 1 шт. | — | |
|
| 23 | 17938-SE0-941 | CLIP, THROTTLE WIRE | 1 шт. | — | |
|
| 24 | 19051-KA3-830 | RUBBER, RADIATOR MOUNTING | 1 шт. | — | |
|
| 25 | 19052-MAC-680 | COLLAR, RADIATOR MOUNTING | 1 шт. | — | |
|
| 26 | 37800-MKC-A01 | FUEL UNIT | 1 шт. | — | |
|
| 27 | 37801-GA7-700 | GASKET, BASE | 1 шт. | — | |
|
| 28 | 80108-KF9-900 | COLLAR, RR. FENDER | 2 шт. | — | |
|
| 29 | 90136-428-870 | WASHER, TANK SETTING | 2 шт. | — | |
|
| 30 | 90651-HN6-A51 | CLAMP, TUBE (12.0) | 2 шт. | — | |
|
| 31 | 90652-HL4-A01 | CLIP | 1 шт. | — | |
|
| 32 | 90652-KSJ-A21 | CLAMP, TUBE (8.0) | 1 шт. | — | |
|
| 33 | 90654-HL4-A01 | CLAMP, HOSE (D15) | 1 шт. | — | |
|
| 34 | 93500-06010-0A | SCREW, PAN (6X10) | 3 шт. | — | |
|
| 35 | 94103-06000 | WASHER, PLAIN (6MM) | 1 шт. | — | |
|
| 36 | 95002-40730-08 | CLAMP, TUBE (D7.3) | 1 шт. | — | |
|
| 37 | 96300-06016-00 | BOLT, FLANGE (6X16) | 2 шт. | — | |
|
| 38 | 96300-06025-00 | BOLT, FLANGE (6X25) | 2 шт. | — | |
|
| 39 | 96300-06032-00 | BOLT, FLANGE (6X32) | 1 шт. | — | |
|
