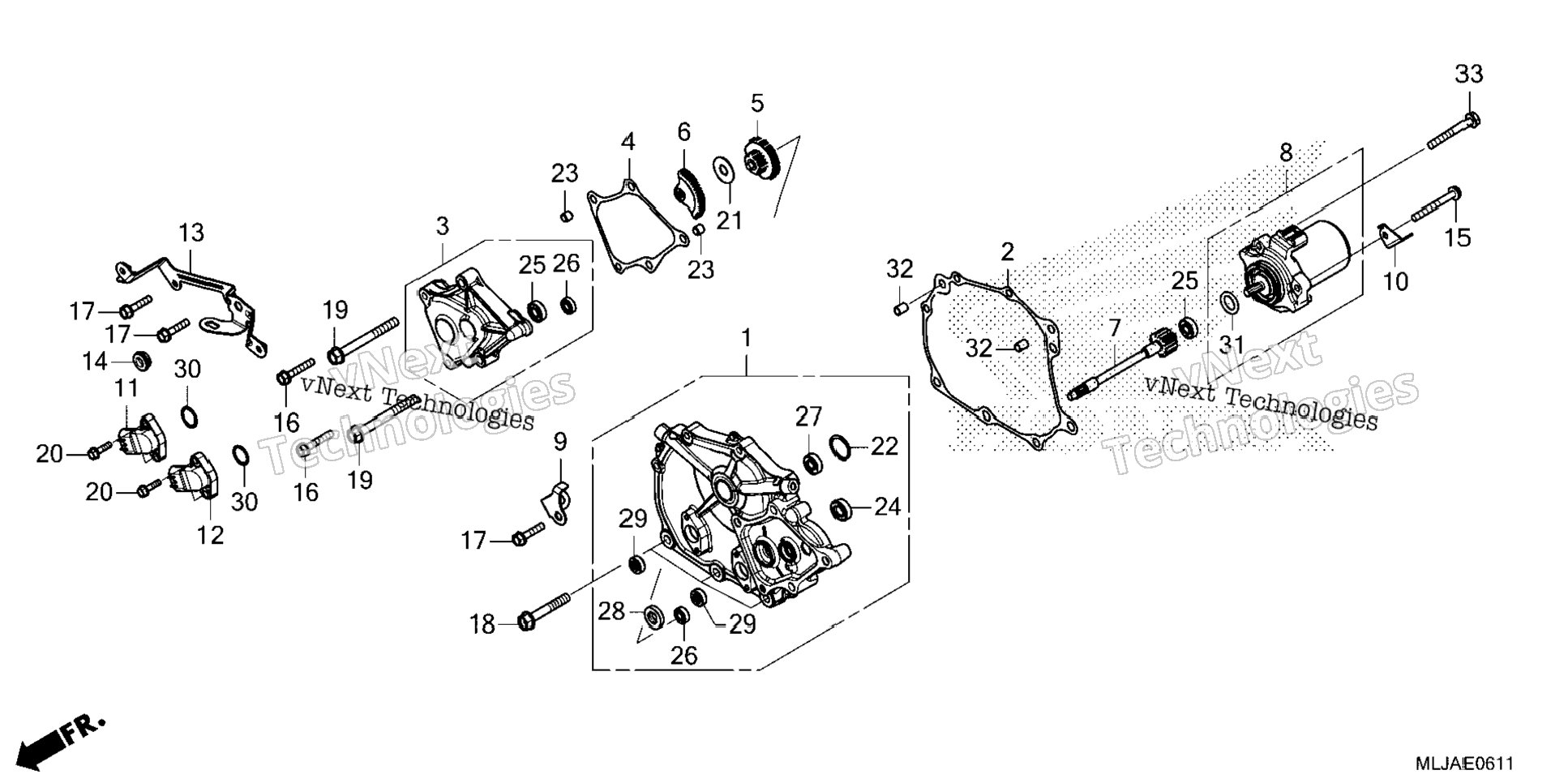

| 1 | 11360-MKC-A00 | COVER, SHIFT | 1 шт. | — | |
|
| 2 | 11365-MKC-A01 | GASKET, SHIFT COVER | 1 шт. | — | |
|
| 3 | 11520-MKC-A00 | COVER, REDUCTION GEAR | 1 шт. | — | |
|
| 4 | 11525-MKC-A01 | GASKET, REDUCTION COVER | 1 шт. | — | |
|
| 5 | 24615-MKC-A01 | GEAR, REDUCTION (65T/19T) | 1 шт. | — | |
|
| 6 | 24616-MKC-A01 | GEAR, REDUCTION (50T) | 1 шт. | — | |
|
| 7 | 24618-MKC-A00 | SHAFT, REDUCTION GEAR | 1 шт. | — | |
|
| 8 | 31300-KVZ-631 | MOTOR ASSY., RATIO CONTROL | 1 шт. | — | |
|
| 9 | 31300-KVZ-632 | MOTOR, RATIO CONTROL | 1 шт. | — | |
|
| 10 | 32151-MKC-A00 | STAY A, CLIP | 1 шт. | — | |
|
| 11 | 32163-HL4-000 | STAY, HARNESS CLIP (C) | 1 шт. | — | |
|
| 12 | 38800-MKC-A01 | SENSOR ASSY., ANGLE (350DEGREE) | 1 шт. | — | |
|
| 13 | 38810-MKC-A01 | SENSOR ASSY., ANGLE (40DEGREE) | 1 шт. | — | |
|
| 14 | 64412-MKC-A00 | STAY, FR. (LOWER) (INNER) | 1 шт. | — | |
|
| 15 | 64586-MBW-D20 | RUBBER, AIR DUCT COVER SETTING | 1 шт. | — | |
|
| 16 | 90001-MB0-000 | BOLT, FLANGE (6X52) | 1 шт. | — | |
|
| 17 | 90009-HA0-000 | BOLT, FLANGE (6X52) | 1 шт. | — | |
|
| 18 | 90031-MKC-A00 | BOLT, FLANGE (6X35) | 2 шт. | — | |
|
| 19 | 90033-MKC-A00 | BOLT, FLANGE (6X28) | 3 шт. | — | |
|
| 20 | 90076-MKC-A00 | BOLT, FLANGE (8X50) | 3 шт. | — | |
|
| 21 | 90077-MKC-A00 | BOLT, FLANGE (8X75) | 2 шт. | — | |
|
| 22 | 90097-MKC-A00 | BOLT, FLANGE (5X20) | 4 шт. | — | |
|
| 23 | 90512-KRN-730 | WASHER (26X10.5) | 1 шт. | — | |
|
| 24 | 90606-MKC-A00 | CIRCLIP (INNER) (16) | 1 шт. | — | |
|
| 25 | 90702-MB0-000 | PIN, DOWEL (8X8) | 2 шт. | — | |
|
| 26 | 91025-MGS-D21 | BEARING, RADIAL BALL (699ZZ) | 1 шт. | — | |
|
| 27 | 91026-MGS-D21 | BEARING, RADIAL BALL (607ZZ) | 2 шт. | — | |
|
| 28 | 91027-MGS-D21 | BEARING, RADIAL BALL (696ZZ) | 2 шт. | — | |
|
| 29 | 91030-MKC-A01 | BEARING, RADIAL BALL (8X16X4) | 1 шт. | — | |
|
| 30 | 91204-HP1-601 | OIL SEAL (10X21X5) | 1 шт. | — | |
|
| 31 | 91208-689-005 | OIL SEAL (8X16X6) (NOK) | 2 шт. | — | |
|
| 32 | 91308-HN0-A10 | O-RING, ANGLE SENSOR | 2 шт. | — | |
|
| 33 | 91351-HM8-A51 | O-RING, CONTROL MOTOR | 1 шт. | — | |
|
| 34 | 94301-08100 | PIN A, DOWEL (8X10) | 2 шт. | — | |
|
| 35 | 95701-06028-00 | BOLT, FLANGE (6X28) | 2 шт. | — | |
|
