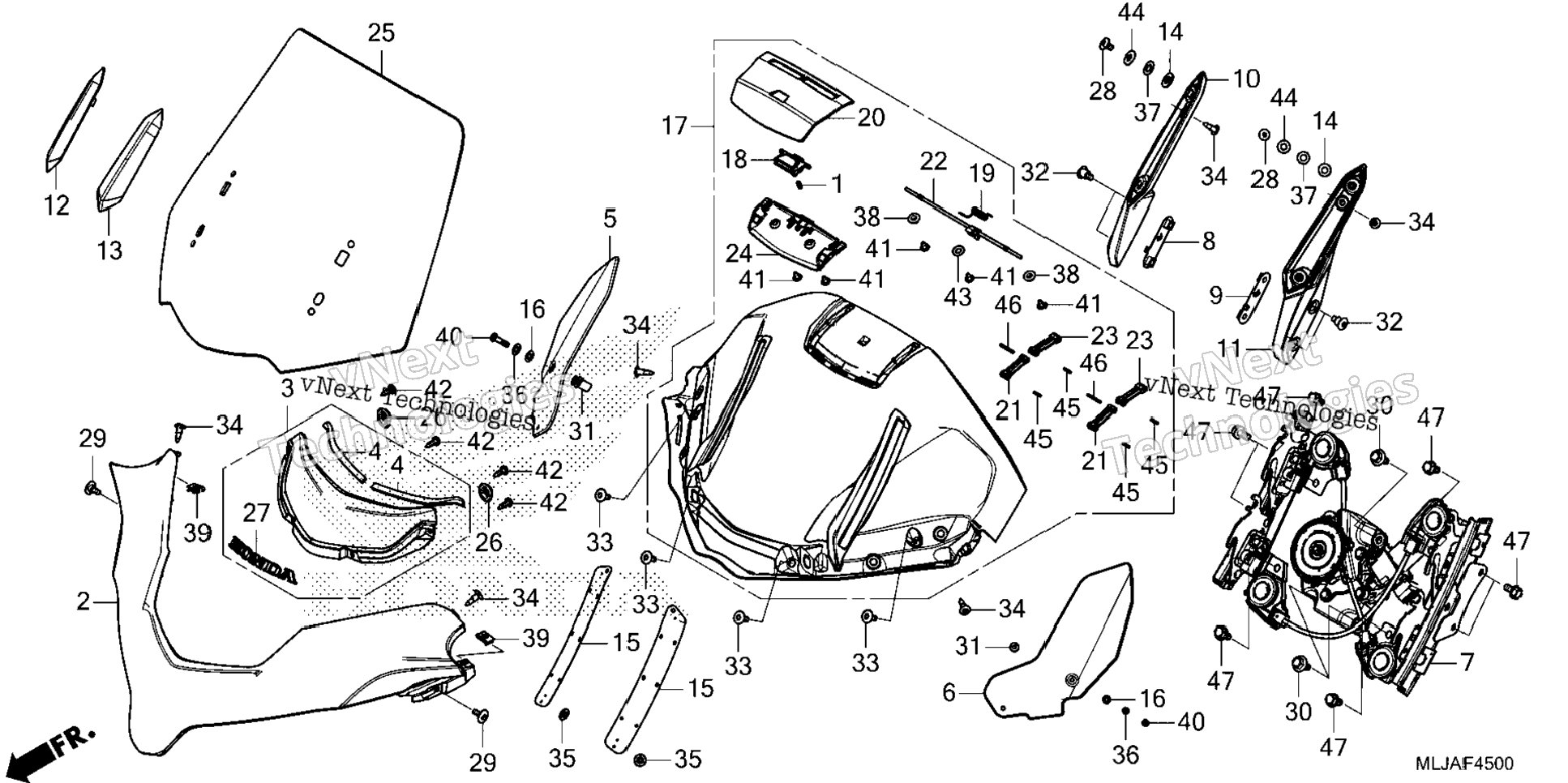

| 1 | 14126-KV2-940 | SPRING, PLUNGER | 1 шт. | — | |
|
| 2 | 64100-MLJ-AH0ZA | SET ILLUS (TYPE1) | 1 шт. | — | |
|
| 3 | 64105-MKC-A10ZA | GARNISH ASSY. B, SCREEN (TYPE1) | 1 шт. | — | |
|
| 4 | 64116-MKC-A00 | SEAL, GARNISH B | 2 шт. | — | |
|
| 5 | 64121-MKC-A00 | FLAP, R. WINDSCREEN (INNER) | 1 шт. | — | |
|
| 6 | 64126-MKC-A00 | FLAP, L. WINDSCREEN (INNER) | 1 шт. | — | |
|
| 7 | 64170-MKC-A01 | ADJUSTER ASSY., WINDSCREEN | 1 шт. | — | |
|
| 8 | 64173-MKC-A00 | PLATE, R. SCREEN ADJUSTER | 1 шт. | — | |
|
| 9 | 64174-MKC-A00 | PLATE, L. SCREEN ADJUSTER | 1 шт. | — | |
|
| 10 | 64175-MKC-A00 | STAY, R. WINDSCREEN | 1 шт. | — | |
|
| 11 | 64176-MKC-A00 | STAY, L. WINDSCREEN | 1 шт. | — | |
|
| 12 | 64177-MKC-A00ZA | COVER, R. WINDSCREEN *NHA86M* (MAT BALLISTIC BLACK) | 1 шт. | — | |
|
| 13 | 64178-MKC-A00ZA | COVER, L. WINDSCREEN *NHA86M* (MAT BALLISTIC BLACK) | 1 шт. | — | |
|
| 14 | 64179-MKC-A00 | RUBBER, WASHER | 4 шт. | — | |
|
| 15 | 64185-MKC-A00 | SEAL, WINDSCREEN ADJUSTER | 2 шт. | — | |
|
| 16 | 64205-166-610 | WASHER, SCREEN SETTING | 4 шт. | — | |
|
| 17 | 64251-MKC-A00 | VISOR ASSY. | 1 шт. | — | |
|
| 18 | 64273-MKC-A00 | SWITCH, VISOR OPEN | 1 шт. | — | |
|
| 19 | 64274-MKC-A00 | SPRING, VISOR FLAP | 1 шт. | — | |
|
| 20 | 64275-MKC-A00 | FLAP, VISOR | 1 шт. | — | |
|
| 21 | 64276-MKC-A00 | ARM A | 2 шт. | — | |
|
| 22 | 64277-MKC-A00 | ROD, ARM | 1 шт. | — | |
|
| 23 | 64278-MKC-A00 | ARM B | 2 шт. | — | |
|
| 24 | 64279-MKC-A00 | COVER, FLAP | 1 шт. | — | |
|
| 25 | 67110-MKC-A00 | WINDSCREEN | 1 шт. | — | |
|
| 26 | 83551-GE2-000 | GROMMET, AIR CLEANER HOUSING | 2 шт. | — | |
|
| 27 | 86101-MKC-A10 | EMBLEM, HONDA (105MM) | 1 шт. | — | |
|
| 28 | 90106-KY2-701 | SCREW, PAN (6X11) | 4 шт. | — | |
|
| 29 | 90106-MBY-000 | SCREW, SPECIAL (5X12) | 2 шт. | — | |
|
| 30 | 90111-162-000 | BOLT, FLANGE (6MM) | 3 шт. | — | |
|
| 31 | 90111-KW3-003 | NUT, COWL SETTING (5MM) | 4 шт. | — | |
|
| 32 | 90113-MKC-A00 | SCREW, PAN (6X15) | 4 шт. | — | |
|
| 33 | 90114-MKC-A00 | SCREW, SPECIAL (5X15) | 4 шт. | — | |
|
| 34 | 90116-SP0-003 | CLIP, BUMPER SEAL | 6 шт. | — | |
|
| 35 | 90301-ST0-003 | NUT, PUSH (3MM) | 16 шт. | — | |
|
| 36 | 90504-964-000 | WASHER, THRUST (5MM) | 4 шт. | — | |
|
| 37 | 90511-MCS-G50 | WASHER (9X17X1) | 4 шт. | — | |
|
| 38 | 90556-MB4-000 | WASHER, FR. SIDE COVER | 2 шт. | — | |
|
| 39 | 90677-KAN-961 | NUT, CLIP (5MM) | 2 шт. | — | |
|
| 40 | 93500-05018-0G | SCREW, PAN (5X18) | 4 шт. | — | |
|
| 41 | 93903-24180 | SCREW, TAPPING (4X8) | 5 шт. | — | |
|
| 42 | 93903-24380 | SCREW, TAPPING (4X12) | 4 шт. | — | |
|
| 43 | 94101-06800 | WASHER, PLAIN (6MM) (USED ON TAILLIGHT) | 1 шт. | — | |
|
| 44 | 94101-08700 | WASHER, PLAIN (8MM) | 4 шт. | — | |
|
| 45 | 94305-20103 | PIN, SPRING (2X10) | 4 шт. | — | |
|
| 46 | 94305-20203 | PIN, SPRING (2X20) | 2 шт. | — | |
|
| 47 | 95701-06012-08 | BOLT, FLANGE (6X12) | 8 шт. | — | |
|
