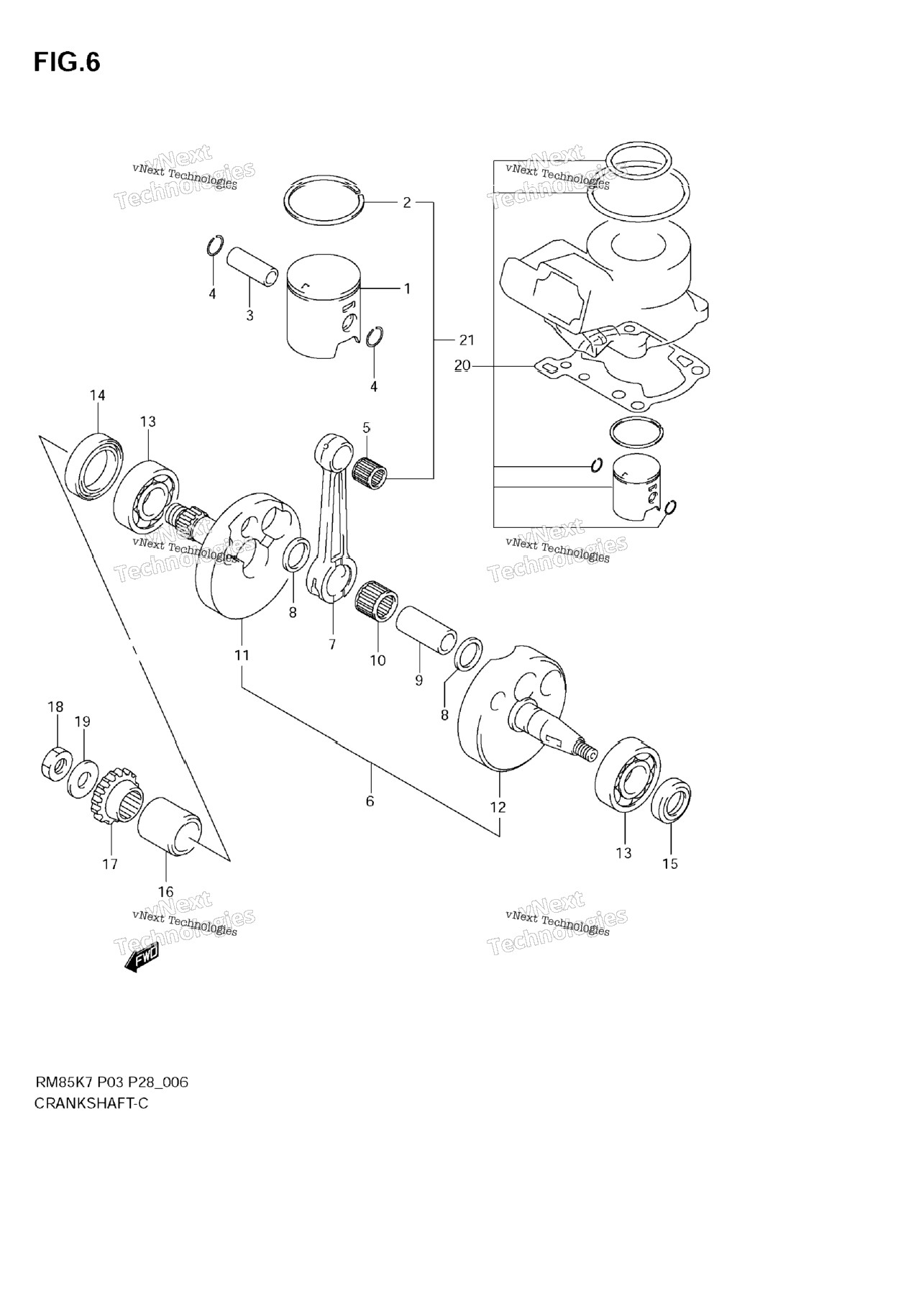

| 6 | 12200-03B20 | CRANKSHAFT ASSY Includes Item(s) 7 - 12 | 1 шт. | — | |
|
| 7 | 12161-03B02 | ROD, CONNECTING | 1 шт. | — | |
|
| 8 | 09160-20082 | WASHER | 2 шт. | — | |
|
| 9 | 12211-02B50 | PIN, CRANK | 1 шт. | — | |
|
| 10 | 09263-20088 | BEARING (20X26X13.7) | 1 шт. | — | |
|
| 11 | 12221-03B01 | CRANKSHAFT, RH | 1 шт. | — | |
|
| 12 | 12261-03B01 | CRANKSHAFT, LH | 1 шт. | — | |
|
| 13 | 09262-20082 | BEARING (20X52X15) | 2 шт. | — | |
|
| 14 | 09283-30061 | OIL SEAL, RH (30X40X7) | 1 шт. | — | |
|
| 15 | 09283-18007 | OIL SEAL, LH (18X30X6) | 1 шт. | — | |
|
| 16 | 12359-27C30 | SPACER, PRIMARY DRIVE GEAR | 1 шт. | — | |
|
| 17 | 21111-02B41 | GEAR, PRIMARY DRIVE (NT:18) | 1 шт. | — | |
|
| 18 | 09140-16019 | NUT | 1 шт. | — | |
|
| 19 | 09164-16002 | WASHER | 1 шт. | — | |
|
| 20 | 11241-03B01 | GASKET, CYLINDER NOT SHOWN | 2 шт. | — | |
|
| 20 | 11147-03B00 | O RING, CYLINDER HEAD NO.1 NOT SHOWN | 2 шт. | — | |
|
| 20 | 11148-03B00 | O RING, CYLINDER HEAD NO.2 NOT SHOWN | 2 шт. | — | |
|
| 20 | 12110-03B20-0F0 | PISTON | 1 шт. | — | |
|
| 20 | 12110-03B20-0F0 | PISTON NOT SHOWN | 1 шт. | — | |
|
| 20 | 12100-03860 | TOP END KIT, ENGINE OPT E3; Includes Item(s) 20 - 20 | 1 шт. | — | |
|
| 21 | 09263-14016 | BEARING (14X18X16) NOT SHOWN | 1 шт. | — | |
|
| 21 | 09263-14016 | BEARING, PISTON PIN | 1 шт. | — | |
|
| 21 | 12151-20910 | PIN, PISTON | 1 шт. | — | |
|
| 21 | 12151-20910 | PIN, PISTON NOT SHOWN | 1 шт. | — | |
|
| 21 | 12100-03850 | PISTON KIT OPT E28; Includes Item(s) 21 - 21 | 1 шт. | — | |
|
| 21 | 12141-03B00 | RING, PISTON | 1 шт. | — | |
|
| 21 | 12141-03B00 | RING, PISTON NOT SHOWN | 2 шт. | — | |
|
| 21 | 12141-03B00 | RING, PISTON NOT SHOWN | 1 шт. | — | |
|
| 21 | 09381-14001 | RING,SNAP | 2 шт. | — | |
|
| 21 | 09381-14001 | RING,SNAP NOT SHOWN | 2 шт. | — | |
|
| 21 | 09381-14001 | RING,SNAP NOT SHOWN | 2 шт. | — | |
|
