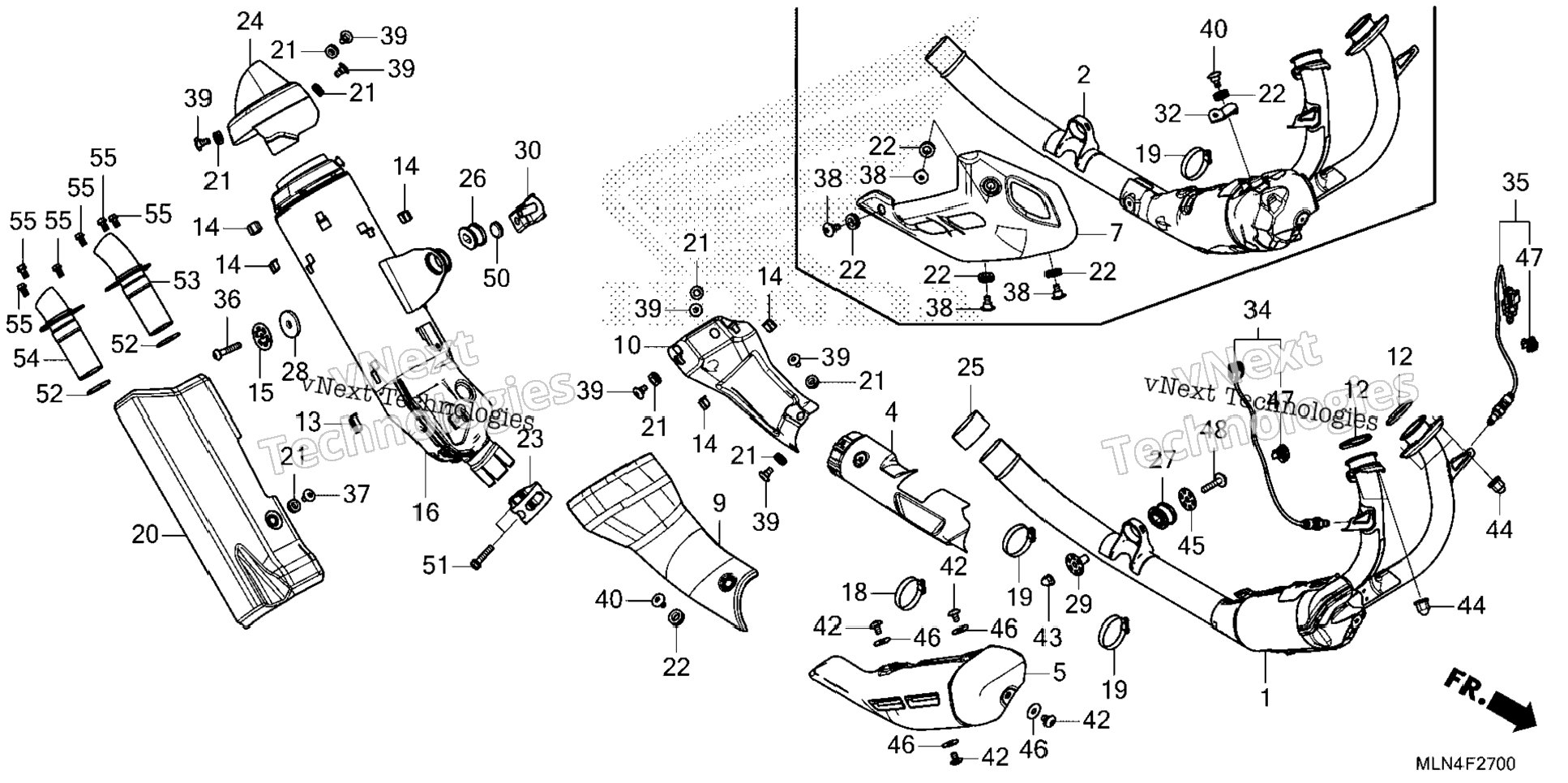

| 1 | 18100-MLN-LQ0 | COVER, EX. | 1 шт. | — | |
|
| 2 | 18180-MKS-E20 | COVER A, EX. PIPE | 1 шт. | — | |
|
| 3 | 18185-MKS-E20 | COVER B, EX. PIPE | 1 шт. | — | |
|
| 4 | 18186-MLN-E00 | COVER, EX. (OUTER) | 1 шт. | — | |
|
| 5 | 18190-MKS-E20 | COVER C, EX. PIPE | 1 шт. | — | |
|
| 6 | 18291-MM8-880 | GASKET, EX. PIPE | 2 шт. | — | |
|
| 7 | 18293-MJP-G50 | RUBBER, PROTECTOR GASKET | 1 шт. | — | |
|
| 8 | 18293-MN0-000 | RUBBER, PROTECTOR | 5 шт. | — | |
|
| 9 | 18309-MJP-G50 | WASHER (8.5X43) | 1 шт. | — | |
|
| 10 | 18310-MLN-L00 | MUFFLER | 1 шт. | — | |
|
| 11 | 18329-MKS-E20 | BAND, EX. PROTECTOR | 3 шт. | — | |
|
| 12 | 18340-MLN-E00 | COVER, MUFFLER | 1 шт. | — | |
|
| 13 | 18345-MBT-610 | RUBBER, PROTECTOR MOUNTING | 8 шт. | — | |
|
| 14 | 18345-MKS-E20 | RUBBER, PROTECTOR MOUNTING | 6 шт. | — | |
|
| 15 | 18371-MKS-E20 | BAND, MUFFLER | 1 шт. | — | |
|
| 16 | 18380-MLN-E00 | COVER, TAIL CAP | 1 шт. | — | |
|
| 17 | 18391-ML0-003 | GASKET, MUFFLER | 1 шт. | — | |
|
| 18 | 18421-MJP-G50 | RUBBER, MUFFLER MOUNTING | 1 шт. | — | |
|
| 19 | 18422-MFJ-D10 | RUBBER, EX. PIPE MOUNTING | 1 шт. | — | |
|
| 20 | 18422-MJP-G50 | WASHER, RUBBER | 1 шт. | — | |
|
| 21 | 18423-MGC-N20 | COLLAR, EX. PIPE MOUNTING | 1 шт. | — | |
|
| 22 | 18423-MJP-G50 | COLLAR, MUFFLER MOUNTING | 1 шт. | — | |
|
| 23 | 18950-MKS-E20 | STAY B, COVER | 1 шт. | — | |
|
| 24 | 36533-MKS-E01 | SENSOR, R. AIR FUEL RATIO | 1 шт. | — | |
|
| 25 | 36534-MKS-E01 | SENSOR, L. AIR FUEL RATIO | 1 шт. | — | |
|
| 26 | 90109-MBT-611 | BOLT, SOCKET (8X45) | 1 шт. | — | |
|
| 27 | 90113-GFP-B00 | SCREW, PAN (6X12) | 1 шт. | — | |
|
| 28 | 90113-MKS-E20 | SCREW, PAN (6X14) | 4 шт. | — | |
|
| 29 | 90114-MKS-E20 | SCREW, PAN (6X12) | 7 шт. | — | |
|
| 30 | 90115-MKS-E20 | SCREW, PAN (6X14) | 2 шт. | — | |
|
| 31 | 90301-MKS-E20 | NUT, FLANGE CAP (8MM) | 1 шт. | — | |
|
| 32 | 90304-ME1-670 | NUT, CAP (8MM) | 4 шт. | — | |
|
| 33 | 90501-MGC-N20 | WASHER (8.5X38) | 1 шт. | — | |
|
| 34 | 91542-SNA-003 | CLIP, HARNESS BAND (164.5MM) (DARK BLUE) | 2 шт. | — | |
|
| 35 | 93404-08040-04 | BOLT-WASHER (8X40) | 1 шт. | — | |
|
| 36 | 95011-63000 | RUBBER C, STAND STOPPER | 1 шт. | — | |
|
| 37 | 96400-08035-04 | BOLT, FLANGE (8X35) | 2 шт. | — | |
|
| 38 | 18291-MEB-670 | GASKET, EX. PIPE | 2 шт. | — | |
|
| 39 | 18317-MLN-L00 | ARRESTER A, SPARK | 1 шт. | — | |
|
| 40 | 18318-MLN-L00 | ARRESTER B, SPARK | 1 шт. | — | |
|
| 41 | 90101-KCE-000 | BOLT, FLANGE (6X10) | 6 шт. | — | |
|
| 42 | 96001-06010-07 | BOLT, FLANGE (6X10) | 6 шт. | — | |
|
