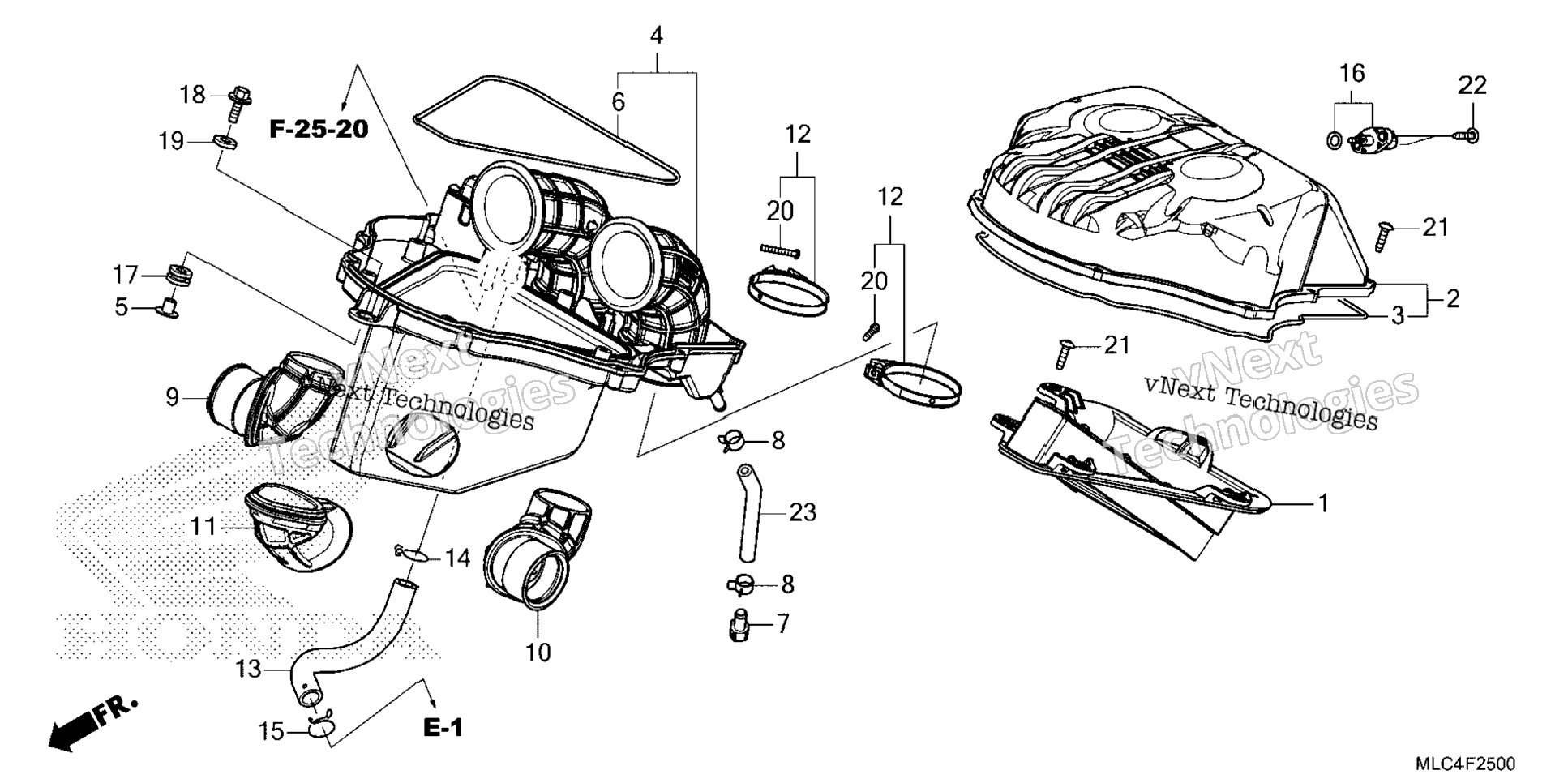

| 1 | 17210-MLB-D00 | ELEMENT COMP, AIR/C | 1 шт. | — | |
|
| 2 | 17220-MLB-D00 | COVER COMP, AIR/C | 1 шт. | — | |
|
| 3 | 17222-MLB-D00 | SEAL A, AIR/C | 1 шт. | — | |
|
| 4 | 17225-MLB-D00 | CASE SUB-ASSY. | 1 шт. | — | |
|
| 5 | 17232-KYJ-900 | COLLAR, AIR CLEANER MOUNTING | 1 шт. | — | |
|
| 6 | 17232-MLB-D00 | SEAL, AIR/C CASE | 1 шт. | — | |
|
| 7 | 17237-MGS-D30 | PLUG | 1 шт. | — | |
|
| 8 | 17238-MGS-D30 | CLAMP, TUBE | 2 шт. | — | |
|
| 9 | 17241-MLB-D00 | JOINT, DUCT R | 1 шт. | — | |
|
| 10 | 17242-MLB-D00 | JOINT, DUCT L | 1 шт. | — | |
|
| 11 | 17243-MLB-D01 | DUCT, AIR/C CTR | 1 шт. | — | |
|
| 12 | 17257-MLB-D00 | BAND, CONN TUBE | 2 шт. | — | |
|
| 13 | 17265-MLB-D00 | TUBE, BREATHER | 1 шт. | — | |
|
| 14 | 17369-KB4-670 | CLIP, BREATHER TUBE | 1 шт. | — | |
|
| 15 | 17724-102-700 | CLIP, SUB-TANK HOSE | 1 шт. | — | |
|
| 16 | 37880-KWW-C01 | SENSOR ASSY., AIR TEMPERATURE | 1 шт. | — | |
|
| 17 | 83545-KCJ-690 | RUBBER, SIDE COVER | 1 шт. | — | |
|
| 18 | 90013-GHB-660 | BOLT, FLANGE (6X22) | 1 шт. | — | |
|
| 19 | 90503-MLB-D00 | WASHER, PLAIN (6MM) | 1 шт. | — | |
|
| 20 | 93500-04025-0H | SCREW, PAN (4X25) | 2 шт. | — | |
|
| 21 | 93903-25480 | SCREW, TAPPING (5X20) | 14 шт. | — | |
|
| 22 | 93913-255J0 | SCREW, TAPPING (5X20) | 2 шт. | — | |
|
| 23 | 95003-23008-60M | BULK HOSE, VINYL (8X12X8000) (Honda Code 4825345) (8X12X600) | 0 шт. | — | |
|
