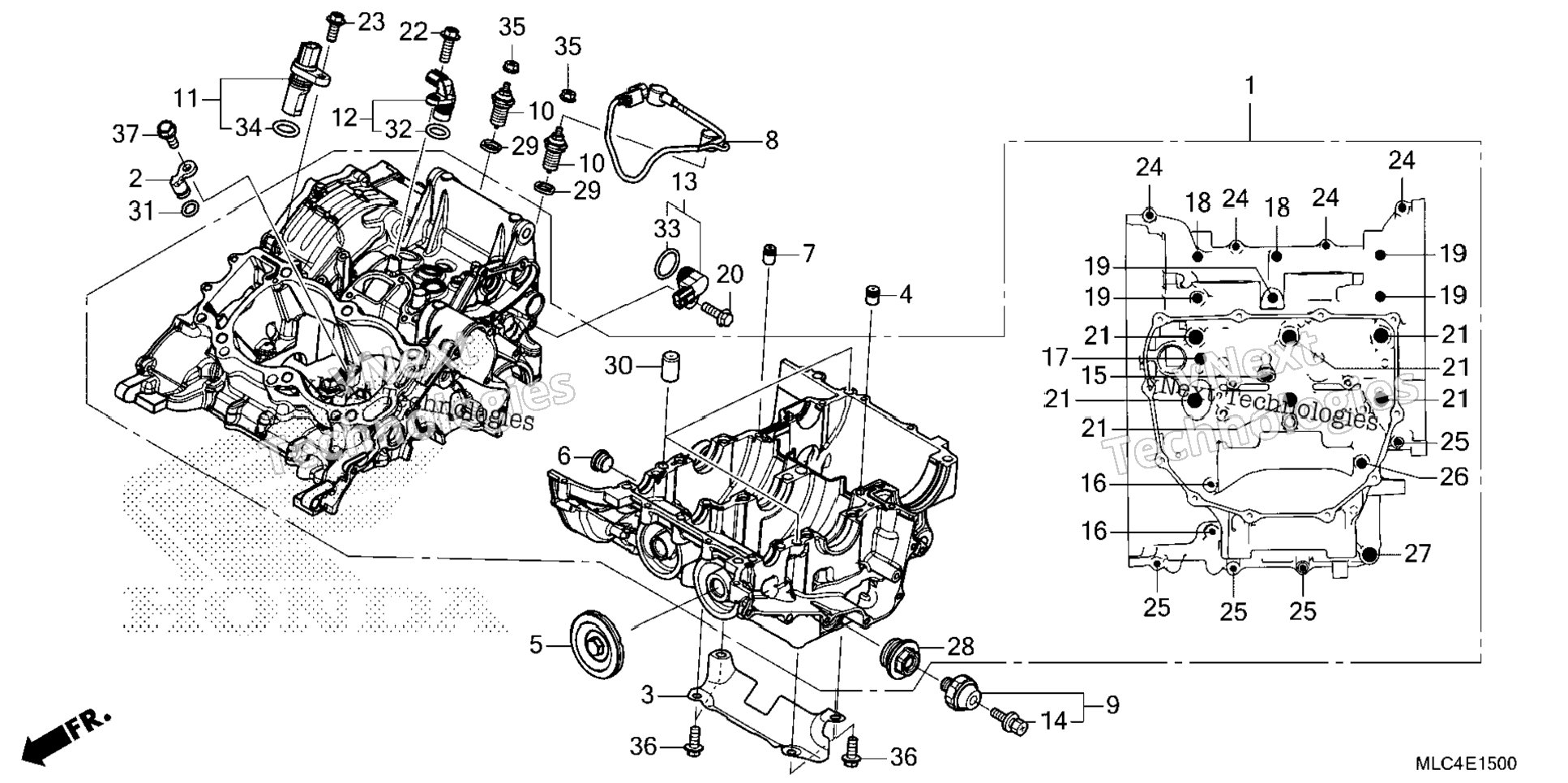

| 1 | 11000-MLB-D00 | CRANKCASE SET | 1 шт. | — | |
|
| 2 | 11141-MLB-D01 | JET, OIL | 1 шт. | — | |
|
| 3 | 11203-MLB-D00 | PLATE, BAFFLE | 1 шт. | — | |
|
| 4 | 11207-MKS-E00 | ORIFICE (1.2MM) | 1 шт. | — | |
|
| 5 | 11221-MLB-D00 | CAP (20MM) | 1 шт. | — | |
|
| 6 | 12206-MBW-000 | BOLT, SEALING (14MM) | 1 шт. | — | |
|
| 7 | 15516-MLB-D00 | ORIFICE (1.7MM) | 1 шт. | — | |
|
| 8 | 32106-MLB-D00 | SUB HARN | 1 шт. | — | |
|
| 9 | 35500-MEH-661 | SWITCH ASSY., OIL PRESSURE (DENSO) | 1 шт. | — | |
|
| 10 | 35600-MKF-D41 | SWITCH ASSY., NEUTRAL | 2 шт. | — | |
|
| 11 | 37500-K26-G82 | SENSOR ASSY., CRANK | 1 шт. | — | |
|
| 12 | 37700-K48-A01 | SENSOR ASSY., SPEED | 1 шт. | — | |
|
| 13 | 38800-HL8-A01 | SENSOR (350DEG) | 1 шт. | — | |
|
| 14 | 90002-PA6-003 | BOLT-WASHER (4X8) (DENSO) | 1 шт. | — | |
|
| 15 | 90002-RGA-000 | BOLT, SEALING (12X8) | 1 шт. | — | |
|
| 16 | 90004-PC9-000 | BOLT, FLANGE (6X90) | 0 шт. | — | |
|
| 17 | 90005-MAZ-000 | BOLT, SOCKET (10MM) | 1 шт. | — | |
|
| 18 | 90005-MLB-D00 | BOLT, FLANGE (8X45) | 2 шт. | — | |
|
| 19 | 90006-K64-N00 | BOLT, FLANGE (8X75) | 4 шт. | — | |
|
| 20 | 90011-MGE-D00 | BOLT, KNOCK (6MM) | 1 шт. | — | |
|
| 21 | 90015-MKS-E00 | BOLT, FLANGE (10X130) | 6 шт. | — | |
|
| 22 | 90026-GHB-650 | BOLT, FLANGE (6X18) | 1 шт. | — | |
|
| 23 | 90028-GHB-640 | BOLT, FLANGE (6X16) (S-NSHF) | 1 шт. | — | |
|
| 24 | 90030-GHB-710 | BOLT (6X32) | 4 шт. | — | |
|
| 25 | 90030-GHB-750 | BOLT (6X45) | 4 шт. | — | |
|
| 26 | 90035-GHB-770 | BOLT, FLANGE (8X55) | 1 шт. | — | |
|
| 27 | 90040-GHB-800 | BOLT (10X70) | 1 шт. | — | |
|
| 28 | 90048-MFL-000 | BOLT, SEALING (22MM) | 1 шт. | — | |
|
| 29 | 90443-MJ6-000 | WASHER, NEUTRAL | 2 шт. | — | |
|
| 30 | 90701-MV9-670 | PIN, DOWEL (10X16) (Honda Code 3906971) | 3 шт. | — | |
|
| 31 | 91301-ZM0-V31 | O-RING (6.8X1.9) (ARAI) | 0 шт. | — | |
|
| 32 | 91303-MKH-D21 | O-RING B | 1 шт. | — | |
|
| 33 | 91310-MGE-D01 | O-RING (16.5X2.5) | 1 шт. | — | |
|
| 34 | 91333-PNC-006 | O-RING | 1 шт. | — | |
|
| 35 | 94050-04000 | NUT, FLANGE (4MM) | 2 шт. | — | |
|
| 36 | 95701-06014-00 | BOLT, FLANGE (6X14) (Honda Code 2410884) | 4 шт. | — | |
|
| 37 | 95701-06016-00 | BOLT, FLANGE (6X16) (Honda Code 2410892) | 1 шт. | — | |
|
