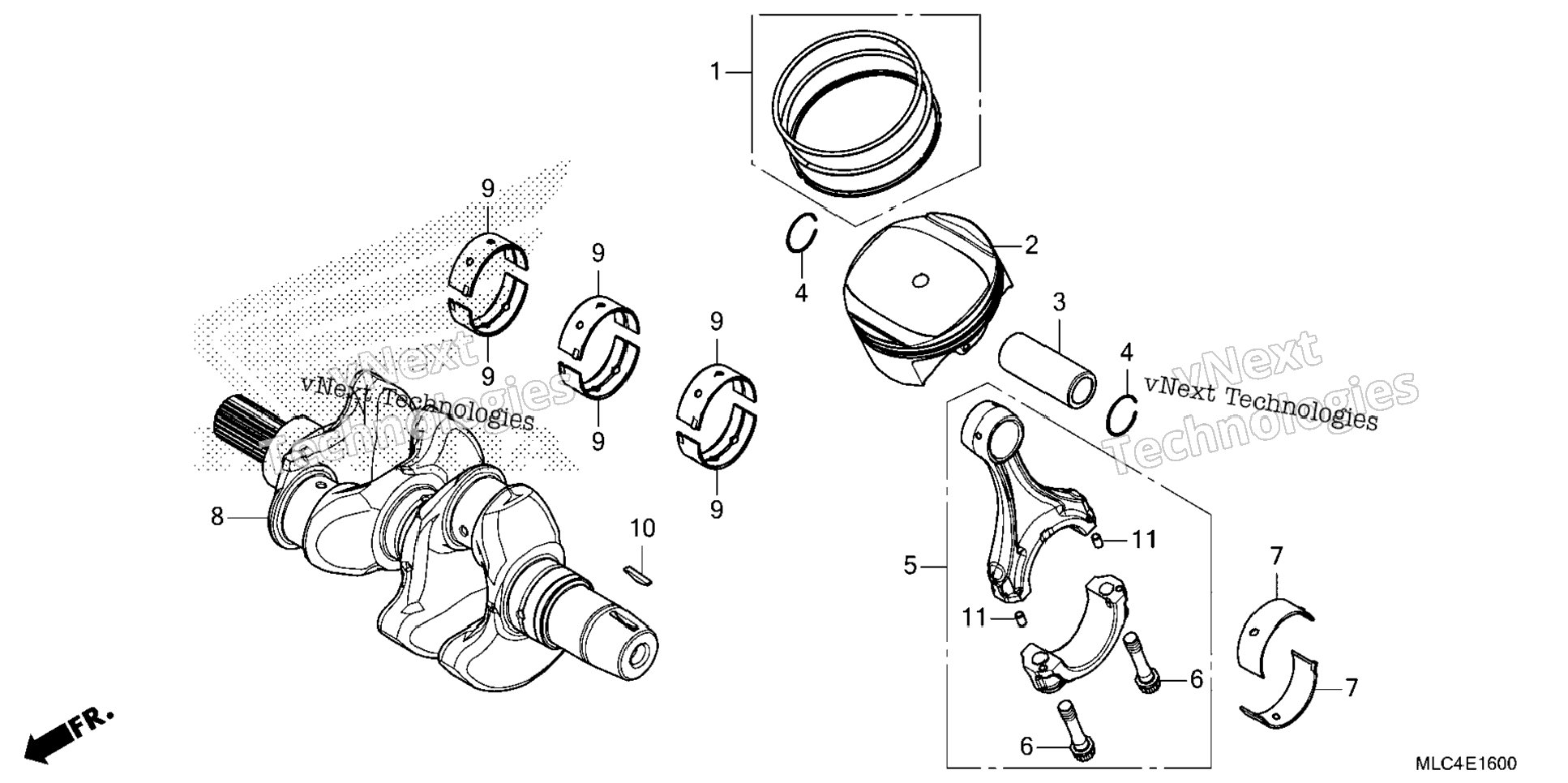

| 1 | 13011-MLB-D00 | RING SET, PISTON | 2 шт. | — | |
|
| 2 | 13101-MLB-D00 | PISTON | 2 шт. | — | |
|
| 3 | 13111-MLB-D00 | PIN, PISTON | 2 шт. | — | |
|
| 4 | 13112-MC7-000 | CLIP, PISTON PIN (22MM) (Honda Code 1206705) | 4 шт. | — | |
|
| 5 | 13210-MLB-D00 | CONN ROD ASSY. | 2 шт. | — | |
|
| 6 | 13213-MGE-003 | BOLT, CONNECTING ROD | 4 шт. | — | |
|
| 7 | 13224-MS2-611 | BEARING A, CONNECTING ROD (BROWN) | 4 шт. | — | |
|
| 7 | 13225-MS2-611 | BEARING B, CONNECTING ROD (GREEN) | 4 шт. | — | |
|
| 7 | 13226-MS2-611 | BEARING C, CONNECTING ROD (YELLOW) | 4 шт. | — | |
|
| 7 | 13222-MS2-611 | BRG Y, CONN-ROD | 4 шт. | — | |
|
| 7 | 13223-MS2-611 | BRG Z, CONN-ROD | 4 шт. | — | |
|
| 8 | 13310-MLB-D00 | CRANKSHAFT COMP | 1 шт. | — | |
|
| 9 | 13313-MCS-003 | BEARING A, CRANKSHAFT (BLUE) | 6 шт. | — | |
|
| 9 | 13314-MCS-003 | BEARING B, CRANKSHAFT (BLACK) | 6 шт. | — | |
|
| 9 | 13315-MCS-003 | BEARING C, CRANKSHAFT (BROWN) | 6 шт. | — | |
|
| 9 | 13316-MCS-003 | BEARING D, CRANKSHAFT (GREEN) | 6 шт. | — | |
|
| 9 | 13317-MCS-003 | BEARING E, CRANKSHAFT (YELLOW) | 6 шт. | — | |
|
| 10 | 90701-KAS-900 | KEY, SPECIAL WOODRUFF (25X18) | 1 шт. | — | |
|
| 11 | 94303-03050 | PIN, DOWEL (3X5) | 4 шт. | — | |
|
