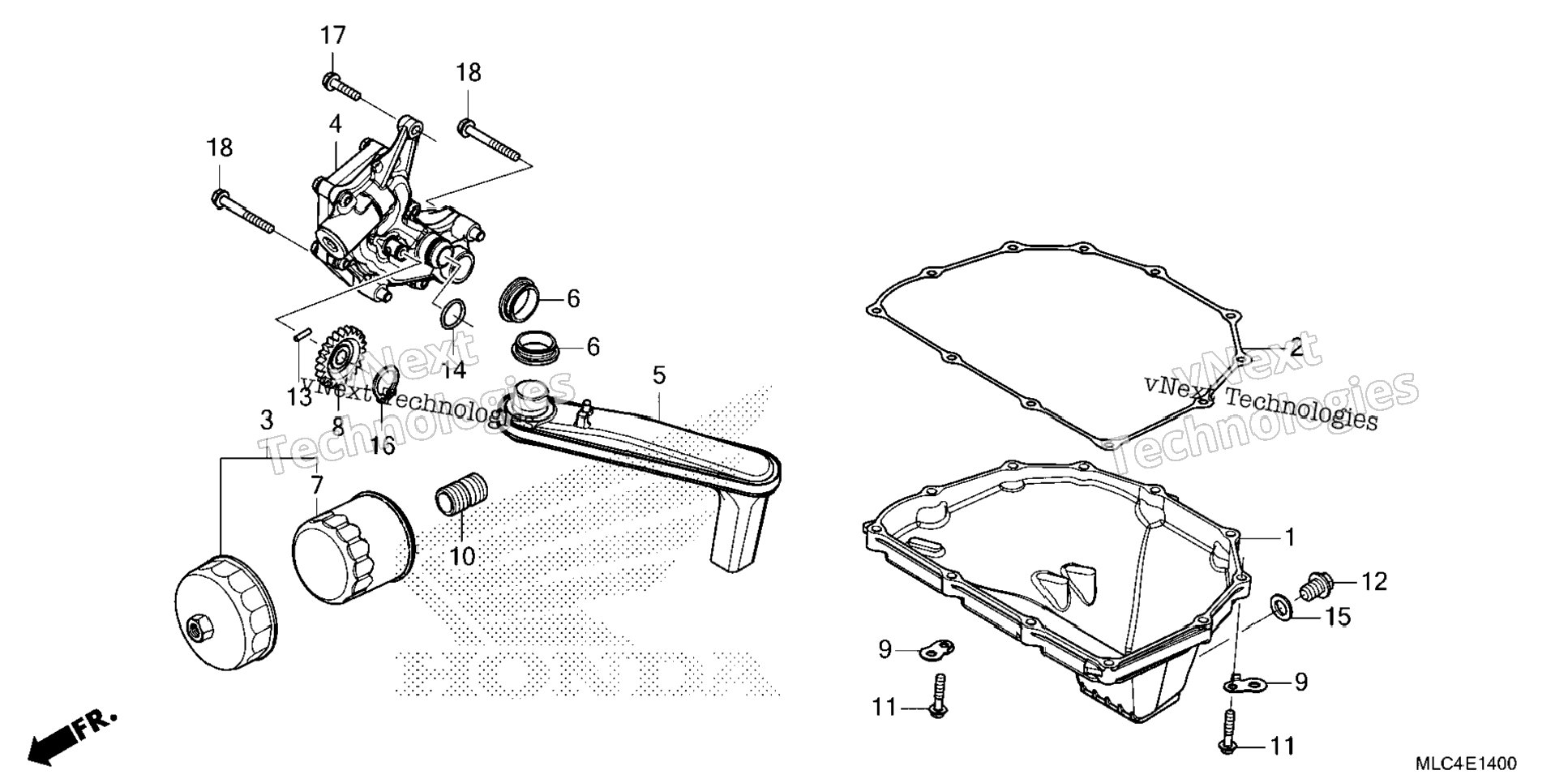

| 1 | 11211-MLB-D00 | OIL PAN | 1 шт. | — | |
|
| 2 | 11395-MLB-D01 | GASKET, OIL PAN | 1 шт. | — | |
|
| 3 | 15010-MKR-305 | FILTER SET, OIL (Optional). | 1 шт. | — | |
|
| 4 | 15100-MLB-D00 | PUMP ASSY., OIL | 1 шт. | — | |
|
| 5 | 15150-MLB-D00 | STRAINER COMP, OIL | 1 шт. | — | |
|
| 6 | 15154-MAT-000 | GASKET, OIL STRAINER | 2 шт. | — | |
|
| 7 | 15410-MFJ-D02 | FILTER, OIL (WAKO FILTER) | 1 шт. | — | |
|
| 8 | 19246-MLB-D00 | GEAR, PUMP DRIVEN | 1 шт. | — | |
|
| 9 | 32157-MJM-D00 | STAY, HARNESS CLIP | 2 шт. | — | |
|
| 10 | 90019-MB0-000 | BOSS, OIL FILTER (Honda Code 1243435) | 1 шт. | — | |
|
| 11 | 90028-GHB-690 | BOLT, FLANGE (6X28) (S-NSHF) | 11 шт. | — | |
|
| 12 | 90131-896-650 | BOLT, DRAIN PLUG (12X15) | 1 шт. | — | |
|
| 12 | 90131-883-000 | BOLT, DRAIN PLUG (12X15) | 1 шт. | — | |
|
| 13 | 91101-HA2-300 | PIN, SOLID (4X20) | 1 шт. | — | |
|
| 14 | 91308-K0J-N00 | O-RING (18.8X2.4) | 1 шт. | — | |
|
| 15 | 94109-12000 | WASHER, DRAIN PLUG (12MM) | 1 шт. | — | |
|
| 16 | 94510-11000 | CIRCLIP (OUTER) (11MM) | 1 шт. | — | |
|
| 17 | 95701-06025-00 | BOLT, FLANGE (6X25) | 1 шт. | — | |
|
| 18 | 95701-06050-00 | BOLT, FLANGE (6X50) (Honda Code 2410975) | 2 шт. | — | |
|
