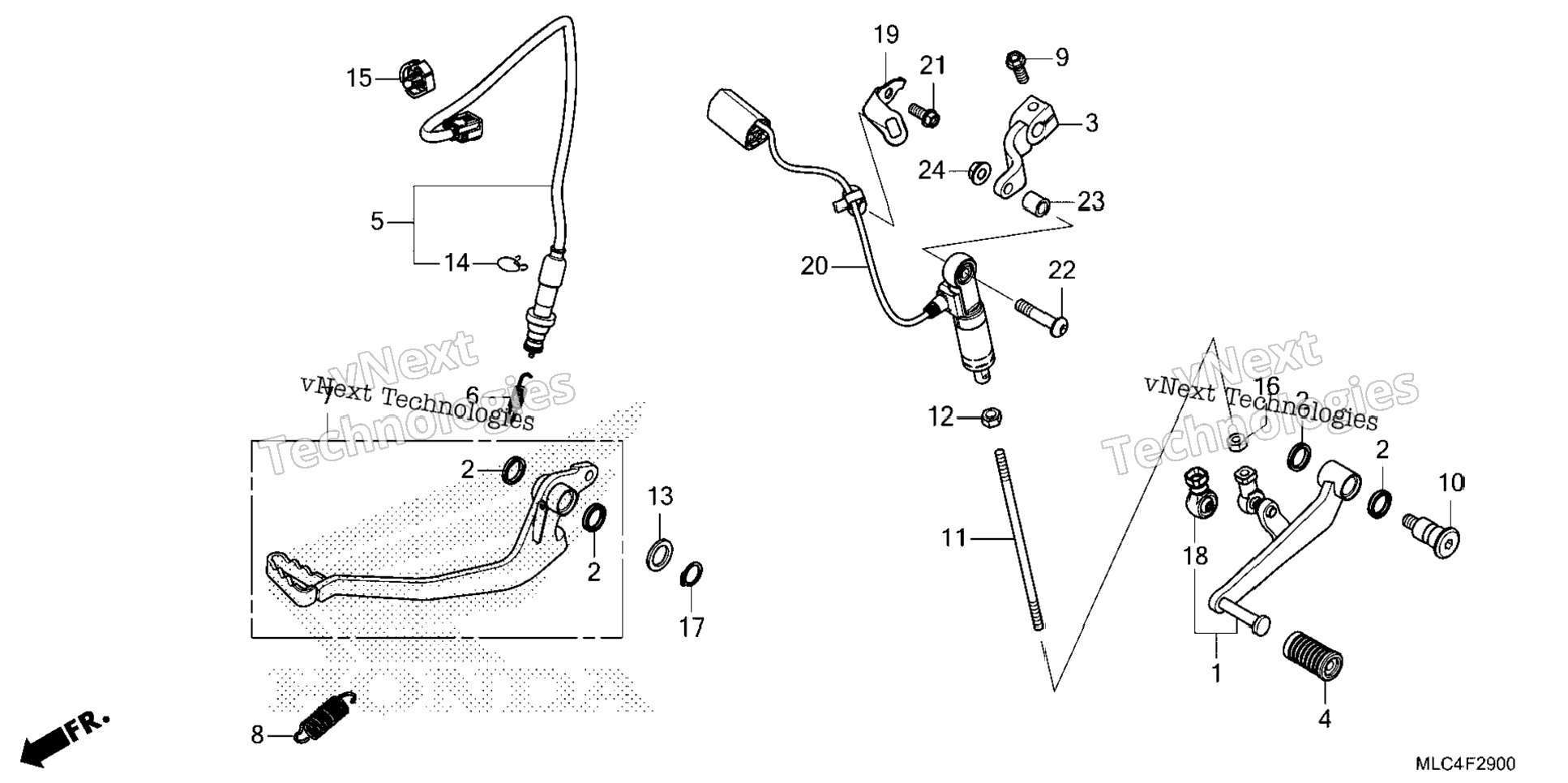

| 1 | 24705-MLC-D00 | PEDAL COMP | 1 шт. | — | |
|
| 2 | 24706-MK3-770 | RUBBER, DUST SEAL | 4 шт. | — | |
|
| 3 | 24711-MLC-D00 | ARM, GEARSHIFT | 1 шт. | — | |
|
| 4 | 24781-KR3-770 | RUBBER, GEARSHIFT PEDAL | 1 шт. | — | |
|
| 5 | 35350-MKJ-E51 | SWITCH, RR. STOP | 1 шт. | — | |
|
| 6 | 35357-HP0-A00 | SPRING, STOP SWITCH | 1 шт. | — | |
|
| 7 | 46500-MLC-D00 | PEDAL, RR. BRAKE | 1 шт. | — | |
|
| 8 | 46511-MJF-A00 | SPRING, BRAKE PEDAL | 1 шт. | — | |
|
| 9 | 90030-GHB-660 | BOLT, FLANGE (6X20) | 1 шт. | — | |
|
| 10 | 90115-MLC-D00 | BOLT, CHANGE PIVOT | 1 шт. | — | |
|
| 11 | 90166-MLC-D00 | BOLT, TIE ROD | 1 шт. | — | |
|
| 12 | 90301-MGZ-J00 | NUT, SPECIAL (6MM) (LEFT HAND THREAD) | 1 шт. | — | |
|
| 13 | 90451-GBL-870 | WASHER (14MM) | 1 шт. | — | |
|
| 14 | 90601-KAF-003 | CLIP, SWITCH COVER | 1 шт. | — | |
|
| 15 | 90690-MEF-800 | CLAMP, HARNESS | 1 шт. | — | |
|
| 16 | 94002-06070-0S | NUT, HEX. (6MM) | 1 шт. | — | |
|
| 17 | 94511-14000 | CIRCLIP (OUTER) (14MM) | 1 шт. | — | |
|
| 18 | 24724-MBW-D21 | COVER, DUST | 1 шт. | — | |
|
| 19 | 32214-MLB-D00 | STAY, HARNESS CLIP | 1 шт. | — | |
|
| 20 | 36390-MLC-A01 | SENSOR ASSY., STROKE | 1 шт. | — | |
|
| 21 | 90021-GHB-630 | BOLT, FLANGE (6X14) | 1 шт. | — | |
|
| 22 | 90113-MKK-D00 | BOLT, SOCKET (7X35) (OP) | 0 шт. | — | |
|
| 23 | 90125-MKK-D00 | COLLAR (10MM) (OP) | 0 шт. | — | |
|
| 24 | 90202-KV3-000 | NUT, FLANGE (7MM) | 1 шт. | — | |
|
