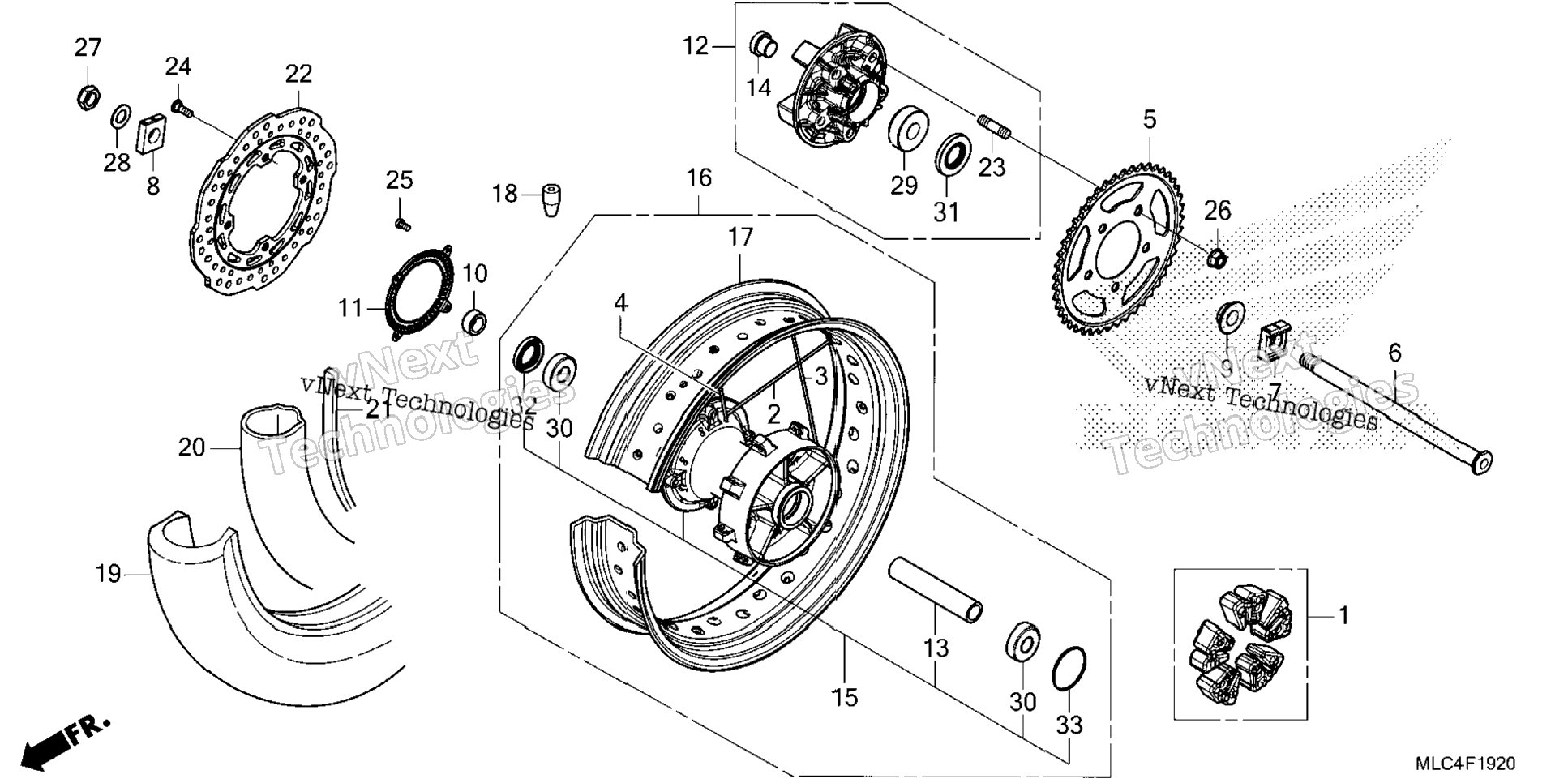

| 1 | 06410-MBB-000 | DAMPER SET, WHEEL | 1 шт. | — | |
|
| 2 | 06420-MKK-D00 | SPOKE SET A, RR. (R. OUTSIDE) | 8 шт. | — | |
|
| 3 | 06421-MKK-D00 | SPOKE SET B, RR. (L. SIDE) | 16 шт. | — | |
|
| 4 | 06422-MKK-D00 | SPOKE SET C, RR. (R. INSIDE) | 8 шт. | — | |
|
| 5 | 41201-MLC-D00 | SPROCKET (45T) | 1 шт. | — | |
|
| 6 | 42301-MKS-E00 | AXLE, RR. WHEEL | 1 шт. | — | |
|
| 7 | 42305-MKS-E00 | COLLAR, L. RR. AXLE | 1 шт. | — | |
|
| 8 | 42306-MKS-E00 | COLLAR, R. RR. AXLE | 1 шт. | — | |
|
| 9 | 42311-MGS-D10 | COLLAR, L. RR. WHEEL SIDE | 1 шт. | — | |
|
| 10 | 42312-MGS-D10 | COLLAR, RR. BRAKE SIDE | 1 шт. | — | |
|
| 11 | 42515-MKS-E00 | RING, RR. PULSER | 1 шт. | — | |
|
| 12 | 42615-MLC-D00 | FLANGE SUB-ASSY. | 1 шт. | — | |
|
| 13 | 42620-MKS-E20 | COLLAR, RR. AXLE DISTANCE | 1 шт. | — | |
|
| 14 | 42625-MJP-G50 | COLLAR B, RR. WHEEL DISTANCE | 1 шт. | — | |
|
| 15 | 42635-MLC-D00 | HUB SUB-ASSY., RR. | 1 шт. | — | |
|
| 16 | 42650-MLC-D00 | WHEEL SUB-ASSY., RR. | 1 шт. | — | |
|
| 17 | 42701-MKK-D02 | RIM, RR. WHEEL (18M/CXMT4.00) | 1 шт. | — | |
|
| 18 | 42704-MEG-003 | WEIGHT, BALANCE (15G) | 1 шт. | — | |
|
| 19 | 42705-MEG-003 | WEIGHT, BALANCE (20G) | 1 шт. | — | |
|
| 20 | 42711-MKS-E02 | TIRE, RR. (150/70R18 M/C 70H) (METZELER) | 1 шт. | — | |
|
| 21 | 42711-MLC-D01 | TIRE, RR. | 1 шт. | — | |
|
| 22 | 42711-MLC-D02 | TIRE, RR. | 1 шт. | — | |
|
| 23 | 42712-MGC-N23 | TUBE, TIRE | 1 шт. | — | |
|
| 24 | 42712-MKS-E02 | TUBE, TIRE (METZELER) | 1 шт. | — | |
|
| 25 | 42713-MGC-N21 | FLAP, TIRE (DUNLOP) | 1 шт. | — | |
|
| 26 | 42713-MKS-E02 | FLAP | 1 шт. | — | |
|
| 27 | 43251-MJP-G51 | DISK, RR. BRAKE (YUTAKA) | 1 шт. | — | |
|
| 28 | 90102-MAS-000 | BOLT 2, STUD (12X25) | 5 шт. | — | |
|
| 29 | 90108-MLB-D00 | BOLT (8X24) | 4 шт. | — | |
|
| 30 | 90131-MGE-000 | BOLT, TORX (5X8) | 4 шт. | — | |
|
| 31 | 90302-MKT-D01 | NUT U, FLANGE (12MM) | 5 шт. | — | |
|
| 32 | 90306-MCS-G01 | NUT, U (18MM) | 1 шт. | — | |
|
| 33 | 90401-KZ4-890 | WASHER (18X32X2) | 1 шт. | — | |
|
| 34 | 91051-MAS-003 | BEARING, RADIAL BALL (63/22) | 1 шт. | — | |
|
| 35 | 91053-MKY-D51 | BEARING, RADIAL BALL (6204UU) (NSK) | 2 шт. | — | |
|
| 36 | 91252-MAS-003 | DUST SEAL (30X56X7.5) | 1 шт. | — | |
|
| 37 | 91253-443-761 | DUST SEAL (30X47X8) (ARAI) | 1 шт. | — | |
|
| 38 | 91253-443-762 | DUST SEAL (30X47X8) (NOK) | 1 шт. | — | |
|
| 39 | 91351-MGS-D30 | O-RING (55X2) | 1 шт. | — | |
|
