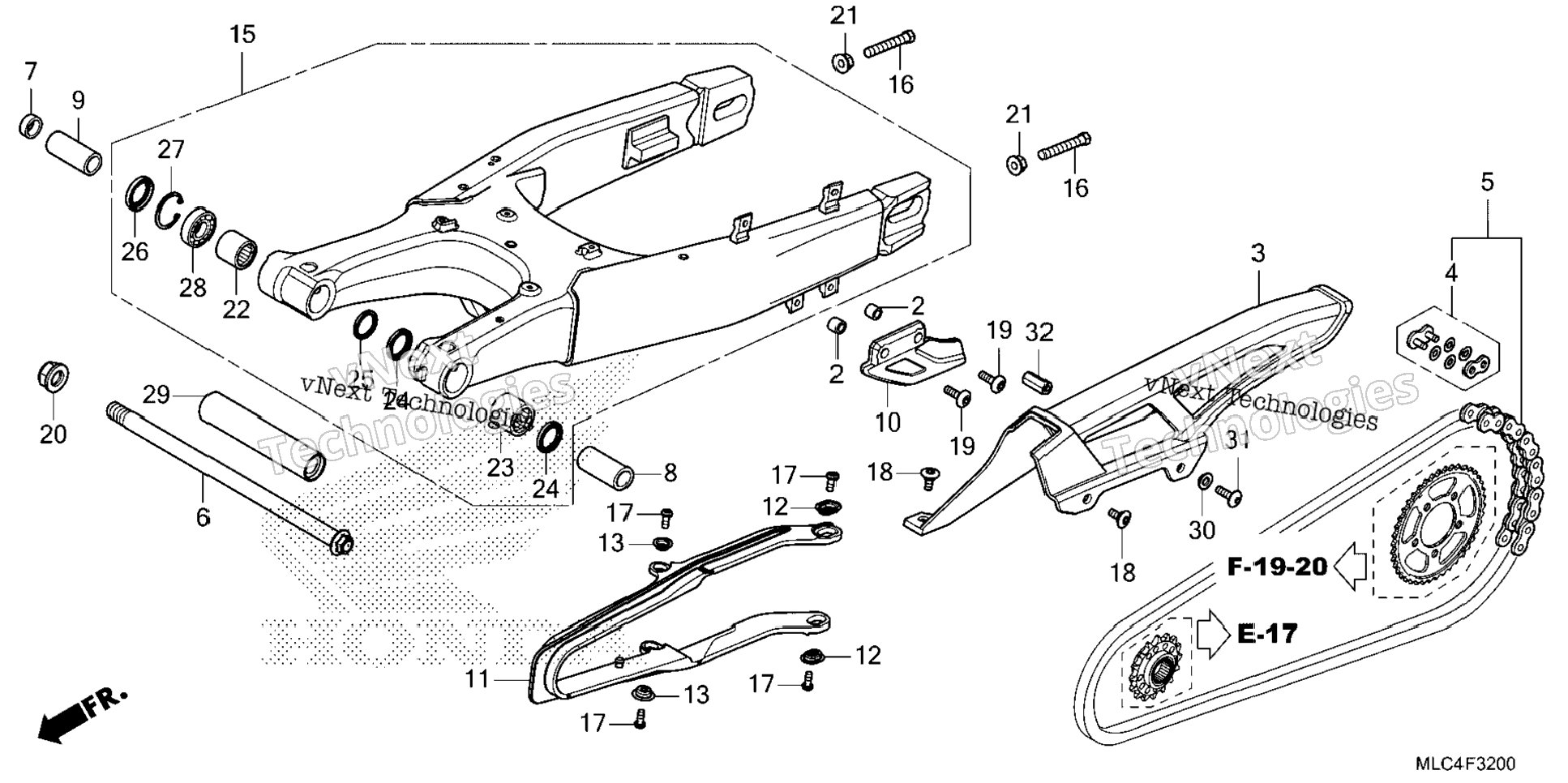

| 1 | 52161-MLC-D00 | COLLAR, CHAIN GUARD | 2 шт. | — | |
|
| 2 | 40510-MKS-E00 | CASE, DRIVE CHAIN | 1 шт. | — | |
|
| 3 | 40545-MLB-D01 | JOINT, DRIVE CHAIN | 1 шт. | — | |
|
| 4 | 40545-MLB-D02 | JOINT.DRIVE CHAIN | 1 шт. | — | |
|
| 5 | 40540-MLC-D01 | CHAIN, DRIVE | 1 шт. | — | |
|
| 6 | 40540-MLC-D02 | CHAIN, DRIVE | 1 шт. | — | |
|
| 7 | 52101-MLB-D00 | BOLT, SWINGARM PIVOT | 1 шт. | — | |
|
| 8 | 52141-MKS-E00 | COLLAR A, PIVOT | 1 шт. | — | |
|
| 9 | 52143-MLB-D00 | COLLAR, L PIVOT DIST | 1 шт. | — | |
|
| 10 | 52143-MKS-E00 | COLLAR, R. PIVOT DISTANCE | 1 шт. | — | |
|
| 11 | 52160-MKS-E00 | GUARD, CHAIN | 1 шт. | — | |
|
| 12 | 52170-MLC-D00 | SLIDER, CHAIN | 1 шт. | — | |
|
| 13 | 52171-KR6-000 | WASHER, CHAIN SLIDER | 2 шт. | — | |
|
| 14 | 52171-MAN-620 | WASHER, CHAIN SLIDER | 2 шт. | — | |
|
| 15 | 52200-MKS-E00ZB | SWINGARM SUB-ASSY., RR. (TYPE1) | 1 шт. | — | |
|
| 16 | 90106-MCF-D00 | BOLT, HEX. (8X50) | 2 шт. | — | |
|
| 17 | 90107-MJP-G50 | SCREW, PAN (5X12) | 4 шт. | — | |
|
| 18 | 90118-MJK-N20 | SCREW, SPECIAL (6X14) | 2 шт. | — | |
|
| 19 | 90119-MKS-E00 | BOLT, SPECIAL (6X20) | 2 шт. | — | |
|
| 20 | 90305-MY5-731 | NUT, U (16MM) | 1 шт. | — | |
|
| 21 | 90309-357-000 | NUT, HEX. (10MM) | 2 шт. | — | |
|
| 22 | 91063-MZ1-003 | BEARING, NEEDLE (24X31X28) | 1 шт. | — | |
|
| 23 | 91071-MT7-003 | BEARING, NEEDLE (NTN) | 1 шт. | — | |
|
| 24 | 91202-MAL-601 | DUST SEAL (25X33X4) | 2 шт. | — | |
|
| 25 | 91203-GC8-003 | OIL SEAL (24X31X3.5) | 1 шт. | — | |
|
| 26 | 91214-MAL-601 | DUST SEAL (23X35X5) | 1 шт. | — | |
|
| 27 | 94520-35000 | CIRCLIP (INNER) (35MM) | 1 шт. | — | |
|
| 28 | 96100-60030-10 | BEARING, RADIAL BALL (6003) | 1 шт. | — | |
|
| 29 | 52141-MLC-D00 | COLLAR | 1 шт. | — | |
|
| 30 | 40511-MLC-D00 | COLLAR, CHAIN CASE | 1 шт. | — | |
|
| 31 | 90119-MKJ-D00 | SCREW, PAN (6X20) | 1 шт. | — | |
|
| 32 | 90304-MLC-D00 | NUT, SPECIAL (6MM) | 1 шт. | — | |
|
