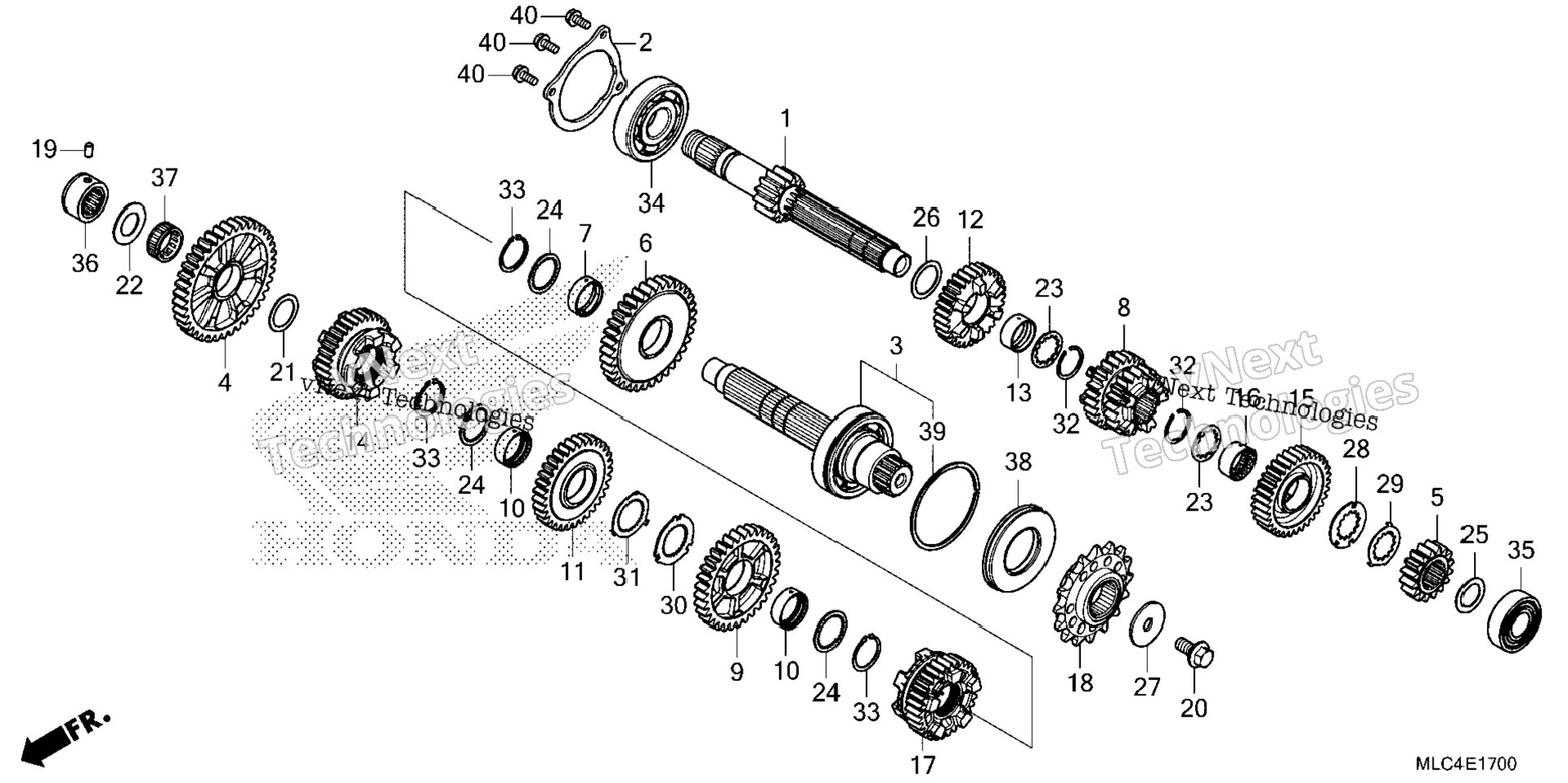

| 1 | 23211-MLB-D00 | SHAFT, MAIN | 1 шт. | — | |
|
| 2 | 23212-MLB-D00 | PLATE | 1 шт. | — | |
|
| 3 | 23220-MLB-D00 | COUNTERSHAFT COMP | 1 шт. | — | |
|
| 4 | 23421-MLB-D00 | GEAR (C-1) | 1 шт. | — | |
|
| 5 | 23431-MLB-D00 | GEAR (M-2) | 1 шт. | — | |
|
| 6 | 23441-MLB-D00 | GEAR (C-2) | 1 шт. | — | |
|
| 7 | 23442-MM4-000 | COLLAR (28MM) | 1 шт. | — | |
|
| 8 | 23451-MLB-D00 | GEAR (M-3) (M-4) | 1 шт. | — | |
|
| 9 | 23461-MLB-D00 | GEAR (C-3) | 1 шт. | — | |
|
| 10 | 23462-MLB-D00 | COLLAR (28X31X10) | 2 шт. | — | |
|
| 11 | 23481-MLB-D00 | GEAR (C-4) | 1 шт. | — | |
|
| 12 | 23491-MLB-D00 | GEAR (M-5) | 1 шт. | — | |
|
| 13 | 23492-MGZ-J00 | COLLAR (25X28X12) | 1 шт. | — | |
|
| 14 | 23501-MLB-D00 | GEAR (C-5) | 1 шт. | — | |
|
| 15 | 23511-MLB-D00 | GEAR (M-6) | 1 шт. | — | |
|
| 16 | 23512-MV9-670 | COLLAR, SPLINE (25X28X13) | 1 шт. | — | |
|
| 17 | 23521-MLB-D00 | GEAR (C-6) | 1 шт. | — | |
|
| 18 | 23801-MLB-D00 | SPROCKET (16T) | 1 шт. | — | |
|
| 19 | 24261-283-000 | PIN, GEARSHIFT FORK GUIDE | 1 шт. | — | |
|
| 20 | 90037-422-003 | BOLT, SPECIAL (10MM) | 1 шт. | — | |
|
| 21 | 90402-HA5-000 | WASHER, THRUST (24MM) | 1 шт. | — | |
|
| 22 | 90451-704-000 | WASHER A, THRUST (20MM) | 1 шт. | — | |
|
| 23 | 90451-KY2-000 | WASHER, SPLINE (25X31X1.5) | 2 шт. | — | |
|
| 24 | 90452-MKR-D10 | WASHER, SPLINE (28X27X1) | 3 шт. | — | |
|
| 25 | 90454-428-000 | WASHER, THRUST (20X1.00) | 1 шт. | — | |
|
| 26 | 90456-MA6-000 | WASHER, THRUST (25MM) | 1 шт. | — | |
|
| 27 | 90459-438-000 | WASHER (10.2MM) | 1 шт. | — | |
|
| 28 | 90461-KY2-000 | WASHER, SPLINE (25MM) | 1 шт. | — | |
|
| 29 | 90462-KAZ-000 | WASHER, LOCK (25MM) | 1 шт. | — | |
|
| 30 | 90463-MLB-D00 | WASHER (28MM) (M1.0) | 1 шт. | — | |
|
| 31 | 90464-MLB-D00 | WASHER (28MM) (M1.0) | 1 шт. | — | |
|
| 32 | 90601-107-000 | CIRCLIP (25MM) | 2 шт. | — | |
|
| 33 | 90603-MN4-000 | CIRCLIP (28MM) | 3 шт. | — | |
|
| 34 | 91001-MLB-D01 | BRG (63/28) | 1 шт. | — | |
|
| 35 | 91006-MGS-D31 | BEARING, RADIAL BALL (6204U) | 1 шт. | — | |
|
| 36 | 91022-MJE-DB1 | BEARING, NEEDLE (20MM) (NTN) | 1 шт. | — | |
|
| 37 | 91026-MEL-003 | BEARING, NEEDLE (24X28X10) | 1 шт. | — | |
|
| 38 | 91207-MBB-013 | OIL SEAL (39X72X8) | 1 шт. | — | |
|
| 39 | 94560-72200 | RING, SNAP (72MM) | 1 шт. | — | |
|
| 40 | 95701-06014-00 | BOLT, FLANGE (6X14) (Honda Code 2410884) | 3 шт. | — | |
|
