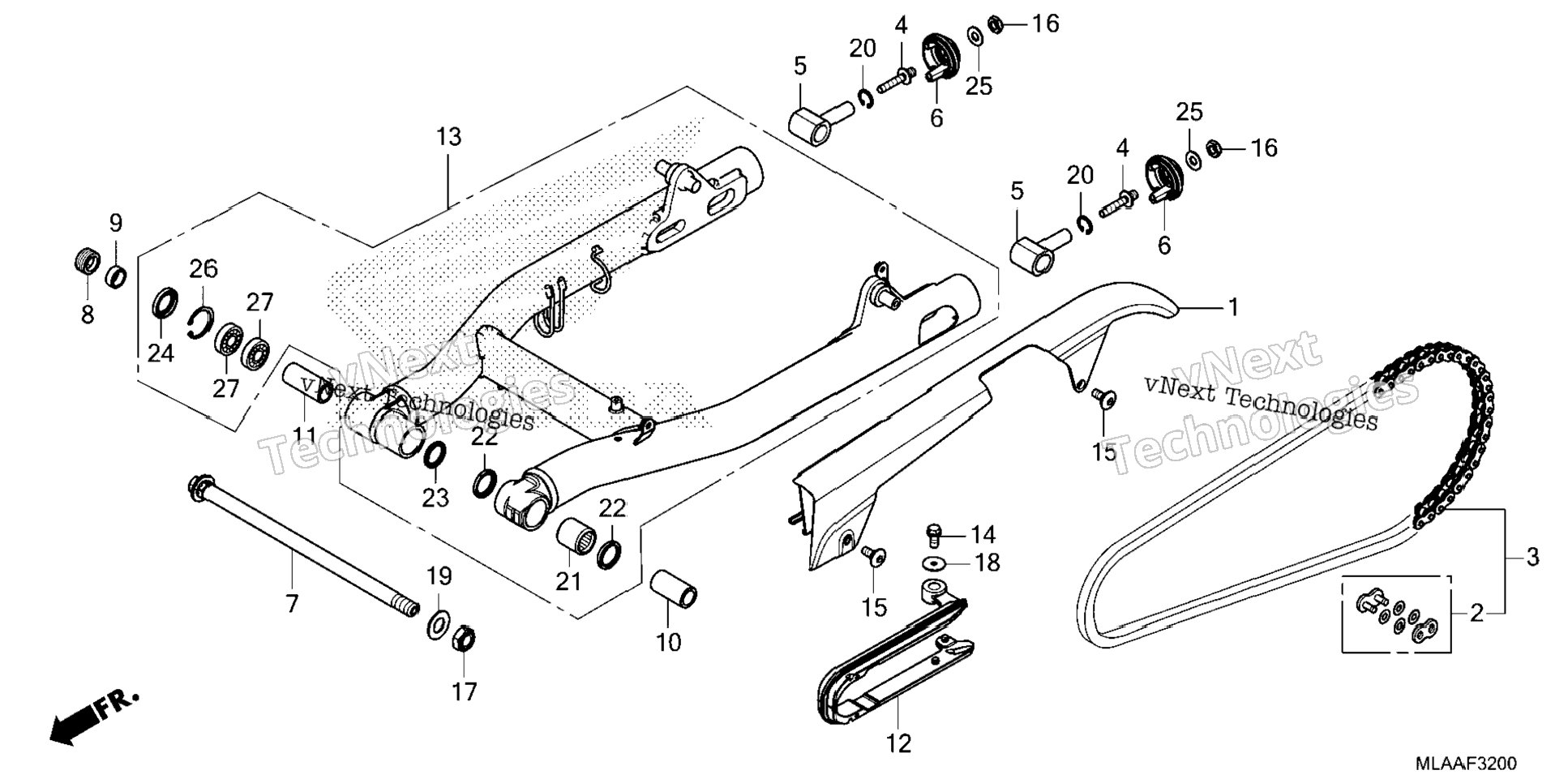

| 1 | 40510-MLA-A00 | CASE, DRIVE CHAIN | 1 шт. | — | |
|
| 2 | 40531-MLA-A02 | MASTER LINK (RK JAPAN) | 1 шт. | — | |
|
| 3 | 40540-MLA-A02 | CHAIN, DRIVE (RK JAPAN) (RKBP525MRO-120LJFZ) (STANDARD LINK 114L) | 1 шт. | — | |
|
| 4 | 40542-K87-A00 | BOLT, CHAIN ADJUSTING | 2 шт. | — | |
|
| 5 | 40543-MLA-A00 | ADJUSTER, CHAIN | 2 шт. | — | |
|
| 6 | 40546-MLA-A00 | CAP, SWINGARM END | 2 шт. | — | |
|
| 7 | 52101-MLA-A00 | BOLT, SWINGARM PIVOT | 1 шт. | — | |
|
| 8 | 52109-MLA-A00 | BOLT, PIVOT ADJUSTING | 1 шт. | — | |
|
| 9 | 52141-MKS-E00 | COLLAR A, PIVOT | 1 шт. | — | |
|
| 10 | 52142-MLA-A00 | COLLAR, L. PIVOT DISTANCE | 1 шт. | — | |
|
| 11 | 52143-MLA-A00 | COLLAR, R. PIVOT DISTANCE | 1 шт. | — | |
|
| 12 | 52170-MLA-A00 | SLIDER, CHAIN | 1 шт. | — | |
|
| 13 | 52200-MLA-A00 | SWINGARM SUB-ASSY., RR. | 1 шт. | — | |
|
| 14 | 90013-GHB-620 | BOLT, FLANGE (6X14) | 1 шт. | — | |
|
| 15 | 90118-MJK-N20 | SCREW, SPECIAL (6X14) | 2 шт. | — | |
|
| 16 | 90301-MLA-A01 | NUT, U (10MM) | 2 шт. | — | |
|
| 17 | 90305-GW2-711 | NUT, U (16MM) | 1 шт. | — | |
|
| 18 | 90404-GE2-760 | WASHER, PLAIN (6MM) | 1 шт. | — | |
|
| 19 | 90501-K87-A00 | WASHER, PLAIN (16.4X32X2) | 1 шт. | — | |
|
| 20 | 90651-K87-A00 | CIRCLIP (INNER) (20) | 2 шт. | — | |
|
| 21 | 91071-MT7-003 | BEARING, NEEDLE (NTN) | 1 шт. | — | |
|
| 22 | 91202-MAL-601 | DUST SEAL (25X33X4) | 2 шт. | — | |
|
| 23 | 91203-GC8-003 | OIL SEAL (24X31X3.5) | 1 шт. | — | |
|
| 24 | 91214-MAL-601 | DUST SEAL (23X35X5) | 1 шт. | — | |
|
| 25 | 94101-10700 | WASHER, PLAIN (10MM) | 2 шт. | — | |
|
| 26 | 94520-35000 | CIRCLIP (INNER) (35MM) | 1 шт. | — | |
|
| 27 | 96100-60030-10 | BEARING, RADIAL BALL (6003) | 2 шт. | — | |
|
