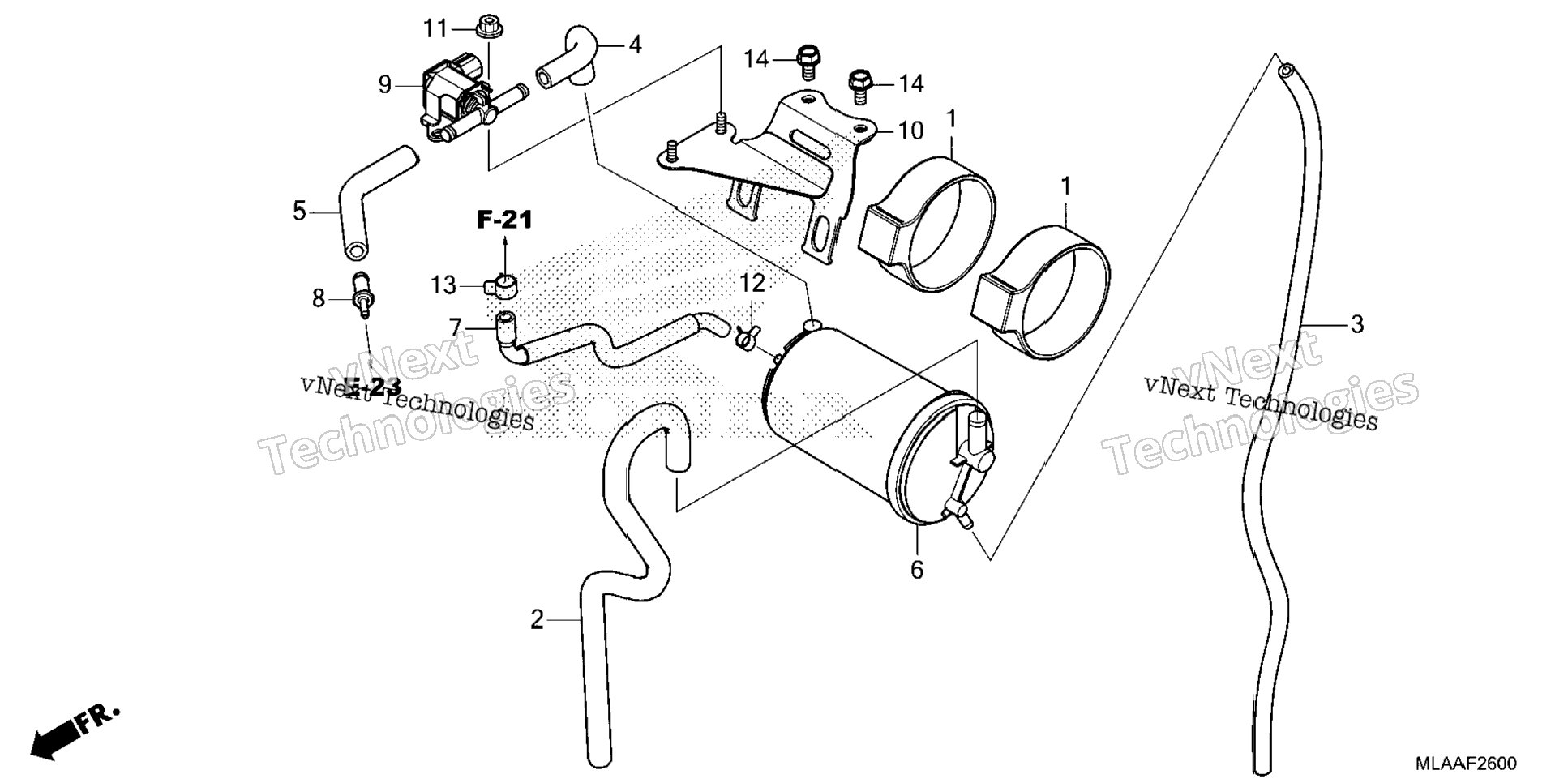

| 1 | 17411-KPP-930 | RUBBER, CANISTER MOUNTING | 2 шт. | — | |
|
| 2 | 17411-MLA-A00 | TUBE, OPEN AIR | 1 шт. | — | |
|
| 3 | 17412-MLA-A00 | TUBE, CANISTER DRAIN | 1 шт. | — | |
|
| 4 | 17416-MLA-A00 | TUBE (PCSV-CANISTER) | 1 шт. | — | |
|
| 5 | 17417-MLA-A00 | TUBE, PURGE CONTROL SOLENOID JOINT | 1 шт. | — | |
|
| 6 | 17421-KYJ-902 | CANISTER | 1 шт. | — | |
|
| 7 | 17545-MLA-A00 | TUBE, CHARGE | 1 шт. | — | |
|
| 8 | 19126-KM1-010 | JOINT, TUBE | 1 шт. | — | |
|
| 9 | 36162-K2Y-J01 | VALVE, PUR CONT SOL | 1 шт. | — | |
|
| 10 | 50346-MLA-A00 | STAY, CANISTER | 1 шт. | — | |
|
| 11 | 94050-05080 | NUT, FLANGE (5MM) | 2 шт. | — | |
|
| 12 | 95002-40800-08 | CLAMP, TUBE (D8) | 1 шт. | — | |
|
| 13 | 95002-41050-08 | CLAMP, TUBE (D10.5) | 1 шт. | — | |
|
| 14 | 95701-06012-07 | BOLT, FLANGE (6X12) | 2 шт. | — | |
|
