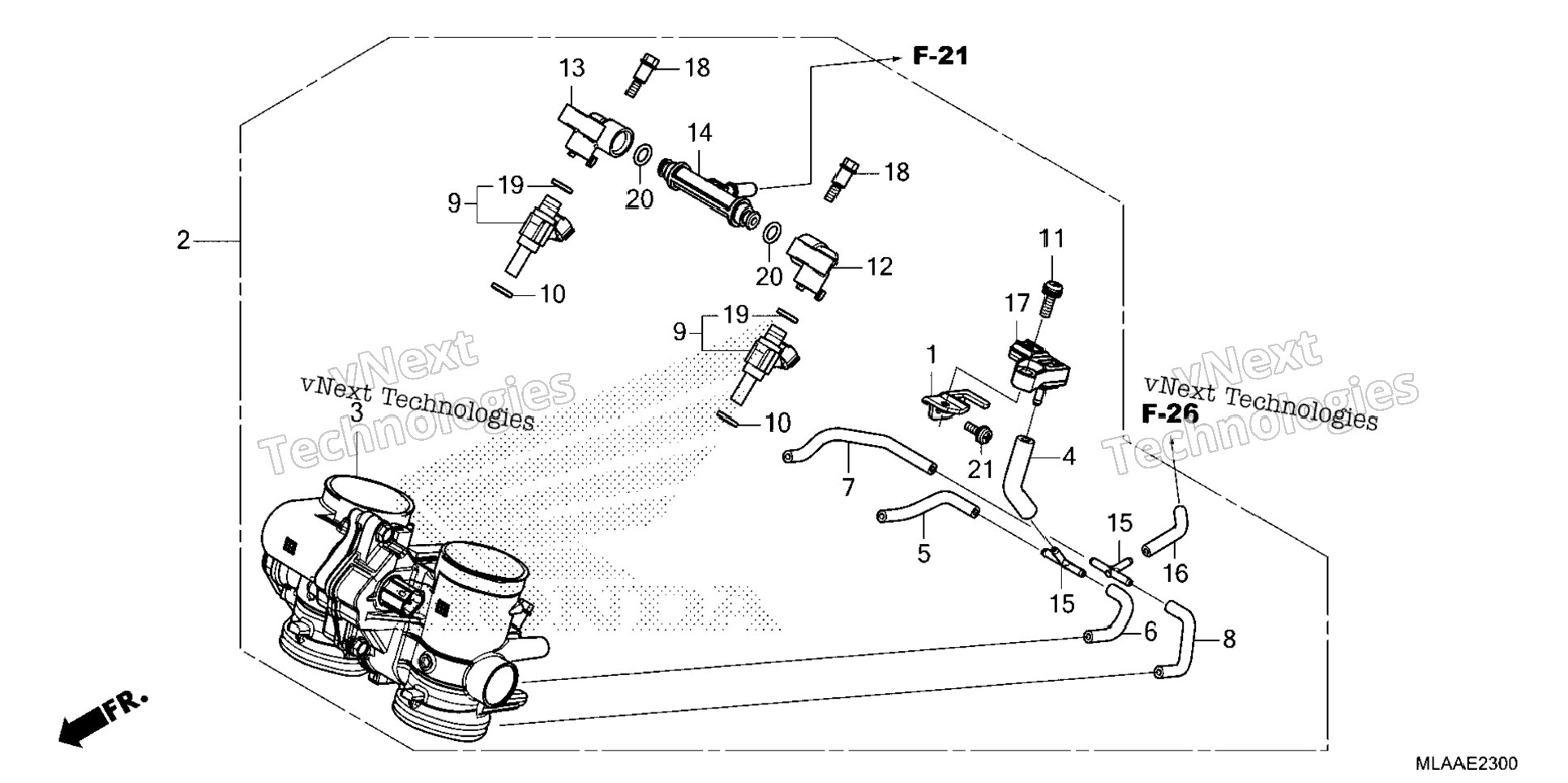

| 1 | 16191-MLA-A01 | STAY, PB SENSOR | 1 шт. | — | |
|
| 2 | 16400-MLA-A01 | BODY ASSY., THROTTLE (GNJ2A A) | 1 шт. | — | |
|
| 3 | 16410-MLA-A01 | BODY SET | 0 шт. | — | |
|
| 4 | 16411-MLA-A00 | TUBE, MAP SENSOR | 1 шт. | — | |
|
| 5 | 16412-MLA-A00 | TUBE, PB (R) | 1 шт. | — | |
|
| 6 | 16413-MLA-A00 | TUBE, PB (L) | 1 шт. | — | |
|
| 7 | 16414-MLA-A00 | TUBE, PURGE (R) | 1 шт. | — | |
|
| 8 | 16415-MLA-A00 | TUBE, PURGE (L) | 1 шт. | — | |
|
| 9 | 16450-MKS-E01 | INJECTOR ASSY., FUEL | 2 шт. | — | |
|
| 10 | 16472-MKP-T00 | SEAL RING, INJECTOR | 2 шт. | — | |
|
| 11 | 16542-MEL-003 | BOLT-WASHER (6X18) | 1 шт. | — | |
|
| 12 | 16610-MKP-T01 | PIPE, FUEL (A) | 1 шт. | — | |
|
| 13 | 16620-MKP-T01 | PIPE, FUEL (B) | 1 шт. | — | |
|
| 14 | 16630-MKS-E01 | T-JOINT, FUEL | 1 шт. | — | |
|
| 15 | 17201-MG9-000 | JOINT, VACUUM TUBE (A) | 2 шт. | — | |
|
| 16 | 17419-MLA-A00 | TUBE, JOINT-HEAD | 1 шт. | — | |
|
| 17 | 46401-TM8-A01 | SENSOR A, MASTER POWER PRESSURE | 1 шт. | — | |
|
| 18 | 90021-MGZ-D02 | BOLT, SHOULDER | 4 шт. | — | |
|
| 19 | 91301-MKP-T01 | O-RING | 2 шт. | — | |
|
| 20 | 91301-PLC-000 | O-RING (7.47X3.6) | 2 шт. | — | |
|
| 21 | 93892-06014-18 | SCREW-WASHER (6X14) | 1 шт. | — | |
|
