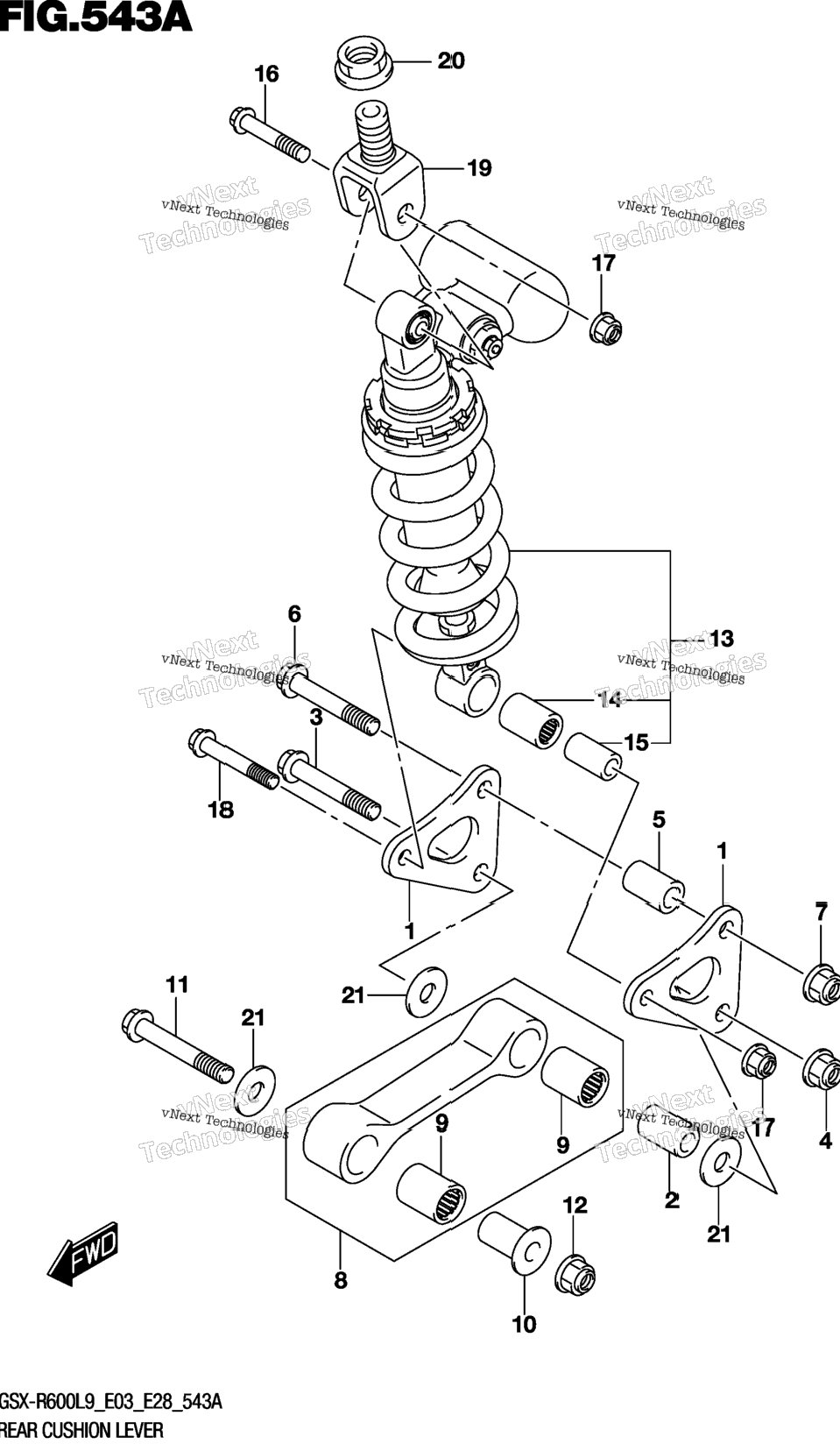

| 1 | 62611-14J00 | LEVER,REAR CUSHION | 2 шт. | — | |
|
| 2 | 62317-27C10 | SPACER,RR CUSHION LEVER FR (1 | 1 шт. | — | |
|
| 3 | 62658-47H00 | BOLT,RR CUSHION LEVER | 1 шт. | — | |
|
| 4 | 09159-12056 | NUT | 1 шт. | — | |
|
| 5 | 62317-44B00 | SPACER,RR CUSHION LEVER FR | 1 шт. | — | |
|
| 6 | 62658-47H00 | BOLT,RR CUSHION LEVER | 1 шт. | — | |
|
| 7 | 09159-12056 | NUT | 1 шт. | — | |
|
| 8 | 62602-14860 | ROD,RR CUSHION | 1 шт. | — | |
|
| 9 | 09263-20074 | .BEARING (20X27X32) | 2 шт. | — | |
|
| 10 | 62647-47H00 | SPACER,RR CUSHION ROD FR | 1 шт. | — | |
|
| 11 | 62621-47H00 | BOLT,RR CUSHION ROD | 1 шт. | — | |
|
| 12 | 09159-12056 | NUT | 1 шт. | — | |
|
| 13 | 62100-14850-019 | ABSORBER ASSY, REAR SHOCK (BL | 0 шт. | — | |
|
| 14 | 62100-14850-019 | ABSORBER ASSY, REAR SHOCK (BL | 0 шт. | — | |
|
| 15 | 09263-17046 | BEARING (17X24X32) | 1 шт. | — | |
|
| 16 | 62317-47H00 | SPACER,RR SHOCK ABS LWR | 1 шт. | — | |
|
| 17 | 09103-10143 | BOLT (10X55) UPPER | 1 шт. | — | |
|
| 18 | 09159-10115 | NUT (M10) | 2 шт. | — | |
|
| 19 | 62313-47H00 | BOLT,RR SHOCK ABSORBER LWR (1 | 1 шт. | — | |
|
| 20 | 62993-47H00 | BRACKET,RR SHOCK ABS UPPER | 1 шт. | — | |
|
| 21 | 62994-47H00 | NUT,RR SHOCK ABS BRACKET | 1 шт. | — | |
|
| 22 | 09160-12037 | WASHER (12X34X1.0) | 3 шт. | — | |
|
