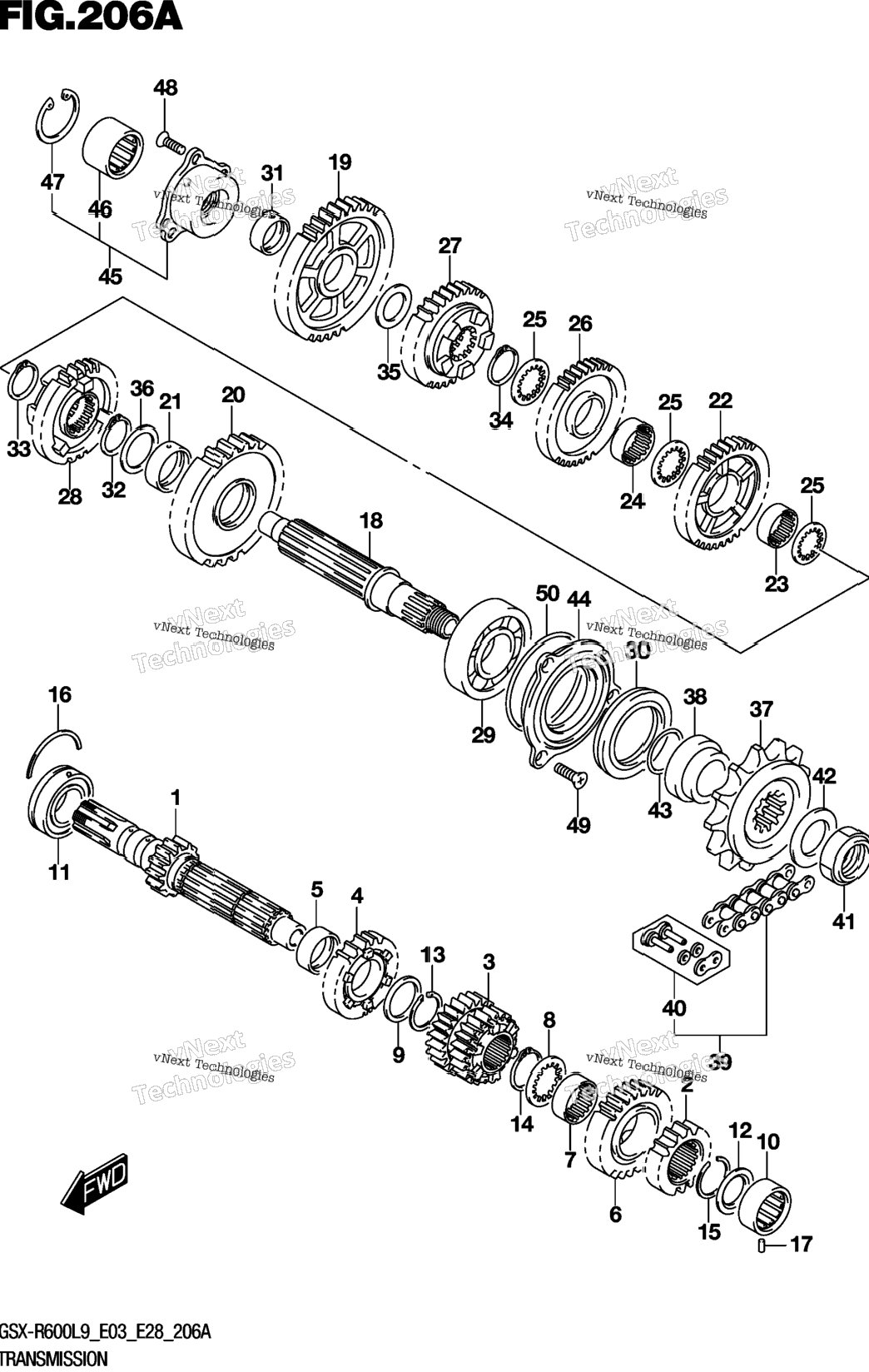

| 1 | 24120-14J00 | SHAFT,CNTR (NT:16) | 1 шт. | — | |
|
| 2 | 24221-14J00 | GEAR,2ND DRIVE (NT:19) | 0 шт. | — | |
|
| 3 | 24231-14J00 | GEAR,3RD & 4TH DRIVE (NT:21/2 | 1 шт. | — | |
|
| 4 | 24251-01H00 | GEAR,5TH DRIVE (NT:23) | 1 шт. | — | |
|
| 5 | 24252-35F00 | BUSH,5TH DRIVE GEAR | 1 шт. | — | |
|
| 6 | 24261-14J00 | GEAR,6TH DRIVE (NT:26) | 0 шт. | — | |
|
| 7 | 24262-35F10 | BUSH,6TH DRIVE GEAR | 1 шт. | — | |
|
| 8 | 09167-27001 | WASHER,LOCK (27X36X1) | 1 шт. | — | |
|
| 9 | 09160-27008 | WASHER (27X36X1.0) | 1 шт. | — | |
|
| 10 | 09263-20087 | BEARING (20X34X13.5) LH | 1 шт. | — | |
|
| 11 | 09262-25150 | BEARING (25X62X17) RH | 1 шт. | — | |
|
| 12 | 09285-20006 | SEAL,OIL (20X31.2X2.7) | 1 шт. | — | |
|
| 13 | 09380-27006 | CIRCLIP | 1 шт. | — | |
|
| 14 | 09380-27006 | CIRCLIP | 1 шт. | — | |
|
| 15 | 09380-27004 | CIRCLIP | 1 шт. | — | |
|
| 16 | 09390-62012 | C-RING | 1 шт. | — | |
|
| 17 | 09261-06003 | PIN (6X10) LH | 1 шт. | — | |
|
| 18 | 24131-14J00 | SHAFT,DRIVE | 1 шт. | — | |
|
| 19 | 24311-14J00 | GEAR,1ST DRIVEN (NT:43) | 1 шт. | — | |
|
| 20 | 24321-14J00 | GEAR,2ND DRIVEN (NT40) | 1 шт. | — | |
|
| 21 | 24322-35F00 | BUSH,2ND DRIVEN GEAR | 1 шт. | — | |
|
| 22 | 24331-14J00 | GEAR,3RD DRIVEN (NT:37) | 1 шт. | — | |
|
| 23 | 24332-46H00 | BUSH | 1 шт. | — | |
|
| 24 | 24332-46H00 | BUSH | 1 шт. | — | |
|
| 25 | 24333-02F00 | WASHER,3RD & 4TH DRIVEN | 3 шт. | — | |
|
| 26 | 24341-14J00 | GEAR,4TH DRIVEN (NT:35) | 1 шт. | — | |
|
| 27 | 24351-01H01 | GEAR,5TH DRIVEN (NT:31) | 1 шт. | — | |
|
| 28 | 24361-14J00 | GEAR,6TH DRIVEN (NT:32) | 0 шт. | — | |
|
| 29 | 09262-28045 | BEARING (28X68X18) LH | 1 шт. | — | |
|
| 30 | 09283-42018 | SEAL,OIL (42X62X7) | 1 шт. | — | |
|
| 31 | 09300-22008 | BUSH (22X26X9) | 1 шт. | — | |
|
| 32 | 09380-27006 | CIRCLIP | 1 шт. | — | |
|
| 33 | 09380-27006 | CIRCLIP | 1 шт. | — | |
|
| 34 | 09380-27006 | CIRCLIP | 1 шт. | — | |
|
| 35 | 09181-22223 | SHIM (22X34X1) LH | 1 шт. | — | |
|
| 36 | 09160-27008 | WASHER (27X36X1.0) | 1 шт. | — | |
|
| 37 | 27510-20A10 | SPROCKET,ENGINE (NT:16) | 1 шт. | — | |
|
| 38 | 27531-14J00 | SPACER,ENGINE SPROCKET | 1 шт. | — | |
|
| 39 | 27600-06G40-114 | CHAIN ASSY,DRIVE (RK 525SMOZ8 | 1 шт. | — | |
|
| 40 | 27620-06G40 | .JOINT SET,DRIVE CHAIN | 1 шт. | — | |
|
| 41 | 09159-20004 | NUT | 1 шт. | — | |
|
| 42 | 09160-25009 | WASHER (25X41X3) | 1 шт. | — | |
|
| 43 | 09280-24010 | O RING (D:2.4,ID:23.7) | 1 шт. | — | |
|
| 44 | 24751-14J00 | RETAINER,DRIVE SHAFT BRG LH | 1 шт. | — | |
|
| 45 | 24771-01810 | HOUSING,DRIVE SHAFT SET | 1 шт. | — | |
|
| 46 | 09263-20069 | BEARING (20X34X17.5) | 1 шт. | — | |
|
| 47 | 08331-41349 | CIRCLIP | 1 шт. | — | |
|
| 48 | 09139-06159 | SCREW (6X20) | 3 шт. | — | |
|
| 49 | 09139-06159 | SCREW (6X20) | 3 шт. | — | |
|
| 50 | 09280-68010 | O-RING (D:1.8,ID:67.5) | 1 шт. | — | |
|
