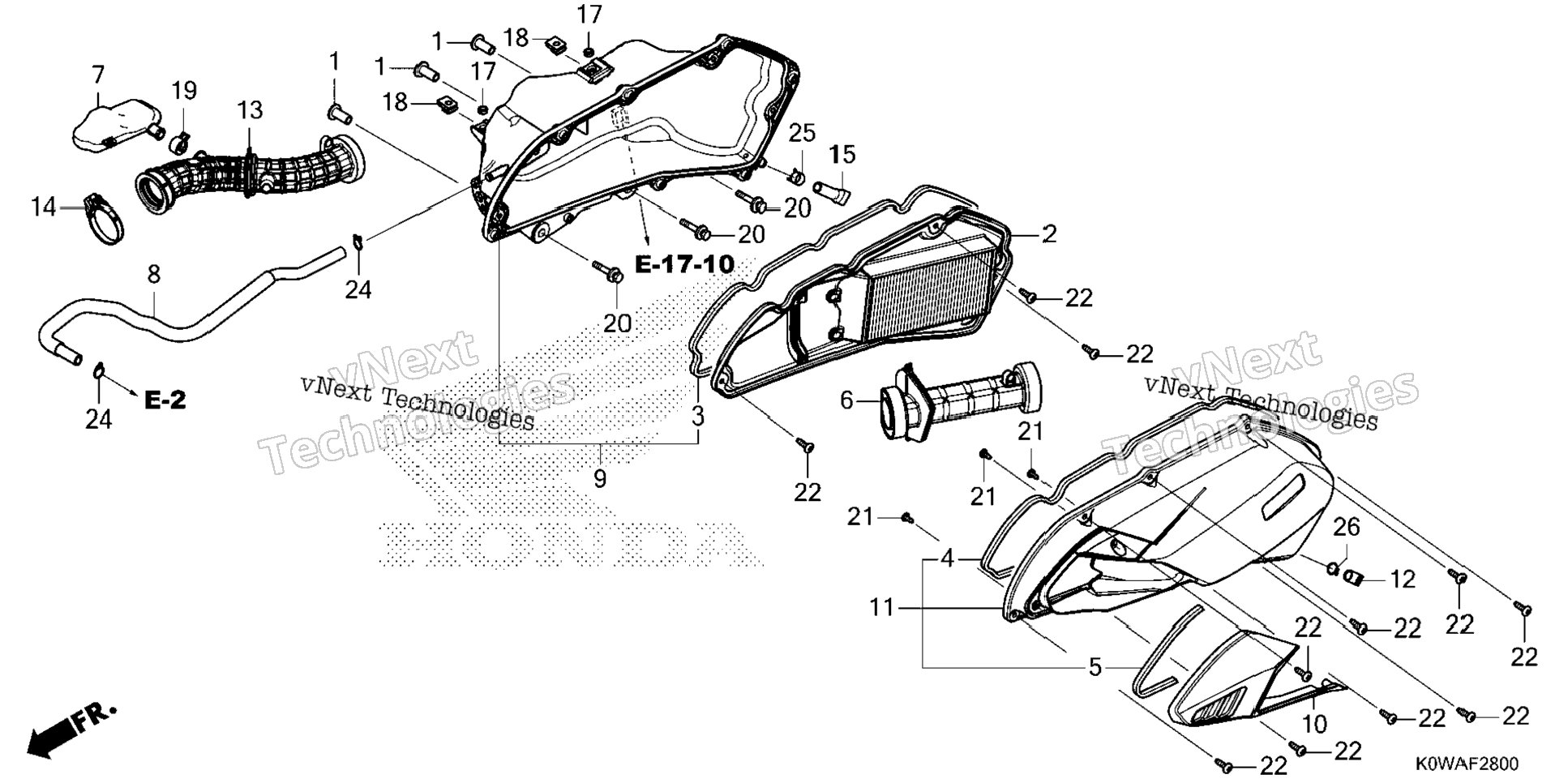

| 1 | 17208-GFM-970 | COLLAR, AIR CLEANER SETTING | 3 шт. | — | |
|
| 2 | 17210-K1Z-T00 | ELEMENT, AIR CLEANER | 1 шт. | — | |
|
| 3 | 17213-K97-T00 | SEAL, AIR/C | 1 шт. | — | |
|
| 4 | 17213-K97-T00 | SEAL, AIR/C | 1 шт. | — | |
|
| 5 | 17214-K1Z-J10 | SEAL, AIR CLEANER DUCT | 1 шт. | — | |
|
| 6 | 17215-K1Z-J10 | DUCT, AIR CLEANER | 1 шт. | — | |
|
| 7 | 17216-K1Z-J10 | RESONATOR | 1 шт. | — | |
|
| 8 | 17218-K1Z-J10 | TUBE, BREATHER | 1 шт. | — | |
|
| 9 | 17225-K1Z-T00 | CASE SUB-ASSY. | 1 шт. | — | |
|
| 10 | 17234-K1Z-J10 | COVER, AIR CLEANER DUCT | 1 шт. | — | |
|
| 11 | 17235-K1Z-T00 | CVR SUB, A/CLNR | 1 шт. | — | |
|
| 12 | 17236-KVB-900 | PLUG, AIR CLEANER DRAIN | 1 шт. | — | |
|
| 13 | 17253-K1Z-J10 | TUBE, AIR CLEANER CONNECTING | 1 шт. | — | |
|
| 14 | 17256-K0R-V00 | BAND, AIR CLEANER CONNECTING TUBE (44) | 1 шт. | — | |
|
| 15 | 17261-KVB-T00 | TUBE, DRAIN | 1 шт. | — | |
|
| 16 | 80108-K45-N40 | COLLAR, RR. FENDER | 2 шт. | — | |
|
| 17 | 90311-MT3-000 | NUT, CLIP (6MM) | 2 шт. | — | |
|
| 18 | 90678-K38-900 | CLIP, RESONATOR | 1 шт. | — | |
|
| 19 | 93404-06035-07 | BOLT-WASHER (6X35) | 3 шт. | — | |
|
| 20 | 93903-24380 | SCREW, TAPPING (4X12) | 3 шт. | — | |
|
| 21 | 93903-25480 | SCREW, TAPPING (5X20) | 11 шт. | — | |
|
| 22 | 95002-02130 | CLIP, TUBE (B12.5) | 2 шт. | — | |
|
| 23 | 95002-41200-08 | CLAMP, TUBE (D12) | 1 шт. | — | |
|
| 24 | 95002-80000 | CLIP, TUBE (C12) | 1 шт. | — | |
|
