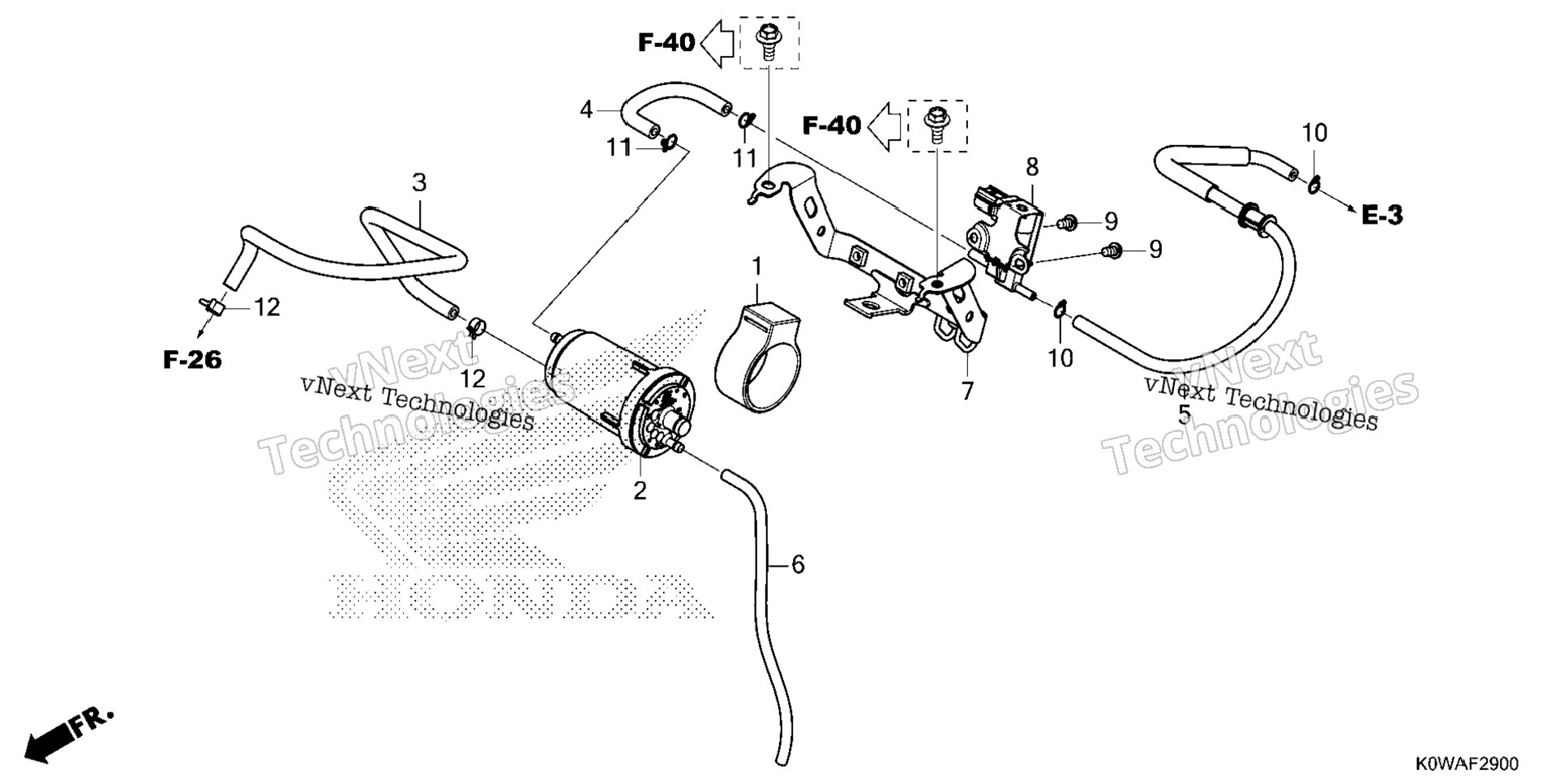

| 1 | 17311-GFM-K00 | RUBBER, CANISTER MOUNT | 1 шт. | — | |
|
| 2 | 17410-K1Z-J11 | CANISTER | 1 шт. | — | |
|
| 3 | 17411-K1Z-A00 | TUBE, CHARGE | 1 шт. | — | |
|
| 4 | 17414-K1Z-J10 | TUBE A, PURGE | 1 шт. | — | |
|
| 5 | 17415-K0W-JA0 | TUBE B, PURGE | 1 шт. | — | |
|
| 6 | 17417-K1Z-J10 | TUBE, DRAIN | 1 шт. | — | |
|
| 7 | 17450-K1Z-J10 | STAY, CANISTER | 1 шт. | — | |
|
| 8 | 36162-K0R-V01 | VALVE, PURGE CONTROL SOLENOID | 1 шт. | — | |
|
| 9 | 93500-05008-0H | SCREW, PAN (5X8) | 2 шт. | — | |
|
| 10 | 95002-02070 | CLIP, TUBE (B7) CLIP, TUBE (B6.5) | 2 шт. | — | |
|
| 11 | 95002-02080 | CLIP, TUBE (B8) CLIP, TUBE (B7) | 2 шт. | — | |
|
| 12 | 95002-40800-08 | CLAMP, TUBE (D8) | 2 шт. | — | |
|
