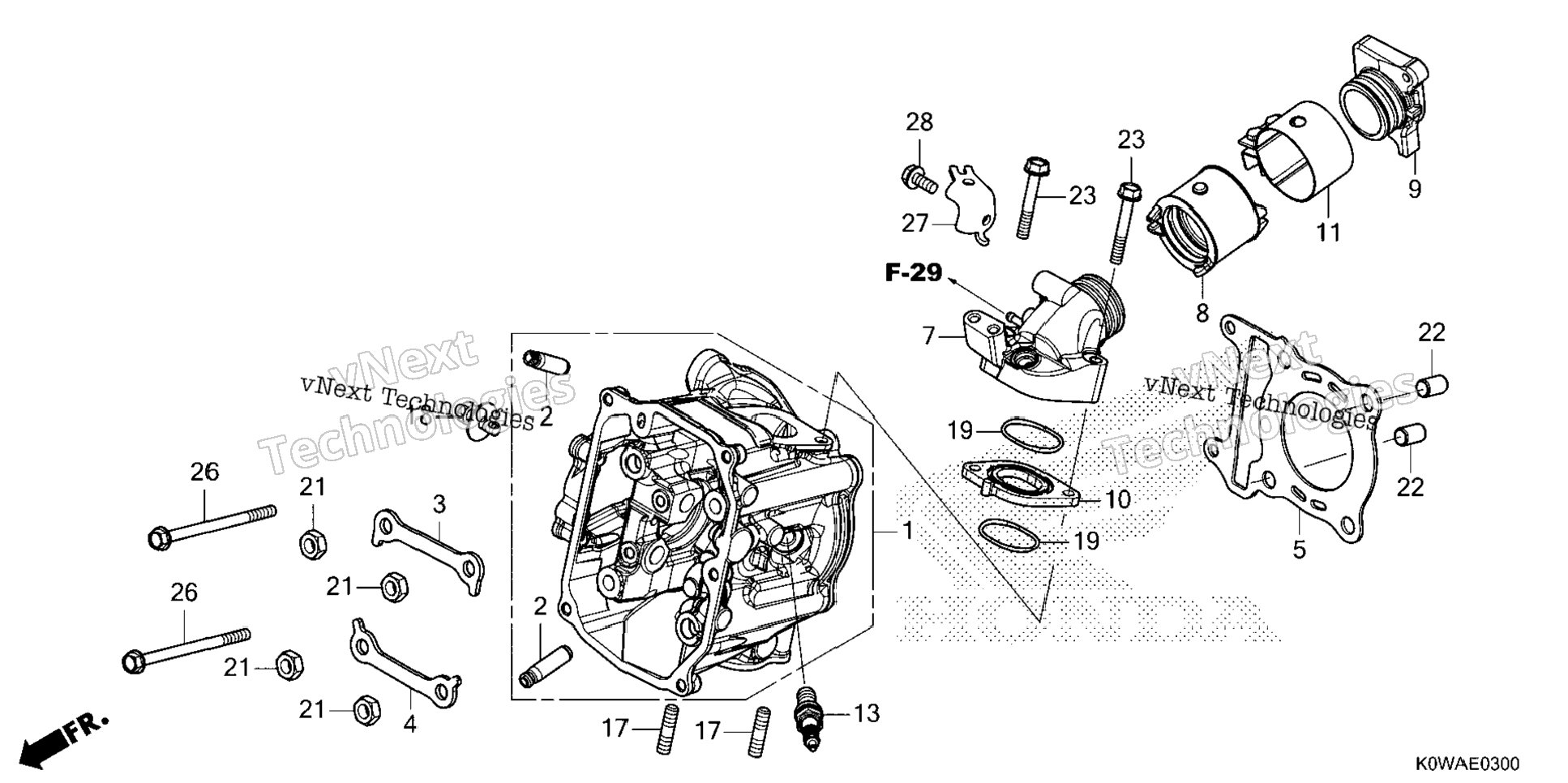

| 1 | 12200-K2S-N00 | CYLINDER HEAD COMP | 1 шт. | — | |
|
| 2 | 12205-KYJ-305 | GUIDE, EX. VALVE (OVER SIZE) (INLET SIDE) | 4 шт. | — | |
|
| 3 | 12212-K0R-V00 | PLATE, CYLINDER HEAD IN. | 1 шт. | — | |
|
| 4 | 12213-K0R-V00 | PLATE, CYLINDER HEAD EX. | 1 шт. | — | |
|
| 5 | 12251-K1Z-J11 | GASKET, CYLINDER HEAD (NIPPON LEAKLESS) | 1 шт. | — | |
|
| 7 | 17110-K0W-JA0 | PIPE COMP, INLET | 1 шт. | — | |
|
| 8 | 17112-K0R-V00 | INSULATOR, THROTTLE BODY | 1 шт. | — | |
|
| 9 | 17115-K0R-V00 | PIPE B, INLET | 1 шт. | — | |
|
| 10 | 17119-K0R-V10 | INSULATOR, IN. PIPE | 1 шт. | — | |
|
| 11 | 17255-K0R-V00 | BAND, INSULATOR | 1 шт. | — | |
|
| 13 | 31917-K0R-V01 | SPARK PLUG (LMAR8L-9) (NGK) | 1 шт. | — | |
|
| 17 | 90004-KGF-910 | BOLT, STUD (7X17) | 2 шт. | — | |
|
| 18 | 90022-K40-F00 | BOLT-WASHER (6X12) | 1 шт. | — | |
|
| 19 | 91302-K40-F00 | O-RING, IN. PIPE | 2 шт. | — | |
|
| 21 | 94030-08280 | NUT, HEX. (8MM) | 4 шт. | — | |
|
| 22 | 94301-10160 | PIN, DOWEL (10X16) (Honda Code 0058206) | 2 шт. | — | |
|
| 23 | 95701-06040-00 | BOLT, FLANGE (6X40) BOLT, FLANGE (6X45) | 2 шт. | — | |
|
| 26 | 95701-06090-00 | BOLT, FLANGE (6X90) (Honda Code 2533842) | 2 шт. | — | |
|
| 27 | 17533-K0W-NA0 | STAY COMP | 1 шт. | — | |
|
| 28 | 95701-06014-00 | BOLT, FLANGE (6X14) (Honda Code 2410884) | 1 шт. | — | |
|
