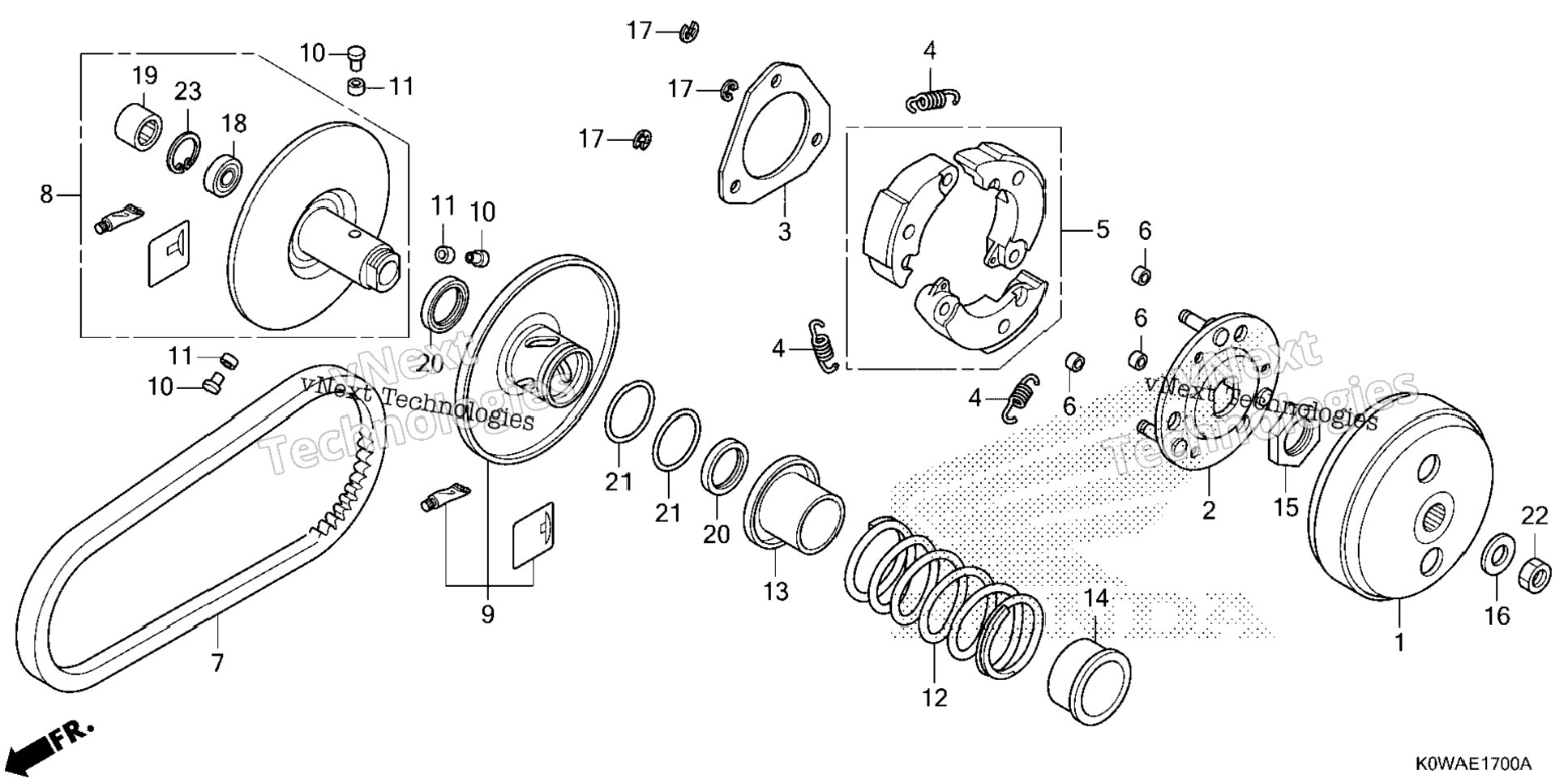

| 1 | 22100-K0W-NA0 | CLUTCH OUTER COMP | 1 шт. | — | |
|
| 2 | 22350-GFM-900 | PLATE, DRIVE | 1 шт. | — | |
|
| 3 | 22350-KVB-900 | PLATE, DRIVE | 1 шт. | — | |
|
| 4 | 22350-K97-T01 | PLATE COMP, DRIVE | 1 шт. | — | |
|
| 5 | 22361-KVB-900 | PLATE, CLUTCH SIDE | 1 шт. | — | |
|
| 6 | 22361-K29-V81 | PLATE, CLUTCH SIDE | 1 шт. | — | |
|
| 7 | 22401-KGG-910 | SPRING, CLUTCH | 3 шт. | — | |
|
| 8 | 22535-K1N-V00 | WEIGHT SET, CLUTCH | 1 шт. | — | |
|
| 9 | 22804-148-000 | RUBBER, CLUTCH DAMPER | 3 шт. | — | |
|
| 10 | 23100-K1Z-J11 | BELT, DRIVE | 1 шт. | — | |
|
| 11 | 23205-K0W-NA0 | FACE SET, DRIVEN | 1 шт. | — | |
|
| 12 | 23224-K1Z-J10 | FACE SET, MOVABLE DRIVEN | 1 шт. | — | |
|
| 13 | 23225-KSY-900 | PIN, ROLLER GUIDE | 3 шт. | — | |
|
| 14 | 23226-GFM-900 | ROLLER, GUIDE | 3 шт. | — | |
|
| 15 | 23226-KVB-900 | ROLLER, GUIDE | 3 шт. | — | |
|
| 16 | 23233-K1Z-J10 | SPRING, DRIVEN FACE | 1 шт. | — | |
|
| 17 | 23237-K40-F00 | COLLAR, SEAL | 1 шт. | — | |
|
| 18 | 23238-KZR-600 | COLLAR, SPRING | 1 шт. | — | |
|
| 19 | 90202-KN7-670 | NUT, SPECIAL (28MM) | 1 шт. | — | |
|
| 20 | 90441-GY6-940 | WASHER (12.2X29X2.5) | 1 шт. | — | |
|
| 21 | 90605-166-720 | CIRCLIP (7MM) | 3 шт. | — | |
|
| 22 | 91002-GA7-701 | BEARING, RADIAL BALL (6902U) (TOYO) | 1 шт. | — | |
|
| 23 | 91004-GGC-G01 | BEARING, RADIAL BALL (6902U) | 1 шт. | — | |
|
| 24 | 91009-KVY-961 | BEARING, RADIAL BALL (6902U) (NSK) | 1 шт. | — | |
|
| 25 | 91009-K93-T01 | BRG (6902U) | 1 шт. | — | |
|
| 26 | 91001-KCW-003 | BEARING, NEEDLE (20X29X18) (NTN) | 1 шт. | — | |
|
| 27 | 91109-KVY-902 | BEARING, NEEDLE (20X29X18) (SCHAEFFLER) | 1 шт. | — | |
|
| 28 | 91109-K2S-N01 | BEARING (20X29X18) | 1 шт. | — | |
|
| 29 | 91211-KN7-671 | SEAL, DRIVEN FACE (34X41X4) | 2 шт. | — | |
|
| 30 | 91211-K97-T01 | SEAL (34X41X4) | 2 шт. | — | |
|
| 31 | 91384-KVB-900 | O-RING (38.8X1.9) | 2 шт. | — | |
|
| 32 | 94030-12200 | NUT, HEX. (12MM) | 1 шт. | — | |
|
| 33 | 94520-28000 | CIRCLIP (INNER) (28MM) | 1 шт. | — | |
|
