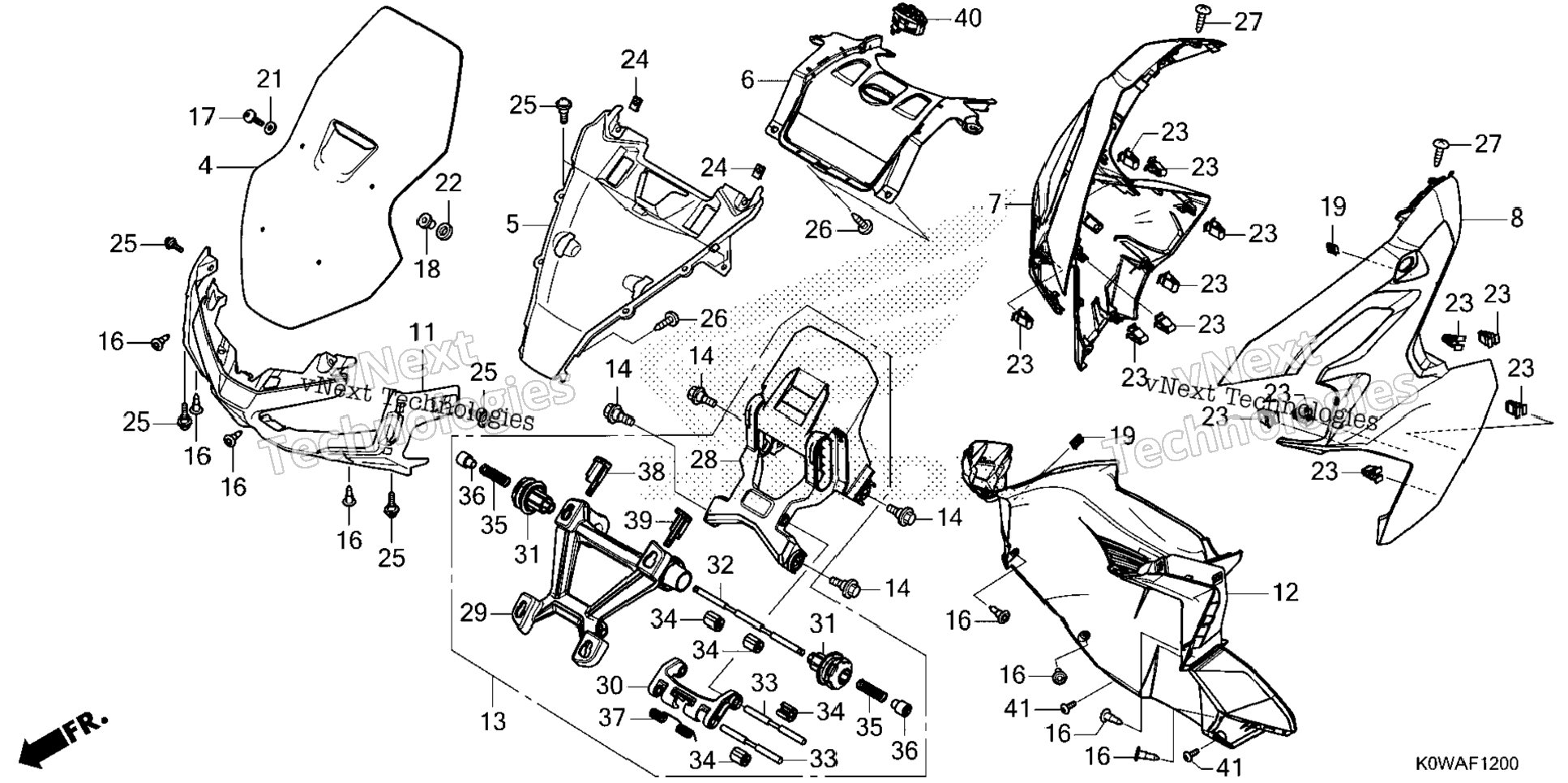

| 1 | 64100-K0W-NA0ZA | SET ILLUS (TYPE1) | 1 шт. | — | |
|
| 2 | 64336-K0W-N00ZD | COVER, FR. (UPPER) *NH436M* (MAT GUNPOWDER BLACK METALLIC) | 1 шт. | — | |
|
| 3 | 64336-K0W-N00ZS | COVER, FR. *R402M* | 1 шт. | — | |
|
| 4 | 64336-K0W-N00ZT | COVER, FR. *NHC53P* | 1 шт. | — | |
|
| 5 | 64336-K0W-N00ZU | COVER, FR. *B241P* | 1 шт. | — | |
|
| 6 | 64337-K0W-NA0ZA | CVR, MULTI SW *NH1* | 1 шт. | — | |
|
| 7 | 64501-K0W-NA0ZA | COVER, FR. *R402M* | 1 шт. | — | |
|
| 8 | 64501-K0W-NA0ZB | COVER, FR. *NH436M* | 1 шт. | — | |
|
| 9 | 64501-K0W-NA0ZC | COVER, FR. *NHC53P* | 1 шт. | — | |
|
| 10 | 64501-K0W-NA0ZD | COVER, FR. *B241P* | 1 шт. | — | |
|
| 11 | 64502-K0W-NA0ZA | COVER, FR. *R402M* | 1 шт. | — | |
|
| 12 | 64502-K0W-NA0ZB | COVER, FR. *NH436M* | 1 шт. | — | |
|
| 13 | 64502-K0W-NA0ZC | COVER, FR. *NHC53P* | 1 шт. | — | |
|
| 14 | 64502-K0W-NA0ZD | COVER, FR. *B241P* | 1 шт. | — | |
|
| 15 | 64503-K0W-N00 | COVER, FR. CENTER | 1 шт. | — | |
|
| 16 | 64521-K0W-NA0 | COVER, FR. (LOWER) | 1 шт. | — | |
|
| 17 | 64700-K0W-N01 | LINK ASSY., SCREEN ADJUST | 1 шт. | — | |
|
| 18 | 90001-MFE-670 | BOLT, SPECIAL (6X16) | 4 шт. | — | |
|
| 19 | 90116-SP0-003 | CLIP, BUMPER SEAL | 8 шт. | — | |
|
| 20 | 90118-MJP-G50 | SCREW, PAN (5X20) (SUS) | 4 шт. | — | |
|
| 21 | 90156-GZ4-670 | NUT, WELL (5MM) | 4 шт. | — | |
|
| 22 | 90302-KWW-A00 | NUT, SPRING (4MM) | 2 шт. | — | |
|
| 23 | 90504-964-000 | WASHER, THRUST (5MM) | 4 шт. | — | |
|
| 24 | 90507-ZV1-000 | WASHER, NYLON (9MM) | 4 шт. | — | |
|
| 25 | 90666-K59-A11 | CLIP, SNAP FITTING (PO) | 13 шт. | — | |
|
| 26 | 90677-KAN-T00 | NUT, CLIP (5MM) | 2 шт. | — | |
|
| 27 | 91509-GE2-760 | SCREW, PAN (5X11.5) | 6 шт. | — | |
|
| 28 | 93903-24320 | SCREW, TAPPING (4X12) | 3 шт. | — | |
|
| 29 | 93903-34420 | SCREW, TAPPING (4X16) | 2 шт. | — | |
|
| 30 | 64701-K0W-N00 | BRACKET, ADJUST SCREEN | 1 шт. | — | |
|
| 31 | 64702-K0W-N00 | HOLDER, SCREEN | 1 шт. | — | |
|
| 32 | 64703-K0W-N00 | LINK, ARM | 1 шт. | — | |
|
| 33 | 64704-K0W-N00 | KNOB, ADJUST LOCK | 2 шт. | — | |
|
| 34 | 64705-K0W-N00 | SHAFT A, PIVOT | 1 шт. | — | |
|
| 35 | 64706-K0W-N00 | SHAFT B, PIVOT | 2 шт. | — | |
|
| 36 | 64707-K0W-N00 | CLIP | 4 шт. | — | |
|
| 37 | 64708-K0W-N00 | SPRING, ADJUST PIVOT | 2 шт. | — | |
|
| 38 | 64709-K0W-N00 | STOPPER, ADJUST KNOB | 2 шт. | — | |
|
| 39 | 64710-K0W-N00 | SPRING, ASSIST | 1 шт. | — | |
|
| 40 | 64711-K0W-N00 | LID, R. SCREEN HOLDER | 1 шт. | — | |
|
| 41 | 64712-K0W-N00 | LID, L. SCREEN HOLDER | 1 шт. | — | |
|
| 42 | 35300-K0W-NA1 | SW ASSY., MULTI | 1 шт. | — | |
|
| 43 | 93903-24380 | SCREW, TAPPING (4X12) | 2 шт. | — | |
|
