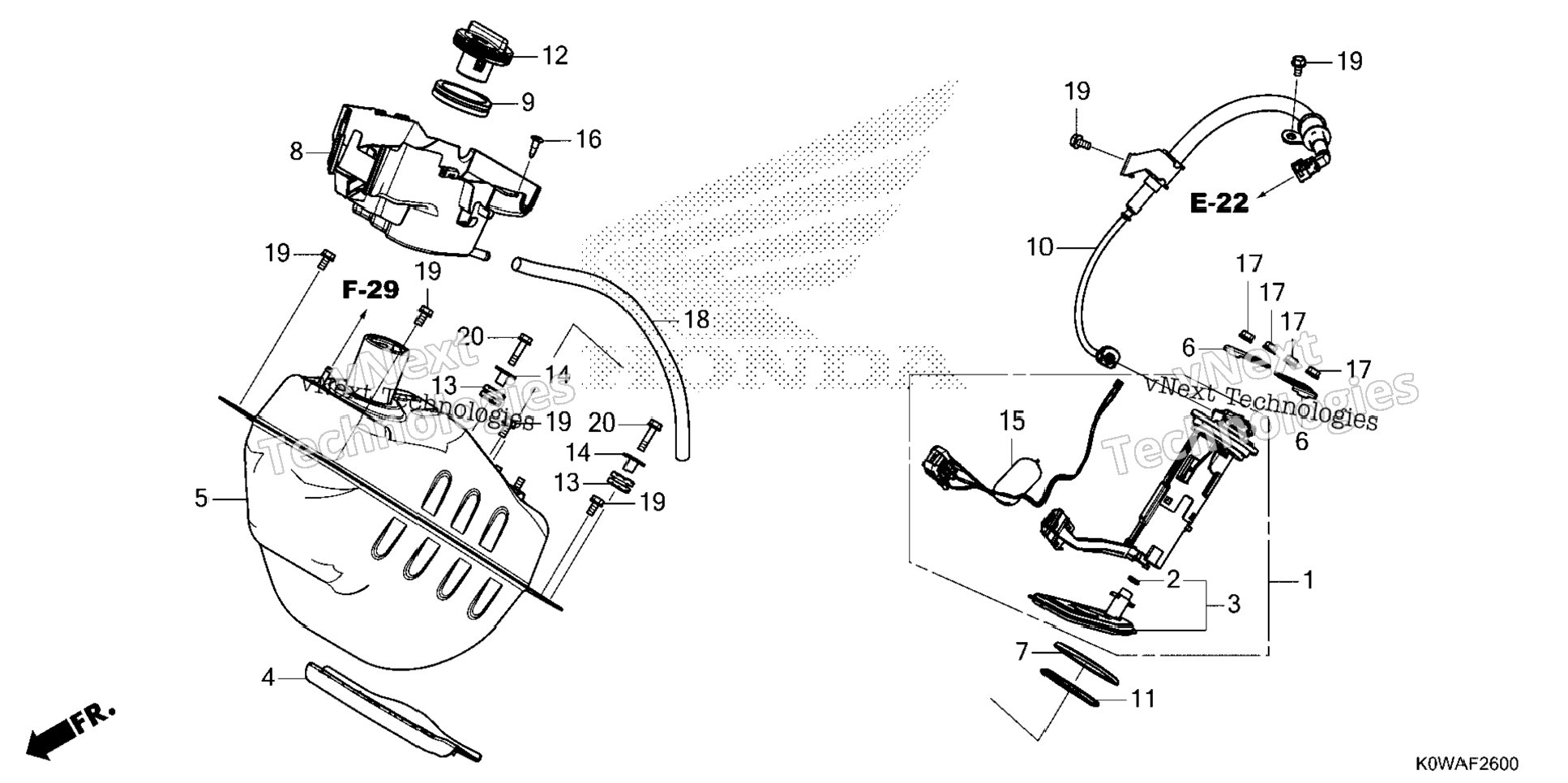

| 1 | 16700-K0W-TA1 | UNIT, FUEL PUMP | 1 шт. | — | |
|
| 2 | 16706-K0J-N01 | O-RING (P5) | 1 шт. | — | |
|
| 3 | 16707-K0W-NA1 | FILTER SET | 1 шт. | — | |
|
| 4 | 17506-K1Z-J10 | PLATE, FUEL TANK | 1 шт. | — | |
|
| 5 | 17510-K1Z-J10 | TANK, FUEL | 1 шт. | — | |
|
| 6 | 17517-GGL-J00 | RETAINER, FUEL PUMP | 2 шт. | — | |
|
| 7 | 17518-GHB-601 | DUST SEAL (OHTUKA POLY-TECH) | 1 шт. | — | |
|
| 8 | 17525-K0W-NA0 | TRAY, FUEL | 1 шт. | — | |
|
| 9 | 17527-K35-V00 | RUBBER, FUEL SEAL | 1 шт. | — | |
|
| 10 | 17570-K0W-NA1 | HOSE COMP, FUEL FEED | 1 шт. | — | |
|
| 11 | 17572-GHB-601 | O-RING, FUEL PUMP (ARAI) | 1 шт. | — | |
|
| 12 | 17620-K66-V02 | CAP, FUEL FILLER | 1 шт. | — | |
|
| 13 | 33705-KW7-900 | RUBBER A, TAILLIGHT MOUNTING | 2 шт. | — | |
|
| 14 | 33707-K04-930 | COLLAR, TAILLIGHT | 2 шт. | — | |
|
| 15 | 37800-K0W-NA1 | FUEL UNIT | 1 шт. | — | |
|
| 16 | 90116-SP0-003 | CLIP, BUMPER SEAL | 1 шт. | — | |
|
| 17 | 94050-06000 | NUT, FLANGE (6MM) | 4 шт. | — | |
|
| 18 | 95003-23008-60M | BULK HOSE, VINYL (8X12X8000) (Honda Code 4825345) (8X12X600) | 0 шт. | — | |
|
| 19 | 95701-06012-00 | BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12) | 6 шт. | — | |
|
| 20 | 95701-06025-00 | BOLT, FLANGE (6X25) | 2 шт. | — | |
|
