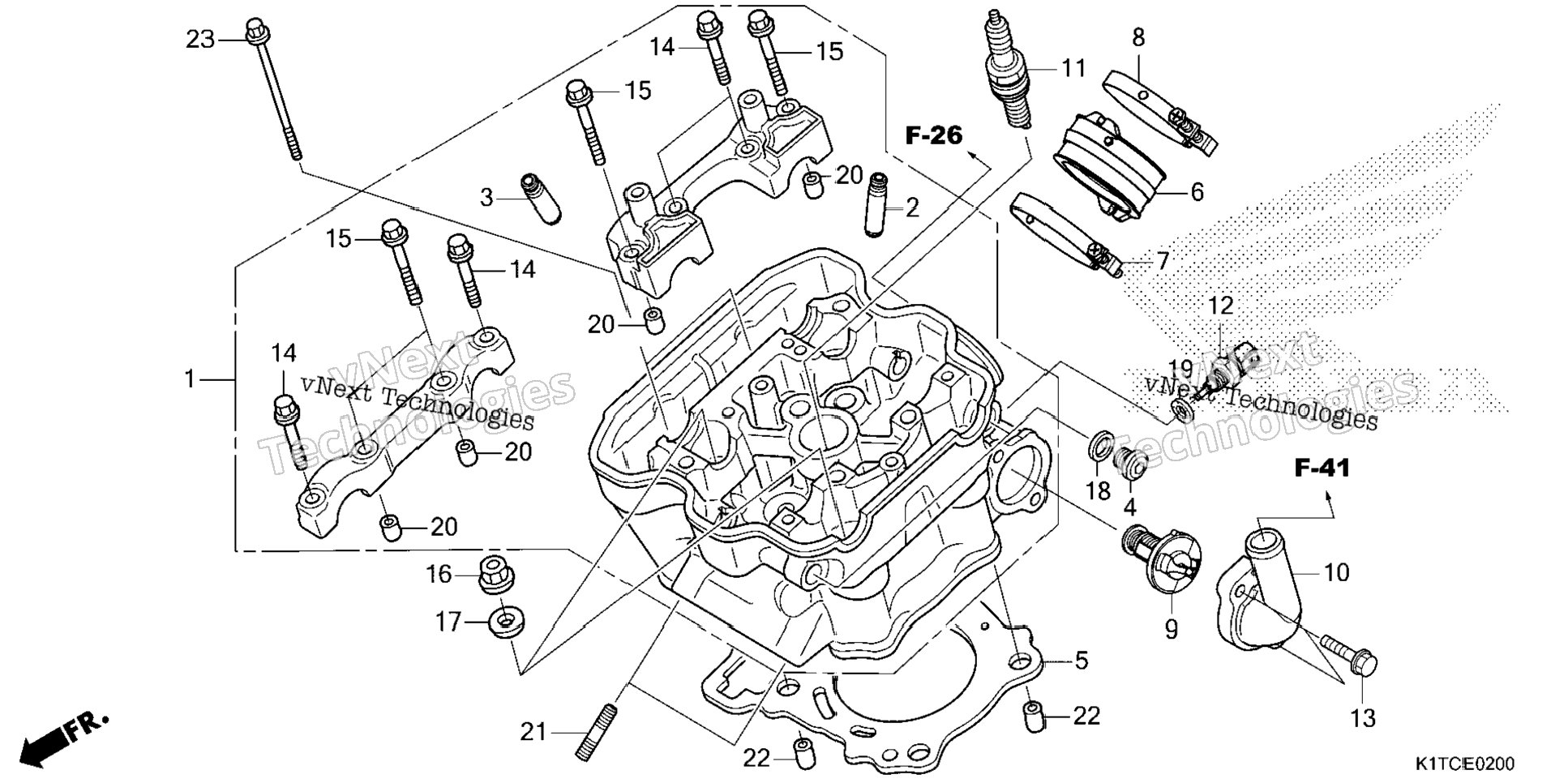

| 1 | 12010-K1T-EB0 | CYLINDER HEAD ASSY. | 1 шт. | — | |
|
| 2 | 12204-KYJ-305 | GUIDE, VALVE (OVER SIZE) (EXHAUST SIDE) | 2 шт. | — | |
|
| 3 | 12205-KYJ-305 | GUIDE, EX. VALVE (OVER SIZE) (INLET SIDE) | 2 шт. | — | |
|
| 4 | 12207-KYJ-900 | BOLT, SEALING (12MM) | 2 шт. | — | |
|
| 5 | 12251-K2Y-A01 | GASKET, CYL HD | 1 шт. | — | |
|
| 6 | 16211-K1T-E10 | INSULATOR, THROTTLE BODY | 1 шт. | — | |
|
| 7 | 16217-K1T-E10 | BAND, INSULATOR | 1 шт. | — | |
|
| 8 | 16218-K1T-E10 | BAND, INSULATOR | 1 шт. | — | |
|
| 9 | 19300-K0A-DB1 | THERMOSTAT | 1 шт. | — | |
|
| 10 | 19321-K0A-EB0 | COVER, THERMOSTAT | 1 шт. | — | |
|
| 11 | 31916-MEH-003 | SPARK PLUG (SIMR8A9) (NGK) | 1 шт. | — | |
|
| 12 | 37870-KRJ-901 | SENSOR ASSY., WATER TEMPERATURE | 1 шт. | — | |
|
| 13 | 90011-KYJ-900 | BOLT, FLANGE (6X22) (NSHF) | 2 шт. | — | |
|
| 14 | 90017-KYJ-900 | BOLT, FLANGE (6X32) | 4 шт. | — | |
|
| 15 | 90019-KYJ-900 | BOLT, FLANGE (6X39.5) | 4 шт. | — | |
|
| 16 | 90204-K87-A30 | NUT, FLANGE (10MM) | 4 шт. | — | |
|
| 17 | 90410-GCC-000 | WASHER (10MM) | 4 шт. | — | |
|
| 18 | 90418-KYJ-900 | WASHER (12.2X17X1.5) | 2 шт. | — | |
|
| 19 | 90454-MC7-000 | WASHER, SPECIAL (12MM) | 1 шт. | — | |
|
| 20 | 90702-KRM-840 | PIN, DOWEL (8X14) | 4 шт. | — | |
|
| 20 | 91105-KSP-910 | PIN, DOWEL (8X14) | 4 шт. | — | |
|
| 20 | 94301-08140 | PIN, DOWEL (8X14) (Honda Code 0069310) | 4 шт. | — | |
|
| 21 | 92900-08022-3E | BOLT, STUD (8X22) | 2 шт. | — | |
|
| 22 | 94301-12160 | PIN A, DOWEL (12X16) | 2 шт. | — | |
|
| 23 | 95701-06120-00 | BOLT, FLANGE (6X120) | 2 шт. | — | |
|
