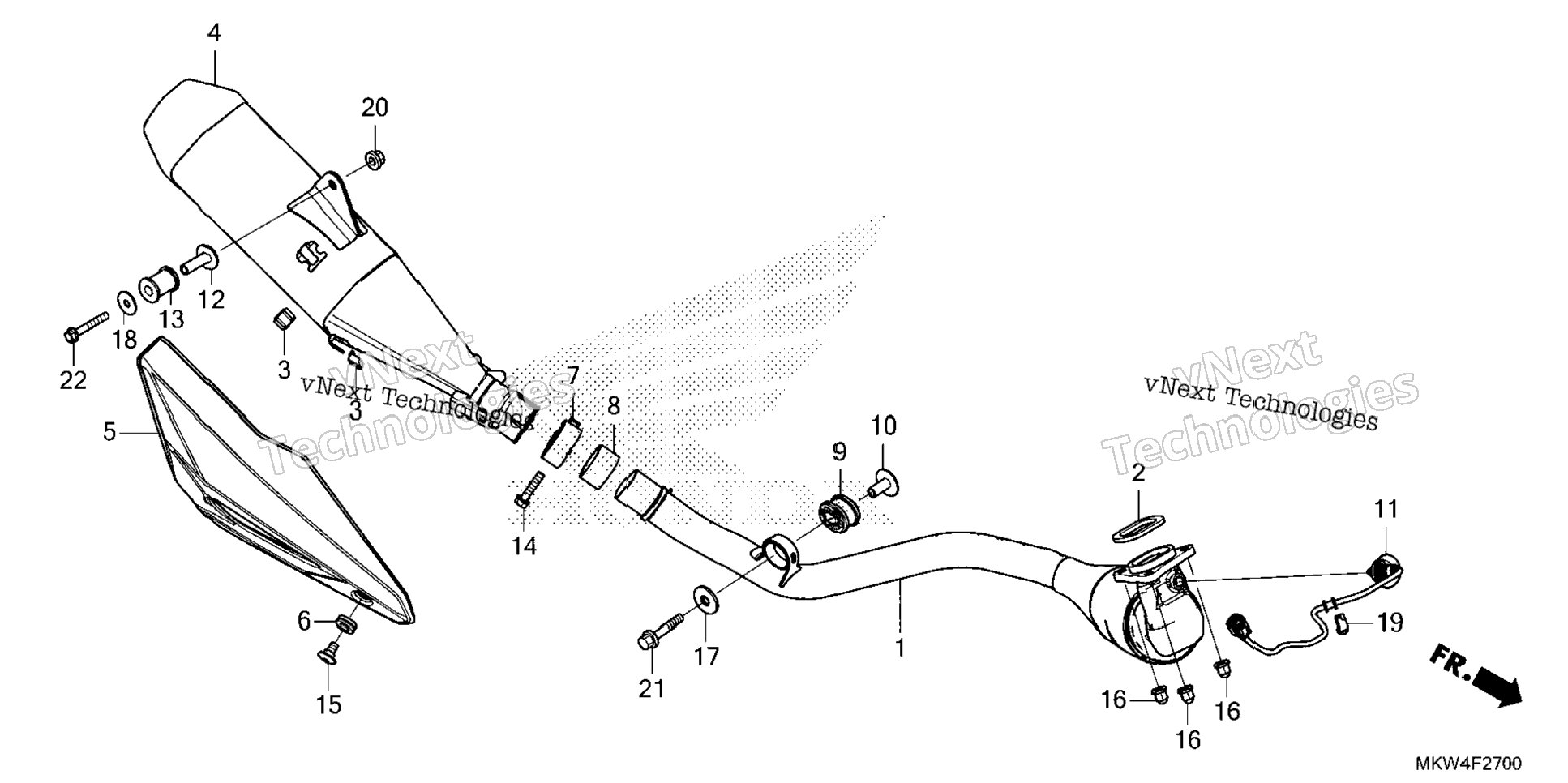

| 1 | 18150-MKW-D01 | PIPE, EX. | 1 шт. | — | |
|
| 2 | 18291-MGS-D31 | GASKET, EX. PIPE | 1 шт. | — | |
|
| 3 | 18293-MCA-A20 | RUBBER, PROTECTOR GASKET | 2 шт. | — | |
|
| 4 | 18310-MKW-D01 | MUFFLER | 1 шт. | — | |
|
| 5 | 18342-MKA-D81 | COVER, MUFFLER | 1 шт. | — | |
|
| 6 | 18345-MBT-610 | RUBBER, PROTECTOR MOUNTING | 1 шт. | — | |
|
| 7 | 18373-413-000 | BAND, R. FR. MUFFLER (L. RR.) (L.) | 1 шт. | — | |
|
| 8 | 18392-MK4-000 | GASKET, MUFFLER | 1 шт. | — | |
|
| 9 | 18422-MFJ-D10 | RUBBER, EX. PIPE MOUNTING | 1 шт. | — | |
|
| 10 | 18423-MGS-D30 | COLLAR, EX. PIPE MOUNTING | 1 шт. | — | |
|
| 11 | 36533-MKW-D01 | SENSOR, AIR FUEL RATIO | 1 шт. | — | |
|
| 12 | 50607-KK6-000 | COLLAR, MOUNTING RUBBER | 1 шт. | — | |
|
| 13 | 50608-KV0-000 | RUBBER, MUFFLER MOUNTING | 1 шт. | — | |
|
| 14 | 90103-KCM-620 | BOLT, FLANGE (8X35) | 1 шт. | — | |
|
| 15 | 90113-GFP-B00 | SCREW, PAN (6X12) | 1 шт. | — | |
|
| 16 | 90304-ME1-670 | NUT, CAP (8MM) | 3 шт. | — | |
|
| 17 | 90501-819-000 | WASHER (8MM) | 1 шт. | — | |
|
| 18 | 90534-MV4-000 | WASHER (8.5X28) | 1 шт. | — | |
|
| 19 | 90683-MGC-920 | CLIP, HARNESS | 1 шт. | — | |
|
| 20 | 94050-08080 | NUT, FLANGE (8MM) | 1 шт. | — | |
|
| 21 | 96300-08045-04 | BOLT, FLANGE (8X45) | 1 шт. | — | |
|
| 22 | 96300-08050-04 | BOLT, FLANGE (8X50) | 1 шт. | — | |
|
