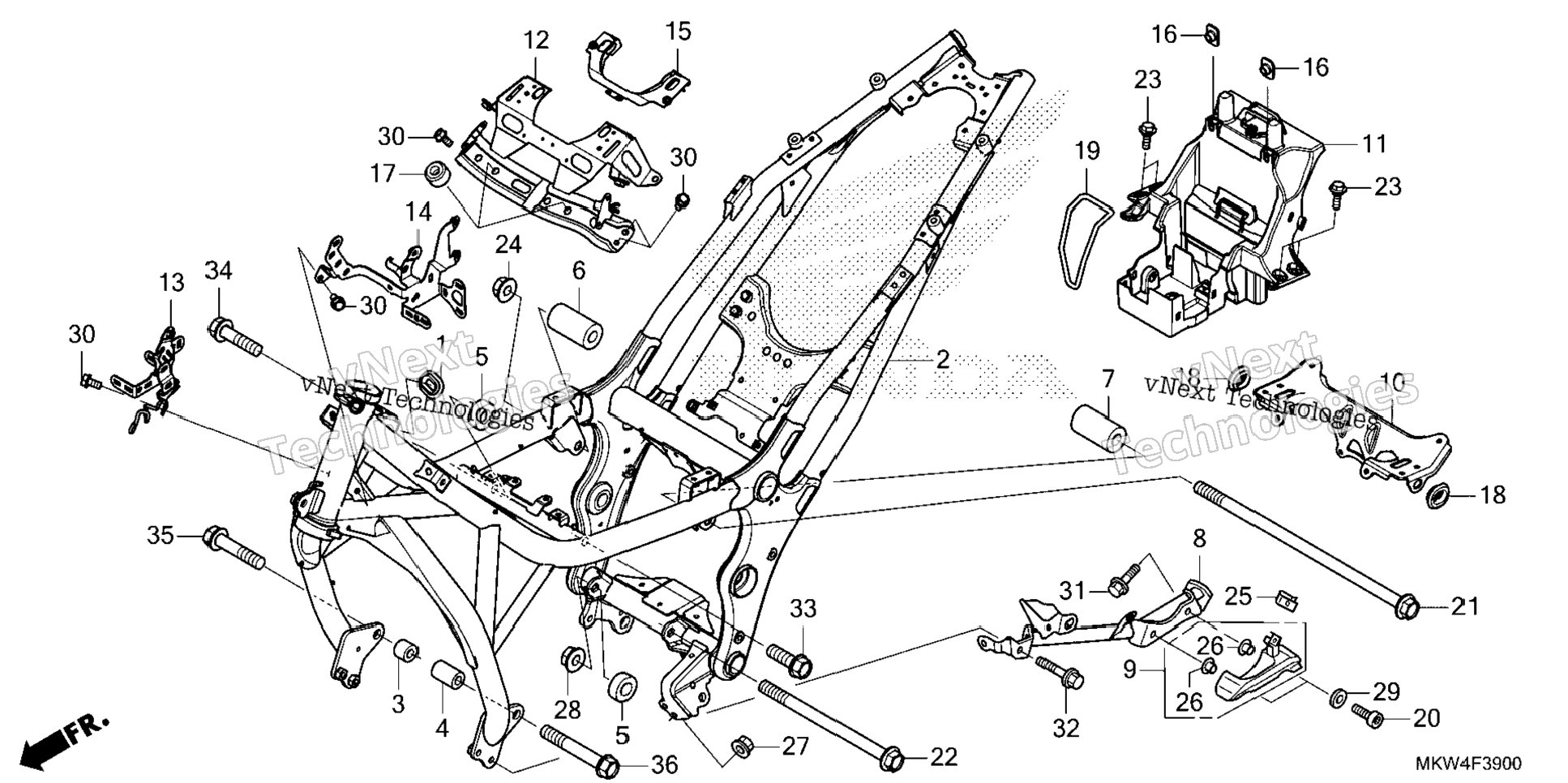

| 1 | 17247-303-000 | GROMMET A, AIR CLEANER HOUSING | 1 шт. | — | |
|
| 2 | 50100-MKW-D00ZA | FRAME *NHA86M* (MAT BALLISTIC BLACK) | 1 шт. | — | |
|
| 3 | 50191-MGS-D10 | COLLAR A, R. ENGINE HANGER | 1 шт. | — | |
|
| 4 | 50192-MGS-D10 | COLLAR A, L. ENGINE HANGER | 1 шт. | — | |
|
| 5 | 50193-MGS-D10 | COLLAR B, ENGINE HANGER | 2 шт. | — | |
|
| 6 | 50194-MKT-D00 | COLLAR C, R. ENGINE HANGER | 1 шт. | — | |
|
| 7 | 50195-MKT-D00 | COLLAR C, L. ENGINE HANGER | 1 шт. | — | |
|
| 8 | 50196-MKW-D00 | PIPE, GUARD | 1 шт. | — | |
|
| 9 | 50197-MGS-D50 | COVER, MOTOR | 1 шт. | — | |
|
| 10 | 50230-MKW-D00 | STAY, FR. TANK | 1 шт. | — | |
|
| 11 | 50234-MKW-D00 | BRACKET, CENTER CROSS | 1 шт. | — | |
|
| 12 | 50236-MKW-D00 | PLATE B, CROSS | 1 шт. | — | |
|
| 13 | 50237-MKW-D00 | STAY, R. AIR CLEANER HOUSING | 1 шт. | — | |
|
| 14 | 50238-MKW-D00 | STAY, L. AIR CLEANER HOUSING | 1 шт. | — | |
|
| 15 | 50239-MGS-D30 | RUBBER, CROSS PLATE | 1 шт. | — | |
|
| 16 | 61304-HB3-003 | NUT, SPECIAL (6MM) | 2 шт. | — | |
|
| 17 | 77206-GF0-000 | RUBBER, SEAT SETTING | 2 шт. | — | |
|
| 18 | 83551-GE2-000 | GROMMET, AIR CLEANER HOUSING | 2 шт. | — | |
|
| 19 | 83606-KWS-901 | BAND, TOOL | 1 шт. | — | |
|
| 20 | 90102-MN8-700 | BOLT, SOCKET (8X25) | 2 шт. | — | |
|
| 21 | 90103-MGS-D30 | BOLT, FLANGE (12X276) | 1 шт. | — | |
|
| 22 | 90104-MGS-D30 | BOLT, FLANGE (12X168) | 1 шт. | — | |
|
| 23 | 90106-MM9-000 | BOLT, FR. FENDER FIXING | 4 шт. | — | |
|
| 24 | 90364-MEJ-000 | NUT, FLANGE (12MM) | 1 шт. | — | |
|
| 25 | 90677-KAN-961 | NUT, CLIP (5MM) | 1 шт. | — | |
|
| 26 | 91501-MGS-D30 | COLLAR | 2 шт. | — | |
|
| 27 | 94050-08070 | NUT, FLANGE (8MM) | 2 шт. | — | |
|
| 28 | 94050-12000 | NUT, FLANGE (12MM) | 1 шт. | — | |
|
| 29 | 94101-08700 | WASHER, PLAIN (8MM) | 2 шт. | — | |
|
| 30 | 95701-06012-08 | BOLT, FLANGE (6X12) | 6 шт. | — | |
|
| 31 | 95701-08020-07 | BOLT, FLANGE (8X20) | 2 шт. | — | |
|
| 32 | 95701-08022-08 | BOLT, FLANGE (8X22) | 1 шт. | — | |
|
| 33 | 95701-12035-08 | BOLT, FLANGE (12X35) | 1 шт. | — | |
|
| 34 | 95701-12045-08 | BOLT, FLANGE (12X45) | 1 шт. | — | |
|
| 35 | 95701-12055-08 | BOLT, FLANGE (12X55) | 1 шт. | — | |
|
| 36 | 95701-12080-08 | BOLT, FLANGE (12X80) | 1 шт. | — | |
|
